4010-00-262-9179
Single Leg Chain Assembly
4010002629179 002629179 MILC18295
An assembly of chain(s) with attachment(s) in a continuous run from end to end. It may contain one or more intermediate and/or end attachments such as sliding or fixed ring(s), swivel(s), or hook(s), etc.. View more Single Leg Chain Assembly
May 2023
3
Marketplace 4010-00-262-9179
Request a Quotation from participating marketplace vendors
Related Documents 4010-00-262-9179 5+ Documents (More...)
4010-00-262-9179 5+ Documents ( More... ) https//www.nsnlookup.com /fsg-40/fsc-4010/us 4010-00-262-9179
Single Leg Chain Assembly 4010002629179 NE Updated Every Day 4010-00-262-9179 RQST Updated Every Day
-40/fsc-4030/us 4030-00-267-7076 Shackle 4030002677076 002677076,MILC18295 https//www.nsnlookup.com /
https//www.nsnlookup.com /fsg-40/fsc-4010/us 4010-00-262-9179 Single Leg Chain Assembly 4010002629179
-40/fsc-4030/us 4030-00-267-7076 Shackle 4030002677076 002677076,MILC18295 https//www.nsnlookup.com /
https//www.nsnlookup.com /fsg-40/fsc-4010/us 4010-00-262-9179 Single Leg Chain Assembly 4010002629179
Shackle 4030002923784002923784,MILC18295 Upgrade for $1 a day Upgrade your Account Upgrade 4030 https
//www.nsnlookup.com /fsg-40/fsc-4010/us 4010-00-262-9179 Single Leg Chain Assembly 4010002629179 day
/fsg-40/fsc-4010/us
Single Leg Chain Assembly 4010002629179 day Upgrade your Account Upgrade 4010-00-262-9179Single
Leg Chain Assembly4010002629179 002629179 MILC18295 . https//www.nsnlookup.com /fsg -40/fsc-4030/us
Restrictions 4010-00-262-9179
4010-00-262-9179 is a Single Leg Chain Assembly that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. The precious metals content of this item is unknown.
End Users 4010-00-262-9179
- US Army (A920)
- Effective Date:
- 1 May 2005
- Former MOE Rule:
- A183
- Supplementary Receivers:
- AZ
- Turkey (ZW01)
- Effective Date:
- 1 Dec 2005
Approved Sources 4010-00-262-9179
- Part Number
- Manufacturer
- Status
- MILC18295
- Manufacturer
- 81349 - Military Specifications (Active)
- Incomplete Standard
- Incomplete Standard
Datasheet 4010-00-262-9179
- Characteristic
- Specifications
- FIIG
- Specifications
- A082A0
- Attachment Style [AMXF]
- Stud Link All Attachments
- Breaking Strength [BZQQ]
- 130070.000 Pounds Nominal
- End Type [APTD]
- Plain 1St Intermediate Attachment
- Fabrication Method [AARN]
- Cast
- First End To First Fixed Intermediate Attachment Distance [AJYB]
- 48.000 Inches Nominal
- Material [MATT]
- Steel 1St Intermediate Attachment
- Nondefinitive Spec/Std Data [ZZZT]
- 1 Group
- Material Document And Classification [MDCL]
- Mil-C-18295 Mil Spec Single Material Response 1St Intermediate Attachment
- Overall Length [ABHP]
- 20.000 Feet Nominal

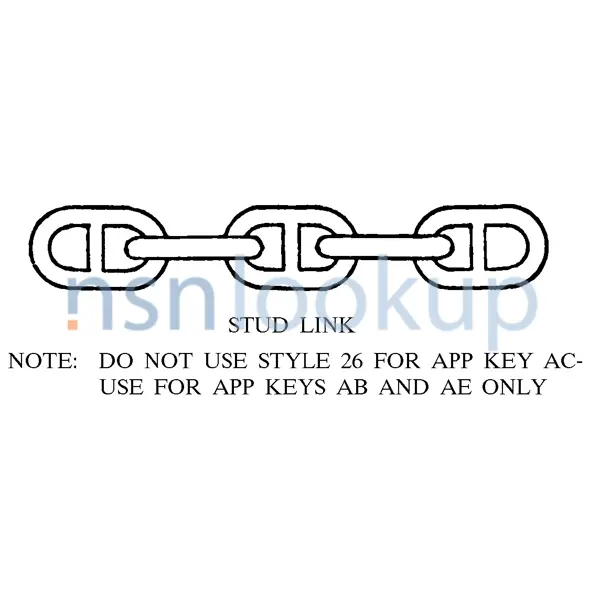

- Style Designator [STYL]
- Stud Link
DLA Procurement Analysis 4010-00-262-9179
Management Data 4010-00-262-9179
Army
- Materiel Category and Inventory Manager:
- J
- Ground Forces Support Materiel (DLA/GSA Items)
- Appropriation and Budget Activity:
- 2
- Stock Fund Secondary Items
- Management Inventory Segment:
- 2
- Non-Repairable Items(Exclusive of Insurance and Provisioning Items)
This code will be used to identify items, which are not reparable.
- Weapons System / End Item / Homogeneous Group:
- 00
- DLA/GSA Material
DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
- Accounting Requirements:
- X
- Expendable item.An item of Army property coded with an ARC of X in the AMDF. Expendable items require no formal accountability after issue from a stock record account.Commercial and fabricated items similar to items coded X in the AMDF are considered expendable items.
NATO Stock Numbers Related to 4010-00-262-9179
Freight Information 4010-00-262-9179
4010-00-262-9179 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 094050. A Sub NMFC of X. It has a NMFC Description of CHAINS NOI I/S PLAIN/GALVANIZED ETC. 4010-00-262-9179 is rated as class 50 when transported by Less-Than Truckload (LTL) freight. 4010-00-262-9179 is rated as class 50 when transported by Less-Than Carload (LCL) rail or ocean freight. It has a Uniform Freight Classification (UFC) number of 49180 which rates the freight between FCL and LCL. 4010-00-262-9179 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 576 for ocean manifesting and military sealift. 4010-00-262-9179 is not classified as a special type of cargo when transported by water. 4010-00-262-9179 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 4010-00-262-9179
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- --
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- --
- --
- Plated/Coated Item
- 2lb or less, one dimension 2" or less, other dimensions less than 24"
- Above 110G
- No Requirement
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- 1
- --
- --
- --
- --
- Any Suitable Process
- --
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- --
- --
- --
- --
- ASTM-D5118, Type CF, Class Domestic, Corrugated Fiberboard Box
- No special marking
- --
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- See Method of Preservation
- --
Contracting Technical Data File (CTDF) 4010-00-262-9179 October 2021
Criticality and Quality
- Critical Item Code:
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- N
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
