3950-01-522-3608
Chain Hoist
3950015223608 015223608 75113CA7-1175
A device designed to be suspended above deck, floor or ground level having one or more revolving whelped wheels over which a chain is passed for the purpose of raising or lowering a load. May be suspended so as to travel on a fixed track. View more Chain Hoist
September 2023
5
Marketplace 3950-01-522-3608
Request a Quotation from participating marketplace vendors
Related Documents 3950-01-522-3608 1+ Documents (More...)
Updated Every Day 3950-01-522-3608 RQST NE Related Documents 3950-01-522-3608 1+ Documents ( More...
) https//www.nsnlookup.com /fsg-39/fsc-3950/us 3950-01-522-3608 Chain Hoist 3950015223608015223608 75113CA7
Restrictions 3950-01-522-3608
3950-01-522-3608 is a Chain Hoist that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
End Users 3950-01-522-3608
- US Navy (N9BC)
- Effective Date:
- 1 May 2006
- Former MOE Rule:
- N9CD
- Supplementary Collaborators:
- HD
Approved Sources 3950-01-522-3608
- Part Number
- Manufacturer
- Status
- 75113CA7-1175
- Manufacturer
- 7ZL65 - Level 10 Industries, Inc. (Active)
- Primary Buy
- Primary Buy
- 75113CA7-1175
- 24047 - Cooper Industries Inc (Obsolete)
- Primary Buy
- Primary Buy
Datasheet 3950-01-522-3608
- Characteristic
- Specifications
- FIIG
- Specifications
- A02800
- Operation Method [APHE]
- Powered
- Prime Mover Type [AKDJ]
- Pneumatic Motor
- Prime Mover Quantity [AAXH]
- 2
- Cooling Method [BFMF]
- Self-Ventilated
- Power Drive Operating Pressure [ADQX]
- 90.0 Pounds Per Square Inch Gage
- Travel Rate Per Minute [ATWP]
- 16.0 Feet
- Hook Quantity [ATWT]
- 1
- Load Element Quantity Per Hook [ATWW]
- 1
- Chain Type [AJXY]
- Proof Coil
- Chain Material Diameter [AWRC]
- 0.312 Inches Nominal
- Suspension Mounting Method [AWEH]
- Trolley
- Trolley Suspension Style [AWEJ]

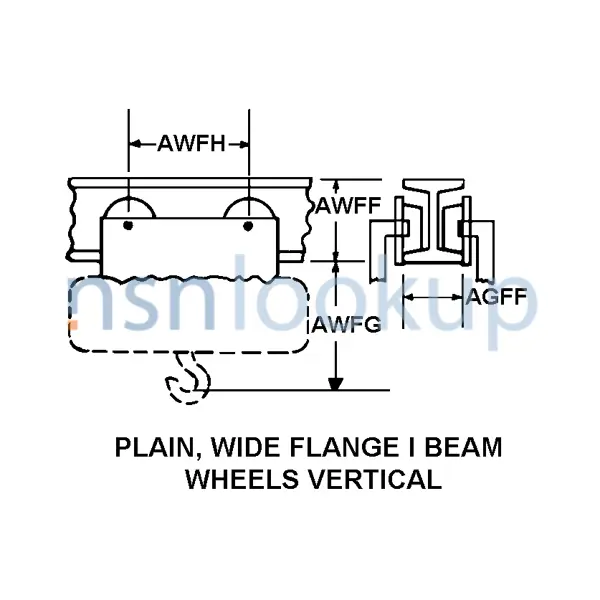

- Plain, Wide Flange I Beam Wheels Vertical
- Track Underside Distance To Load Hook Bearing Surface In Fully Raised Position [AWFG]
- 6.500 Inches Nominal
- Wheel Center To Center Distance [AWFH]
- 7.000 Inches Nominal
- Trolley Type [AWEK]
- Aabp
- Maximum Lift Height [AGBP]
- 8.0 Feet
- Maximum Load Rating [AYXK]
- 4000.0 Pounds
- Mounting Position [BBJX]
- Any Acceptable
- Special Features [FEAT]
- Lift: Eight Feet. Pc Length: 5. Handcrank Backup Provided In Case Of Loss Of Pneumatic Power. Guide Rollers Included (528213). Chain: Bag. Operation: Lowering, Traversing Forward And Traversing Reverse, Traversing Athwartships Port And Starboard Are Directed By A Six-Lever Pendent Control Station. Distance From Underside Of Drack To Lift Surface Of Hook Is 6.50 Inches. Type Traverse: Sprocket Drive. Traverse Speed: 40 Fpm On Level Track. Lift Speed: 16 Fpm. Air Consumption At 90 Psig At Rated Load And Speed: Hoisting 80 Cfm, Traversing 30 Cfm. Weight: 222 Lbs (Less Chain And Hook), Total Weight Is 250 Lbs.
- End Item Identification [AGAV]
- Monorail Hoist Pneumatic Powered Model: 75113Ca7
