3950-01-285-8026
Wire Rope Hoist
3950012858026 012858026 CEW2-24GT30D2
A device designed to be suspended above deck, floor or ground level having one or more revolving steel grooved drums around which wire rope is wound for the purpose of raising or lowering a load. May be suspended so as to travel on a fixed track. View more Wire Rope Hoist
May 2023
4
Marketplace 3950-01-285-8026
Request a Quotation from participating marketplace vendors
Related Documents 3950-01-285-8026 1+ Documents (More...)
BUY NE FedMall Updated Every Day 3950-01-285-8026 RQST NE Updated Every Day 3950-01-285-8026 RQST
Updated Every Day 3950-01-285-8026 RQST NE Related Documents 3950-01-285-8026 1+ Documents ( More...
Restrictions 3950-01-285-8026
3950-01-285-8026 is a Wire Rope Hoist that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
End Users 3950-01-285-8026
- US Navy (N9BC)
- Effective Date:
- 1 May 2006
- Former MOE Rule:
- N9CD
- Supplementary Collaborators:
- HD
Approved Sources 3950-01-285-8026
- Part Number
- Manufacturer
- Status
- CEW2-24GT30D2
- Manufacturer
- 08722 - Duff-Norton Co Inc (Obsolete)
- Original Design
- Original Design
Datasheet 3950-01-285-8026
- Characteristic
- Specifications
- FIIG
- Specifications
- A02800
- Braking Method [ATWS]
- Electric
- Furnished Items And Quantity [ACSY]
- 1 Wire Rope
- Hook Quantity [ATWT]
- 2
- Maximum Lift Height [AGBP]
- 24.0 Feet
- Maximum Load Rating [AYXK]
- 4000.0 Pounds
- Mounting Position [BBJX]
- Parallel
- Operation Method [APHE]
- Power
- Load Limit At Selected Speed And Drum Location [ATWN]
- 4000.0 Pounds Single Speed First Drum
- Prime Mover Quantity [AAXH]
- 1
- Prime Mover Type [AKDJ]
- Electric Motor
- Travel Rate Per Minute [ATWP]
- 30.0 Feet
- Trolley Suspension Style [AWEJ]

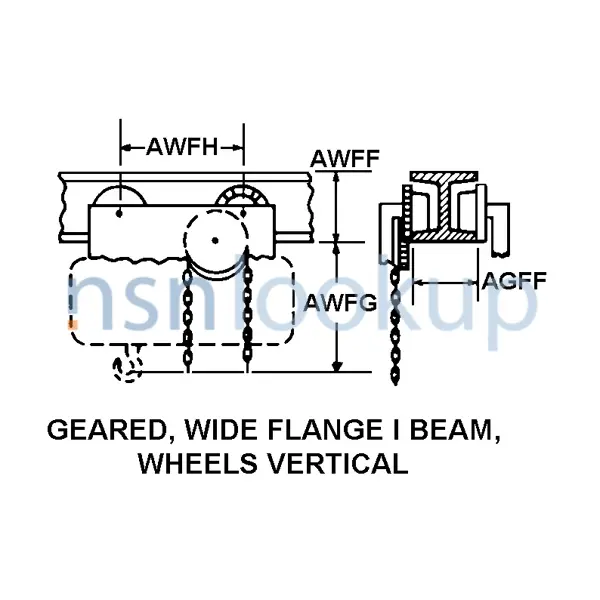

- Geared, Wide Flange I Beam, Wheels Vertical
- Trolley Type [AWEK]
- Motor Driven
- Suspension Mounting Method [AWEH]
- Trolley
DLA Procurement Analysis 3950-01-285-8026
Management Data 3950-01-285-8026
Navy
- Cognizance:
- 3B
Similar Supply Items to 3950-01-285-8026
Freight Information 3950-01-285-8026
3950-01-285-8026 has freight characteristics managed by the Food and Drug Administration (FDA).It has a National Motor Freight Classification (NMFC) of 117040. A Sub NMFC of Z. It has a NMFC Description of CHAIN/PULLEY HOISTS/BLOCKS. 3950-01-285-8026 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 59830 which rates the freight between FCL and LCL. 3950-01-285-8026 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 793 for ocean manifesting and military sealift. 3950-01-285-8026 is not classified as a special type of cargo when transported by water. 3950-01-285-8026 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Contracting Technical Data File (CTDF) 3950-01-285-8026 October 2021
Criticality and Quality
- Critical Item Code:
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- N
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- N
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
