3940-01-467-6495
Tackle Block
3940014676495 014676495 MP10206-1
A mechanical device, consisting of a pulley(s) or sheave(s) encased in a shell or frame which may be provided with a means such as a hook, eye, strap, screw, etc., by which it may be attached to an object. It is used to change direction of a running rope and/or to gain a mechanical advantage. View more Tackle Block
January 2023
1
Marketplace 3940-01-467-6495
Request a Quotation from participating marketplace vendors
Related Documents 3940-01-467-6495 1+ Documents (More...)
3940-01-467-6495 1+ Documents ( More... ) https//www.nsnlookup.com /fsg-39/fsc-3940/us 3940-01-467-6495
3940-01-467-6495 RQST NE Related Documents 3940-01-467-6495 1+ Documents ( More... ) https//www.nsnlookup.com
Restrictions 3940-01-467-6495
3940-01-467-6495 is a Tackle Block that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
Import and Export 3940-01-467-6495
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 3940-01-467-6495
- US Air Force (FBB5)
- Effective Date:
- 1 Aug 2002
- Former MOE Rule:
- FBB4
Approved Sources 3940-01-467-6495
- Part Number
- Manufacturer
- Status
- MP10206-1
- Manufacturer
- S5686 - Israel Military Industries Ltd (Replaced)
- Original Design
- Original Design
- MP10206-1
- 1919A - Imi Systems Ltd (Active)
- Advisory Reference
- Advisory Reference
Datasheet 3940-01-467-6495
- Characteristic
- Specifications
- FIIG
- Specifications
- A12900

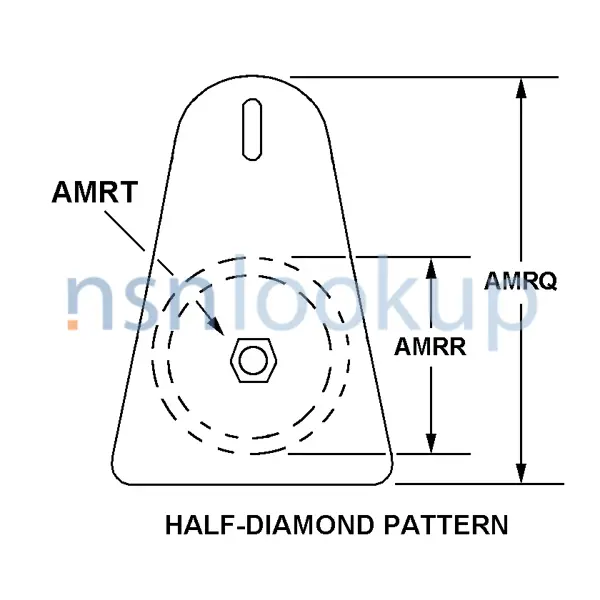

- Style Designator [STYL]
- Half-Diamond Pattern
- Shell Length [AMRQ]
- 13.030 Inches Nominal
- Sheave Outside Diameter [AMRR]
- 11.810 Inches Nominal
- Center Pin Diameter [AMRT]
- 2.380 Inches Nominal
- Block Type [AMCL]
- Snatch
- Sheave Quantity [AMCQ]
- 1
- Bearing Type [ACSK]
- Plain
- Tackle Accommodated Type [AMCT]
- Wire Rope
- Tackle Locking Device [AMXD]
- Not Included
Management Data 3940-01-467-6495
- Effective Date
- Organization
- Unit of Issue
- Unit Price
- Qty Unit Pack
- Unit of Issue
- May 2010
- Department of the Air Force (DF)
- EA
- Subscribe
- 1
- EA
Similar Supply Items to 3940-01-467-6495
Freight Information 3940-01-467-6495
3940-01-467-6495 has freight characteristics.. 3940-01-467-6495 has a variance between NMFC and UFC when transported by rail and the description should be consulted.
