3940-01-421-6962
Tackle Block
3940014216962 014216962 12364523 686071044QR1
A mechanical device, consisting of a pulley(s) or sheave(s) encased in a shell or frame which may be provided with a means such as a hook, eye, strap, screw, etc., by which it may be attached to an object. It is used to change direction of a running rope and/or to gain a mechanical advantage. View more Tackle Block
November 2023
7
Marketplace 3940-01-421-6962
Request a Quotation from participating marketplace vendors
Related Documents 3940-01-421-6962 5+ Documents (More...)
(Identification) 1/3 NSN 3940-01-421-6962 (Identification) 2/3 NSN 3940-01-421-6962 (Identification
3940-01-421-6962 5+ Documents ( More... ) https//www.nsnlookup.com /fsg-39/fsc-3940/us 3940-01-421-6962
Tackle Block 3940014216962 014216962,12364523 Day 3940-01-421-6962 RQST NE Related Documents https
www.nsnlookup.com /fsg-39/fsc-3940 Blocks, Tackle, Rigging, and Slings from United States (US) 1961 3940-01-421-6962
Tackle Block 3940014216962 014216962,12364523 Day 3940-01-421-6962 RQST NE Related Documents https
Bottle 8125015020900 015020900 Tracked Recovery Vehicle 2350015107975 2459, 5120-00-526-6044, 3940-01-421-6962
Restrictions 3940-01-421-6962
3940-01-421-6962 is a Tackle Block that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
Import and Export 3940-01-421-6962
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 3940-01-421-6962
- US Army (A920)
- Effective Date:
- 1 Mar 2006
- Former MOE Rule:
- A186
- Supplementary Receivers:
- AZ
- US Marine Corps (MC47)
- Effective Date:
- 1 Mar 2006
- Former MOE Rule:
- MC10
- US Navy (N9BZ)
- Effective Date:
- 1 Dec 2013
- Supplementary Collaborators:
- GG
- Australia (ZA01)
- Effective Date:
- 1 Nov 2005
Approved Sources 3940-01-421-6962
- Part Number
- Manufacturer
- Status
- 12364523
- Manufacturer
- 19207 - U S Army Tank Automotive Command (Active)
- Source Control
- Source Control
- 12364523
- 06085 - Bae Systems Land & Armaments L.P. (Active)
- Primary Buy
- Primary Buy
- 12364523
- 076M6 - Bae Systems Land & Armaments L.P. (Active)
- Secondary Buy
- Secondary Buy
- 686071044QR1
- 99557 - Gunnebo Johnson Corporation (Obsolete)
- Canceled/Obsolete
- Canceled/Obsolete
Datasheet 3940-01-421-6962
- Characteristic
- Specifications
- FIIG
- Specifications
- A12900
- Style Designator [STYL]
- Half-Strap Pattern
- Sheave Outside Diameter [AMRR]
- 32.800 Inches Nominal
- Center Pin Diameter [AMRT]
- 13.000 Inches Nominal
- Block Type [AMCL]
- Snatch
- Locking Style [AMCN]
- Drop Link
- Material And Location [ANNQ]
- Steel Overall
- Sheave Quantity [AMCQ]
- 1
- Tackle Accommodated Type [AMCT]
- Wire Rope
- Maximum Tackle Diameter Accommodated [AMXC]
- 2.000 Inches
- Tackle Locking Device [AMXD]
- Not Included
- Antitoppling Device [AMDC]
- Not Included

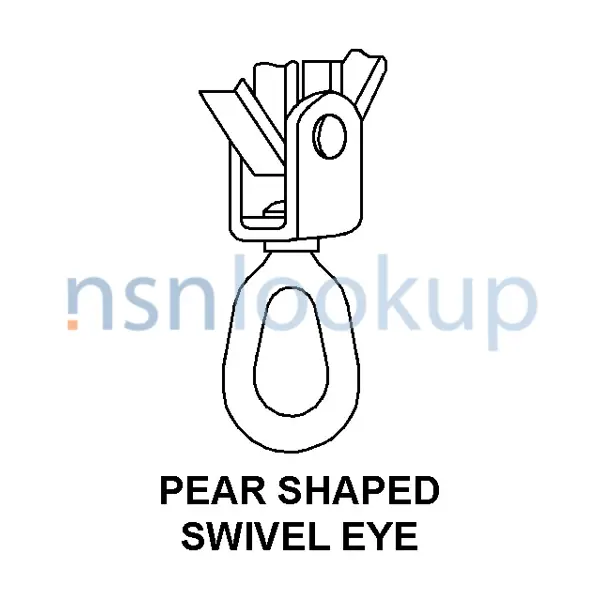

- Attachment Style [AMXF]
- Pear Shaped Swivel Eye
- Maximum Load Rating [AGCS]
- 280000.0 Pounds
Weapon Systems (WSDC) 3940-01-421-6962
DLA Procurement Analysis 3940-01-421-6962
- Last Stock Position:
- 2 In Stock
- DLA Administrative Lead Time:
- Subscribe
- DLA Production Lead Time:
- Subscribe
Management Data 3940-01-421-6962
- Effective Date
- Organization
- Unit of Issue
- Unit Price
- Qty Unit Pack
- Unit of Issue
- Jul 2023
- Department of the Army (DA)
- EA
- Subscribe
- 1
- EA
- Oct 2022
- Department of the Navy (DN)
- EA
- Subscribe
- 1
- EA
- Oct 2021
- Department of the Army (DA)
- EA
- Subscribe
- 1
- EA
- Oct 2020
- Defense Logistics Agency (DS)
- EA
- Subscribe
- 1
- EA
- Dec 2019
- Department of the Army (DA)
- EA
- Subscribe
- 1
- EA
Army
- Materiel Category and Inventory Manager:
- J
- Ground Forces Support Materiel (DLA/GSA Items)
- Appropriation and Budget Activity:
- 2
- Stock Fund Secondary Items
- Management Inventory Segment:
- 2
- Non-Repairable Items(Exclusive of Insurance and Provisioning Items)
This code will be used to identify items, which are not reparable.
- Weapons System / End Item / Homogeneous Group:
- 00
- DLA/GSA Material
DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
- Accounting Requirements:
- N
- Nonexpendable item.An item of Army property coded with an ARC of N in the AMDF.Nonexpendable items require property book accountability after issue from the stock record account.Commercial and fabricated items similar to items coded N in the AMDF are considered nonexpendable items.
Navy
- Cognizance:
- 9B
- Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
Marine Corps
- Stores Account:
- 1
- Stock Fund Account Item
- Combat Essentiality:
- 5
- Critical Repair Part to a Combat Essential End Item
- Echelon Management:
- B2
- Operational Test:
- No Special Procedures
- Physical Category:
- 1
- Bin
Similar Supply Items to 3940-01-421-6962
Freight Information 3940-01-421-6962
3940-01-421-6962 has freight characteristics managed by the Southwestern Power Administration.It has a National Motor Freight Classification (NMFC) of 127300. A Sub NMFC of X. It has a NMFC Description of PULLEY BLOCKS/TCKLE/SNATCH/FAIRLDRS. 3940-01-421-6962 is rated as class 60 when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 64560 which rates the freight between FCL and LCL. 3940-01-421-6962 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 793 for ocean manifesting and military sealift. 3940-01-421-6962 is not classified as a special type of cargo when transported by water. 3940-01-421-6962 is not a consolidation, but exceeds 84" in at least one dimension. It may not be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 3940-01-421-6962
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- --
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- --
- --
- Electrical Instrument
- 2lb or less, one dimension over 2", but less than 24"
- Above 110G
- No Requirement
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- 1
- --
- --
- --
- Physical Protection
- Any Suitable Process
- --
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- --
- --
- --
- --
- Any Suitable Container
- No special marking
- --
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- --
Procurement History 3940-01-421-6962 4 Records
Contracting Technical Data File (CTDF) 3940-01-421-6962 October 2021
Criticality and Quality
- Critical Item Code:
- X
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- F
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- N
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
