3940-01-383-4112
Hook Block Assembly
3940013834112 013834112 J30T14RTAB-3/4W R J-30T14RTAB-3/4WR
A mechanical device which may consist of a group of items such as side plate(s); spacer(s); bearing(s) nut(s); trunnion; shaft; pin(s), and the like. A hook and safety latch is always provided. This assembly attaches to the cable of most hoisting type devices to provide lifting and/or pulling capabilities. View more Hook Block Assembly
May 2023
1
Marketplace 3940-01-383-4112
Request a Quotation from participating marketplace vendors
Related Documents 3940-01-383-4112 1+ Documents (More...)
(Identification) 1/2 NSN 3940-01-383-4112 (Identification) 2/2 - - 1.
United States (US) 4. 3940-01-383-4112 Marketplace Restrictions Approved Sources Datasheet Management
Restrictions 3940-01-383-4112
3940-01-383-4112 is a Hook Block Assembly that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
Import and Export 3940-01-383-4112
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 3940-01-383-4112
- US Navy (N9BZ)
- Effective Date:
- 1 Mar 2006
- Former MOE Rule:
- N9ZD
- Supplementary Collaborators:
- HD
Approved Sources 3940-01-383-4112
- Part Number
- Manufacturer
- Status
- J-30T14RTAB-3/4WR
- Manufacturer
- 99557 - Gunnebo Johnson Corporation (Obsolete)
- Original Design
- Original Design
- J30T14RTAB-3/4W R
- D9182 - Zf Industrieantriebe Witten Gmbh (Active)
- Advisory Reference
- Advisory Reference
Datasheet 3940-01-383-4112
- Characteristic
- Specifications
- FIIG
- Specifications
- A12900

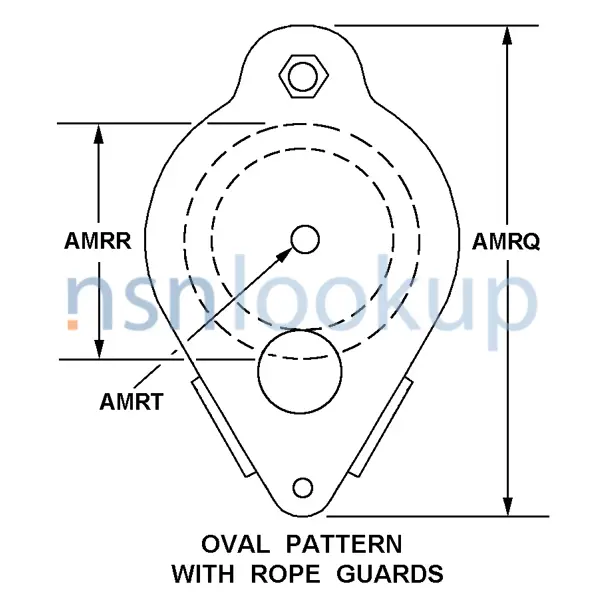

- Style Designator [STYL]
- Oval Pattern With Rope Guards
- Shell Length [AMRQ]
- 37.750 Inches Nominal
- Sheave Outside Diameter [AMRR]
- 14.000 Inches Nominal
- Center Pin Diameter [AMRT]
- 2.500 Inches Nominal
- Block Type [AMCL]
- Regular
- Material And Location [ANNQ]
- Steel Overall
- Sheave Quantity [AMCQ]
- 3
- Bearing Type [ACSK]
- Roller
- Tackle Accommodated Type [AMCT]
- Wire Rope
- Maximum Tackle Diameter Accommodated [AMXC]
- 0.750 Inches
- Tackle Locking Device [AMXD]
- Not Included
- Antitoppling Device [AMDC]
- Not Included
- Attachment Style [AMXF]
- Flatted Loose Safety Snap Hook
- Maximum Load Rating [AGCS]
- 60000.0 Pounds
DLA Procurement Analysis 3940-01-383-4112
Management Data 3940-01-383-4112
Navy
- Cognizance:
- 9B
- Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
NATO Stock Numbers Related to 3940-01-383-4112
Freight Information 3940-01-383-4112
3940-01-383-4112 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 127300. A Sub NMFC of X. It has a NMFC Description of PULLEY BLOCKS/TCKLE/SNATCH/FAIRLDRS. 3940-01-383-4112 is rated as class 60 when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 64560 which rates the freight between FCL and LCL. 3940-01-383-4112 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 885 for ocean manifesting and military sealift. 3940-01-383-4112 is not classified as a special type of cargo when transported by water. 3940-01-383-4112 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Contracting Technical Data File (CTDF) 3940-01-383-4112 October 2021
Criticality and Quality
- Critical Item Code:
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- T
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- N
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
