3940-01-283-2826
Block And Tackle
3940012832826 012832826 6139005-50 606437
A mechanical device consisting of one or more tackle blocks with lines, arranged for hoisting or pulling. View more Block And Tackle
June 2023
6
Marketplace 3940-01-283-2826
Request a Quotation from participating marketplace vendors
Related Documents 3940-01-283-2826 5+ Documents (More...)
BUY NE FedMall Updated Every Day 3940-01-283-2826 RQST NE Updated Every Day 3940-01-283-2826 RQST
Updated Every Day 3940-01-283-2826 RQST NE Related Documents 3940-01-283-2826 5+ Documents ( More...
JavaScript in your web browser . 5360-14-358-9643Compression Helical Spring5360143589643 143589643 606437
2 DAC 5 6139005-50 4K539 - Polytech Defense Spares Llc (Active) Secondary Buy RNCC 5 RNVC 2 DAC 5 606437
www.nsnlookup.com /fsg-25/fsc-2520/fr 2520-14-399-9985 Access Cover 2520143999985 143999985,606437 606437
how to enable JavaScript in your web browser . 5330-66-068-2034Plain Seal5330660682034 660682034 606437
how to enable JavaScript in your web browser . 5330-66-068-2034Plain Seal5330660682034 660682034 606437
/www.nsnlookup.com /fsg-53/fsc-5330/au 5330-66-068-2034 Plain Seal 5330660682034 660682034,606437 606437
/www.nsnlookup.com /fsg-53/fsc-5330/au 5330-66-068-2034 Plain Seal 5330660682034 660682034,606437 606437
JavaScript in your web browser . 5360-14-358-9643Compression Helical Spring5360143589643 143589643 606437
Restrictions 3940-01-283-2826
3940-01-283-2826 is a Block And Tackle that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
Import and Export 3940-01-283-2826
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 3940-01-283-2826
- US Air Force (FGGI)
- Effective Date:
- 1 Mar 2006
- Former MOE Rule:
- FGKZ
- US Navy (N9BZ)
- Effective Date:
- 1 Mar 2006
- Supplementary Collaborators:
- GTJN
Approved Sources 3940-01-283-2826
- Part Number
- Manufacturer
- Status
- 606437
- Manufacturer
- 75535 - The Crosby Group Llc (Active)
- Primary Buy
- Primary Buy
- 6139005-50
- 4K539 - Polytech Defense Spares Llc (Active)
- Secondary Buy
- Secondary Buy
- 606437
- 76257 - Crosby Group Inc The Mckissick Plant (Active)
- Canceled/Obsolete
- Canceled/Obsolete
Datasheet 3940-01-283-2826
- Characteristic
- Specifications
- FIIG
- Specifications
- A12900
- Tackle Block Quantity [AMCK]
- 2

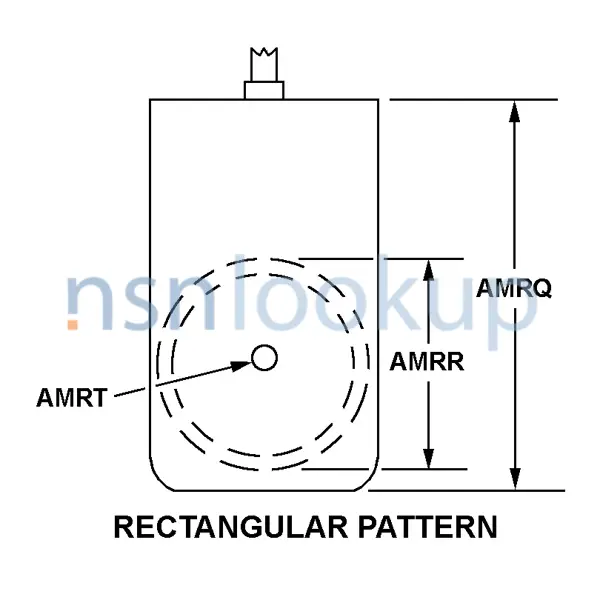

- Style Designator [STYL]
- Rectangular Pattern
- Shell Length [AMRQ]
- 8.000 Inches Nominal
- Sheave Outside Diameter [AMRR]
- 4.500 Inches Nominal
- Center Pin Diameter [AMRT]
- 0.625 Inches Nominal
- Block Type [AMCL]
- Regular
- Material And Location [ANNQ]
- Wood Sheave
- Tackle Accommodated Type [AMCT]
- Fibrous Rope
- Maximum Tackle Diameter Accommodated [AMXC]
- 1.500 Inches
- Maximum Load Rating [AGCS]
- 1000.0 Pounds
- Tackle Nominal Length [AMRL]
- 175.0 Feet
Weapon Systems (WSDC) 3940-01-283-2826
DLA Procurement Analysis 3940-01-283-2826
Management Data 3940-01-283-2826
Air Force
- Fund:
- SF
- Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point
- Budget:
- 9
- 57X4921.070 - General Support DIV - Air Force decentralized managed expense items (ERRC XB3, XF3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors
- Price Validation Code:
- N
- The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
The price has not been analyzed or reviewed for accuracy.
ZOP or Standard price challenges are permissible but must be supported with adequate justification. However, if coded for Local Purchase (LP) or Fabrication/Manufacture as indicated with an (LM) Acquisition Advice Code of “L” or “F”, then it must be evaluated locally where purchased or fabricated.
- Expendability
Recoverability
Repairability: - N
- Expendable. Condemn at User. Stock Fund (except Munitions).
Navy
- Cognizance:
- 9B
- Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
NATO Stock Numbers Related to 3940-01-283-2826
Freight Information 3940-01-283-2826
3940-01-283-2826 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 127300. A Sub NMFC of X. It has a NMFC Description of PULLEY BLOCKS/TCKLE/SNATCH/FAIRLDRS. 3940-01-283-2826 is rated as class 60 when transported by Less-Than Truckload (LTL) freight. 3940-01-283-2826 is rated as class 60 when transported by Less-Than Carload (LCL) rail or ocean freight. It has a Uniform Freight Classification (UFC) number of 64560 which rates the freight between FCL and LCL. 3940-01-283-2826 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 885 for ocean manifesting and military sealift. 3940-01-283-2826 is not classified as a special type of cargo when transported by water. 3940-01-283-2826 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
