3940-00-899-1352
Tackle Block
3940008991352 008991352 8383238
A mechanical device, consisting of a pulley(s) or sheave(s) encased in a shell or frame which may be provided with a means such as a hook, eye, strap, screw, etc., by which it may be attached to an object. It is used to change direction of a running rope and/or to gain a mechanical advantage. View more Tackle Block
Managed by United States
NSN Created on 1 Jan 1962
Data Last Changed
November 2023
November 2023
NATO Update Count
13
13
NATO Data Quality
Marketplace 3940-00-899-1352
Need Help?
Request a Quotation from participating marketplace vendors
Request a Quotation from participating marketplace vendors
Related Documents 3940-00-899-1352 4+ Documents (More...)

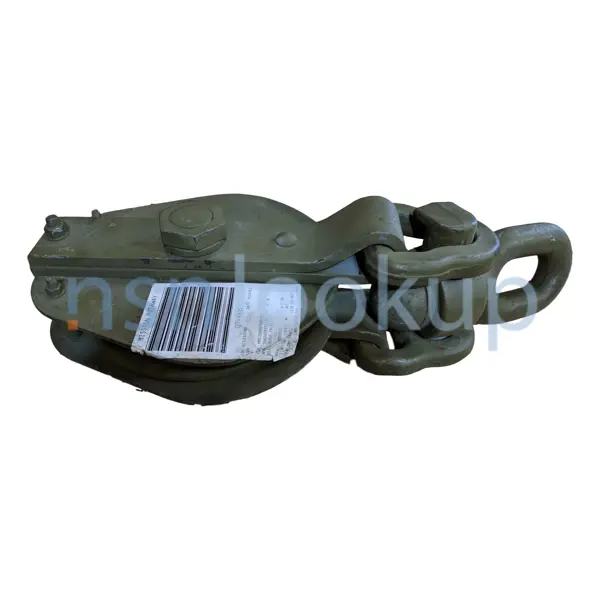

Photo 1/4 NSN 3940-00-899-1352 (Identification) 2/4 NSN 3940-00-899-1352 (Identification) 3/4 NSN
RQST NE Updated Every Day 3940-00-899-1352 RQST Updated Every Day 3940-00-899-1352 RQST NE Related
-00-899-1352 Tackle Block 3940008991352 008991352,8383238 Photo 1/4 NSN 3940-00-899-1352 (Identification
RQST NE Updated Every Day 3940-00-899-1352 RQST Updated Every Day 3940-00-899-1352 RQST NE Related
-00-899-1352 Tackle Block 3940008991352 008991352,8383238 Photo 1/4 NSN 3940-00-899-1352 (Identification
a day Upgrade your Account Upgrade 3940-00-489-8340Tackle Block3940004898340 004898340 8337021-1 8383238
https//www.nsnlookup.com /fsg-39/fsc-3940/us 3940 https//www.nsnlookup.com /fsg-39/fsc-3940/us 3940-00-899-1352
Tackle Block 3940008991352 008991352,8383238 3940-00-899-1352 (Identification) 4/4 - - - - 1. https
https//www.nsnlookup.com /fsg-39/fsc-3940/us 3940 https//www.nsnlookup.com /fsg-39/fsc-3940/us 3940-00-899-1352
Tackle Block 3940008991352 008991352,8383238 3940-00-899-1352 (Identification) 4/4 - - - - 1. https
0063099328337021 https//www.nsnlookup.com /fsg-39/fsc-3940 https//www.nsnlookup.com /fsg-39/fsc-3940/us 3940-00-899-1352
Tackle Block 3940008991352 008991352,8383238 004898340 a day Upgrade your Account Upgrade 3940-
00-489-8340Tackle Block3940004898340 004898340 8337021 : Y | DAC: 2 17 Jan 1968 3940-00-899-1352 https
Tackle Block 3940008991352 008991352,8383238 004898340 a day Upgrade your Account Upgrade 3940-
00-489-8340Tackle Block3940004898340 004898340 8337021 : Y | DAC: 2 17 Jan 1968 3940-00-899-1352 https
-00-573-8756 Hoisting Adapter 4S50051-101ARNCC: 3 | RNVC: 2 | MEDALS: Y | DAC: 2 17 Jan 1968 3940-00-899-1352
Restrictions 3940-00-899-1352
3940-00-899-1352 is a Tackle Block that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
Import and Export 3940-00-899-1352
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 3940-00-899-1352
- US Army (A920)
- Effective Date:
- 1 Mar 2006
- Former MOE Rule:
- A186
- Supplementary Receivers:
- AZBD
- US Air Force (FGGI)
- Effective Date:
- 1 Mar 2006
- Former MOE Rule:
- FGKZ
- US Marine Corps (MC47)
- Effective Date:
- 1 Mar 2006
- Former MOE Rule:
- MC10
- US Navy (N9BZ)
- Effective Date:
- 1 Dec 2013
- Supplementary Collaborators:
- GG
- Israel (YD01)
- Effective Date:
- 1 Jul 2016
- Republic of Korea (ZH01)
- Effective Date:
- 1 Apr 1991
- Denmark (ZS01)
- Effective Date:
- 1 Apr 1991
- Turkey (ZW01)
- Effective Date:
- 1 Nov 2005
Approved Sources 3940-00-899-1352
- Part Number
- Manufacturer
- Status
- 8383238
- Manufacturer
- 19207 - U S Army Tank Automotive Command (Active)
- Primary Buy
- Primary Buy
- 3940008991352
- A00AM - E.C.A Etablissement Central Des (Active)
- Canceled/Obsolete
- Canceled/Obsolete
Datasheet 3940-00-899-1352
- Characteristic
- Specifications
- FIIG
- Specifications
- A12900
- Antitoppling Device [AMDC]
- Not Included
- Attachment Style [AMXF]
- Oblong Swivel Eye And Shackle
- Bearing Type [ACSK]
- Plain
- Block Type [AMCL]
- Snatch
- Center Pin Diameter [AMRT]
- 1.500 Inches Nominal
- Maximum Load Rating [AGCS]
- 60000.0 Pounds
- Maximum Tackle Diameter Accommodated [AMXC]
- 0.750 Inches
- Locking Style [AMCN]
- Drop Link
- Material And Location [ANNQ]
- Bronze Bearing And Steel Center Pin And Steel Sheave And Steel Shell
- Sheave Outside Diameter [AMRR]
- 10.000 Inches Nominal
- Sheave Quantity [AMCQ]
- 1
- Shell Length [AMRQ]
- 12.750 Inches Nominal
- Special Features [FEAT]
- Olive Drab Color
- Style Designator [STYL]
- Round Pattern
- Surface Treatment And Location [ANNR]
- Enamel Overall
- Tackle Accommodated Type [AMCT]
- Wire Rope
- Tackle Locking Device [AMXD]
- Not Included
Weapon Systems (WSDC) 3940-00-899-1352
DLA Procurement Analysis 3940-00-899-1352
- Last Stock Position:
- 13 In Stock
- DLA Administrative Lead Time:
- Subscribe
- DLA Production Lead Time:
- Subscribe
Management Data 3940-00-899-1352
- Effective Date
- Organization
- Unit of Issue
- Unit Price
- Qty Unit Pack
- Unit of Issue
- Oct 2022
- US Marine Corps (DM)
- EA
- Subscribe
- 1
- EA
- Oct 2021
- Department of the Air Force (DF)
- EA
- Subscribe
- 1
- EA
- Oct 2020
- Department of the Air Force (DF)
- EA
- Subscribe
- 1
- EA
- Oct 2019
- Department of the Army (DA)
- EA
- Subscribe
- 1
- EA
- MOE
- USC
- Code
- Statement
- Order of Use
- Jump To Code
- Qty Per Assy
- UOM
- Technical Document
- Quantative Expression
- Code
- US Marine Corps (DM)
- M
- 0
- Reversal Of Phrase Code Z 3940-00-630-9932
- 0
Army
- Materiel Category and Inventory Manager:
- J
- Ground Forces Support Materiel (DLA/GSA Items)
- Appropriation and Budget Activity:
- 2
- Stock Fund Secondary Items
- Management Inventory Segment:
- 2
- Non-Repairable Items(Exclusive of Insurance and Provisioning Items)
This code will be used to identify items, which are not reparable.
- Weapons System / End Item / Homogeneous Group:
- 00
- DLA/GSA Material
DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
- Accounting Requirements:
- N
- Nonexpendable item.An item of Army property coded with an ARC of N in the AMDF.Nonexpendable items require property book accountability after issue from the stock record account.Commercial and fabricated items similar to items coded N in the AMDF are considered nonexpendable items.
Air Force
- Fund:
- SF
- Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point
- Budget:
- 9
- 57X4921.070 - General Support DIV - Air Force decentralized managed expense items (ERRC XB3, XF3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors
- Price Validation Code:
- N
- The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
The price has not been analyzed or reviewed for accuracy.
ZOP or Standard price challenges are permissible but must be supported with adequate justification. However, if coded for Local Purchase (LP) or Fabrication/Manufacture as indicated with an (LM) Acquisition Advice Code of “L” or “F”, then it must be evaluated locally where purchased or fabricated.
- Expendability
Recoverability
Repairability: - N
- Expendable. Condemn at User. Stock Fund (except Munitions).
Navy
- Cognizance:
- 9B
- Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
Marine Corps
- Stores Account:
- 1
- Stock Fund Account Item
- Combat Essentiality:
- 5
- Critical Repair Part to a Combat Essential End Item
- Echelon Management:
- B2
- Operational Test:
- No Special Procedures
NATO Stock Numbers Related to 3940-00-899-1352
3940-21-626-0148 3940-99-245-0936 3940-21-108-9027 3940-99-495-3571 3940-98-205-8577 3940-21-626-0168 3940-12-369-0779 3940-99-441-4429 3940-21-849-0618 3940-21-108-9029 3940-21-861-8332 3940-22-621-2792 3940-12-331-2392 3940-33-209-7978 3940-99-521-0661 3940-14-569-7640 3940-99-125-8677 3940-17-036-1453
Freight Information 3940-00-899-1352
3940-00-899-1352 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 127300. A Sub NMFC of X. It has a NMFC Description of PULLEY BLOCKS/TCKLE/SNATCH/FAIRLDRS. 3940-00-899-1352 is rated as class 60 when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 64560 which rates the freight between FCL and LCL. 3940-00-899-1352 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 793 for ocean manifesting and military sealift. 3940-00-899-1352 is not classified as a special type of cargo when transported by water. 3940-00-899-1352 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 3940-00-899-1352
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- --
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- --
- --
- Electrical Instrument
- 2lb or less, one dimension over 2", but less than 24"
- Above 110G
- No Requirement
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- 1
- --
- --
- --
- Physical Protection
- Any Suitable Process
- --
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- --
- --
- --
- --
- Any Suitable Container
- No special marking
- --
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- --
Contracting Technical Data File (CTDF) 3940-00-899-1352 October 2021
Criticality and Quality
- Critical Item Code:
- X
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- F
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
