3930-01-572-3334
Fork Lift Truck
3930015723334 015723334 520-OPC-30T-24
A self-propelled, wheeled vehicle, equipped with power driven front or side loading fork, type elevating unit(s). The elevating unit(s) may extend and retract to provide a reaching capability. It is primarily used for lifting, transporting, and stacking. For nonself-propelled, wheeled vehicles equipped with either manual or power driven elevating unit(s), see ELEVATOR, PORTABLE and TRUCK, LIFT, HAND. Excludes TRUCK, LIFT, PLATFORM. View more Fork Lift Truck
January 2023
3
Marketplace 3930-01-572-3334
Request a Quotation from participating marketplace vendors
Related Documents 3930-01-572-3334 1+ Documents (More...)
Request a Quotation from participating marketplace vendors Request Updated Every Day 3930-01-572-3334
RQST NE Updated Every Day 3930-01-572-3334 RQST Updated Every Day 3930-01-572-3334 RQST NE Related Documents
Restrictions 3930-01-572-3334
IUID Required
3930-01-572-3334 is a Fork Lift Truck that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
Import and Export 3930-01-572-3334
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 3930-01-572-3334
- US Air Force (FGG4)
- Effective Date:
- 1 Mar 2009
Approved Sources 3930-01-572-3334
- Part Number
- Manufacturer
- Status
- 520-OPC-30T-24
- Manufacturer
- 1CLU2 - Bt Raymond Inc. (Obsolete)
- Original Design
- Original Design
Datasheet 3930-01-572-3334
- Characteristic
- Specifications
- FIIG
- Specifications
- A085A0

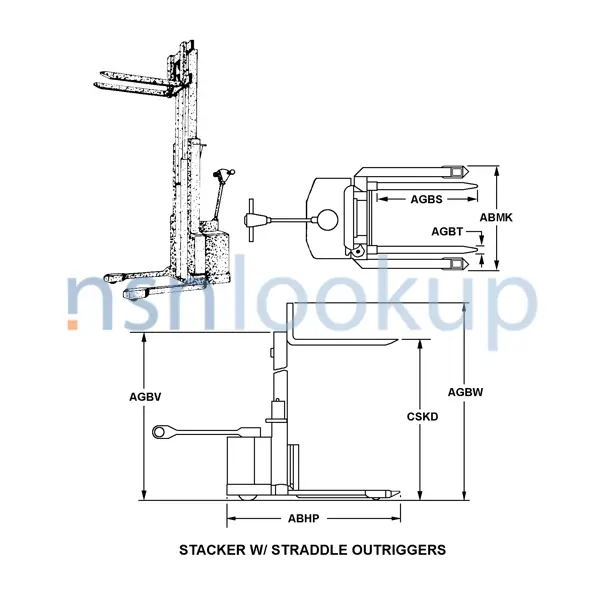

- Style Designator [STYL]
- Stacker W/Straddle Outriggers
- Overall Length [ABHP]
- 72.500 Inches Nominal
- Overall Width [ABMK]
- 40.000 Inches Nominal
- Fork Length [AGBS]
- 42.000 Inches Nominal
- Fork Width [AGBT]
- 4.000 Inches Nominal
- Overall Height With Forks In Lowest Position [AGBV]
- 161.000 Inches Nominal
- Overall Height With Forks In Highest Position [AGBW]
- 246.000 Inches Nominal
- Prime Mover Type [AKDJ]
- Electric Motor
- Battery Compartment Length [AGCA]
- 31.000 Inches Nominal
- Battery Compartment Width [AGCB]
- 13.000 Inches Nominal
- Battery Compartment Depth [AGCC]
- 30.880 Inches Nominal
- Vehicular Turn Radius [AGCQ]
- 72.000 Inches Nominal
- Maximum Load Rating [AYXK]
- 3000.000 Pounds
- Overall Underclearance [CHLD]
- 2.000 Inches Nominal
- Lift Mechanism Type [AGDC]
- Hydraulic
- Lift Actuation Method [AGDD]
- Powered
- Wheel Type And Quantity [CRRF]
- 2 Single Pneumatic Drive Wheel
- Wheel Type And Quantity [CRRF]
- 2 Single Pneumatic Load Wheel
- Transmission Type [AXJD]
- Automatic
- Special Features [FEAT]
- Operator Platform Is 28.5 In Long And 39 In Wide And Stays On The Same Level As The Forks; Has Flip Up Side Gates To Increase Operator Efficiency And Safety Located 40 In Up From Platform; Has A Safety Belt And Tether; Travel Speed Loaded 5 Mph Forks First And 5.5 Mph Tractor First, Unloaded 5.5 Mph Forks First And 6.0 Mph Tractor First; Power Unit 24 Volt Single Drive
- Fork Load Center Distance [AGCT]
- 24.000 Inches Nominal
- Minimum Load Carrying Surface Height [AGDE]
- 3.250 Inches
- Part Name Assigned By Controlling Agency [CXCY]
- 500 Series Orderpicker
Management Data 3930-01-572-3334
- Effective Date
- Organization
- Unit of Issue
- Unit Price
- Qty Unit Pack
- Unit of Issue
- Aug 2009
- Department of the Air Force (DF)
- EA
- Subscribe
- 1
- EA
- MOE
- USC
- Code
- Statement
- Order of Use
- Jump To Code
- Qty Per Assy
- UOM
- Technical Document
- Quantative Expression
- Code
- Department of the Air Force (DF)
- L
- 3
- Reversal Of Phrase Code S 3930-01-102-2185
- 3
- Department of the Air Force (DF)
- L
- J
- Interchangeable With 3930-01-575-6666
- J
- Department of the Air Force (DF)
- L
- R
- Refer To Serial-Vehicle
- SERIAL-VEHICLE
- R
Air Force
- Budget:
- V
- 57X3080 - Vehicular Equip (REMS) Vehicle Items and centrally funded, procured, and managed replenishment spares (ERRC XD-1, XD-2)
- Price Validation Code:
- N
- The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
The price has not been analyzed or reviewed for accuracy.
ZOP or Standard price challenges are permissible but must be supported with adequate justification. However, if coded for Local Purchase (LP) or Fabrication/Manufacture as indicated with an (LM) Acquisition Advice Code of “L” or “F”, then it must be evaluated locally where purchased or fabricated.
- Expendability
Recoverability
Repairability: - U
- Reparable. Condemn at Intermediate. AF Equipment Management System (AFEMS).
NATO Stock Numbers Related to 3930-01-572-3334
Freight Information 3930-01-572-3334
3930-01-572-3334 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 190225. A Sub NMFC of X. It has a NMFC Description of CARS,LIFT TRUCKS OR VEHICLES. 3930-01-572-3334 is rated as class 85 when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 93360 which rates the freight between FCL and LCL. 3930-01-572-3334 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 891 for ocean manifesting and military sealift. 3930-01-572-3334 is classified as a Flammable Liquid, UN Class 3, when transported by water. 3930-01-572-3334 is not a consolidation, but exceeds 84" in at least one dimension. It may not be compatible with a standard 72" Aircraft Cargo Door when transported by air.
