3930-01-139-3721
Fork Lift Truck
3930011393721 011393721 13501
A self-propelled, wheeled vehicle, equipped with power driven front or side loading fork, type elevating unit(s). The elevating unit(s) may extend and retract to provide a reaching capability. It is primarily used for lifting, transporting, and stacking. For nonself-propelled, wheeled vehicles equipped with either manual or power driven elevating unit(s), see ELEVATOR, PORTABLE and TRUCK, LIFT, HAND. Excludes TRUCK, LIFT, PLATFORM. View more Fork Lift Truck
January 2023
5
Marketplace 3930-01-139-3721
Request a Quotation from participating marketplace vendors
Related Documents 3930-01-139-3721 5+ Documents (More...)
Documents 3930-01-139-3721 5+ Documents ( More... ) https//www.nsnlookup.com /fsg-39/fsc-3930/us 3930
-01-139-3721 Fork Lift Truck 3930011393721 011393721,13501 13501 A self-propelled, wheeled vehicle, equipped
NC 13501-022 A circular-shaped item designed to https//www.nsnlookup.com /fsg-47/fsc-4720/fr 4720-14
NC 13501-125 An item designed to fit over a packing gland by mating with a surface of a second part
Fork Lift Truck 3930011393721 011393721,13501 RQST NE Updated Every Day 3930-01-139-3721 RQST Updated
Every Day 3930-01-139-3721 RQST NE Related Documents 3930-01-139-3721 5+ Documents ( More... ) https
NC 13501-022 A circular-shaped item designed to maintain predetermined distance between assembled parts
5365-99-723-6207 RQST NE Related Documents 5365-99-723-6207 5+ Documents ( More... ) https 13501NC 13501
NC 13501-123 A circular-shaped item designed to maintain predetermined distance between assembled parts
-125 An item designed to fit over a packing gland by mating with a surface of a second part NC 13501
Restrictions 3930-01-139-3721
IUID Required
3930-01-139-3721 is a Fork Lift Truck that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
Import and Export 3930-01-139-3721
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 3930-01-139-3721
- US Army (A202)
- Effective Date:
- 1 Apr 1991
Approved Sources 3930-01-139-3721
- Part Number
- Manufacturer
- Status
- 13501
- Manufacturer
- 07443 - Landoll Corporation (Replaced)
- Original Design
- Original Design
Datasheet 3930-01-139-3721
- Characteristic
- Specifications
- FIIG
- Specifications
- A085A0
- Style Designator [STYL]

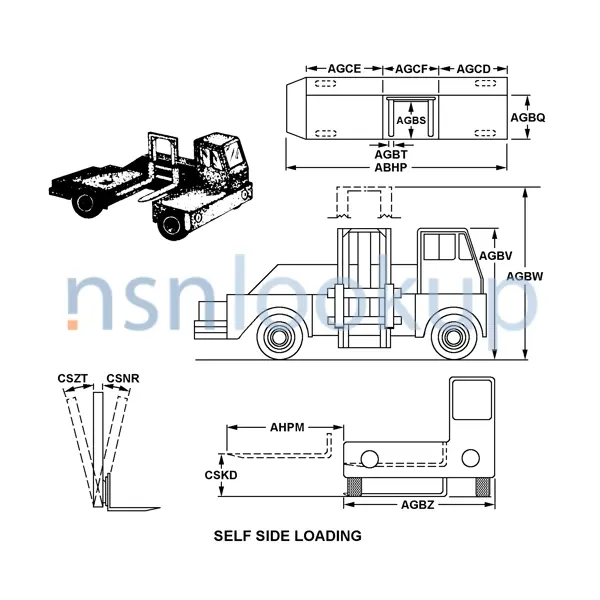

- Self Side Loading
- Prime Mover Type [AKDJ]
- Electric Motor
- Battery Compartment Length [AGCA]
- 37.375 Inches Nominal
- Battery Compartment Width [AGCB]
- 39.250 Inches Nominal
- Battery Compartment Depth [AGCC]
- 23.750 Inches Nominal
- Maximum Load Rating [AYXK]
- 6000.000 Pounds
- Fork/Platform Maximum Free Lift Height [AGDB]
- 52.000 Inches
- Lift Mechanism Type [AGDC]
- Hydraulic
- Lift Actuation Method [AGDD]
- Manual
- Prime Mover Manufacturer Code And Model Number [CSQX]
- 07443-50298
Management Data 3930-01-139-3721
- Effective Date
- Organization
- Unit of Issue
- Unit Price
- Qty Unit Pack
- Unit of Issue
- Apr 2012
- Department of the Army (DA)
- EA
- Subscribe
- 1
- EA
Army
- Materiel Category and Inventory Manager:
- K
- Tactical and Support Vehicles, Combat and Automotive Materiel
- Appropriation and Budget Activity:
- Q
- Other Support Equipment
- Management Inventory Segment:
- 1
- Repairable Items(Exclusive of Insurance and Provisioning Items)
This code will be used to identify serviceable or unserviceable items of a durable nature, which when unserviceable normally can be repaired economically by depots or lower echelons of maintenance.
- Weapons System / End Item / Homogeneous Group:
- WJ
- Line of Communication and Base Support Systems
Electric Materiel Handling Equipment
- Accounting Requirements:
- N
- Nonexpendable item.An item of Army property coded with an ARC of N in the AMDF.Nonexpendable items require property book accountability after issue from the stock record account.Commercial and fabricated items similar to items coded N in the AMDF are considered nonexpendable items.
Similar Supply Items to 3930-01-139-3721
Freight Information 3930-01-139-3721
3930-01-139-3721 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 190190. A Sub NMFC of X. It has a NMFC Description of VEHICLE MTR:AUTO FRT NOI TRACTORS. 3930-01-139-3721 is rated as class 150 when transported by Less-Than Truckload (LTL) freight. 3930-01-139-3721 is rated as class 85 when transported by Less-Than Carload (LCL) rail or ocean freight. It has a Uniform Freight Classification (UFC) number of 93340 which rates the freight between FCL and LCL. 3930-01-139-3721 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 891 for ocean manifesting and military sealift. 3930-01-139-3721 is not classified as a special type of cargo when transported by water. 3930-01-139-3721 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 3930-01-139-3721
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- Packaging Data does not meet current MIL-STD-2073-1E
- Storage Environment
- Freeze – Below 32 F (Below 0 C)
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- --
- --
- --
- Over 10lb
- Less than 85G
- Special Requirement
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- 1
- 0.1" H x 0.1" W x 0.1" L
- --
- --
- --
- Special Requirements
- 0.1" H x 0.1" W x 0.1" L
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- Special Requirement
- Special Requirements – see Specific Instructions or Drawings provided
- Special Requirements. See Specific Instructions or Drawings Provided
- Special Requirements. See Specific Instructions or Drawings Provided
- Special requirement – See specific instructions or drawings provided
- --
- Special Requirements – see Specific Instructions or Drawings provided
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- --
