3930-00-973-0301
Platform Lift Truck
3930009730301 009730301 MILT21862 PCH12E
A self-propelled, wheeled vehicle equipped with an elevating type platform. The platform elevating unit may be power-driven. Primarily designed to be used in conjunction with skid platforms (skids) for handling of skid loaded materials. Excludes TRUCK, LIFT, FORK. View more Platform Lift Truck
January 2023
6
Marketplace 3930-00-973-0301
Request a Quotation from participating marketplace vendors
Related Documents 3930-00-973-0301 1+ Documents (More...)
United States (US) 4. 3930-00-973-0301 Marketplace Restrictions Approved Sources Datasheet Management
Request a Quotation from participating marketplace vendors Request Updated Every Day 3930-00-973-0301
Restrictions 3930-00-973-0301
IUID Required
3930-00-973-0301 is a Platform Lift Truck that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. The precious metals content of this item is unknown.
Import and Export 3930-00-973-0301
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 3930-00-973-0301
- US Army (A202)
- Effective Date:
- 1 Apr 1991
- United States of America (ZZ)
Approved Sources 3930-00-973-0301
- Part Number
- Manufacturer
- Status
- PCH12E
- Manufacturer
- 02717 - American Pulley Co (Obsolete)
- Original Design
- Original Design
- MILT21862
- 81349 - Military Specifications (Active)
- Incomplete Standard
- Incomplete Standard

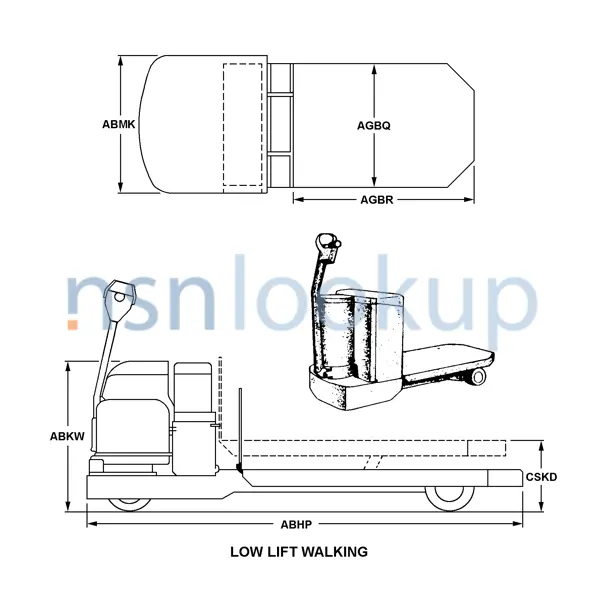

Datasheet 3930-00-973-0301
- Characteristic
- Specifications
- FIIG
- Specifications
- A085A0
- Battery Compartment Depth [AGCC]
- 31.375 Inches Nominal
- Battery Compartment Length [AGCA]
- 42.125 Inches Nominal
- Battery Compartment Width [AGCB]
- 18.625 Inches Nominal
- Features Provided [CBBL]
- Nontactical Electromagnetic Interference Suppression
- Hazardous Locations/Environmental Protection [ABFE]
- U.L. Type E
- Maximum Load Rating [AYXK]
- 12000.000 Pounds
- Minimum Load Carrying Surface Height [AGDE]
- 5.000 Inches
- Style Designator [STYL]
- Low Lift Walking
- Lift Actuation Method [AGDD]
- Powered
- Lift Height Of Forks [CSKD]
- 6.000 Nominal Centimeters
- Lift Mechanism Type [AGDC]
- Hydraulic
- Load Platform Width [AGBQ]
- 36.000 Inches Nominal
- Load Platform Length [AGBR]
- 84.000 Inches Nominal
- Prime Mover Manufacturer Code And Model Number [CSQX]
- 77052-Mg4001
- Prime Mover Type [AKDJ]
- Electric Motor
- Overall Height [ABKW]
- 65.000 Inches Nominal
- Overall Length [ABHP]
- 124.000 Inches Nominal
- Overall Width [ABMK]
- 42.500 Inches Nominal
- Transmission Type [AXJD]
- Automatic
- Vehicular Turn Radius [AGCQ]
- 120.000 Inches Nominal
- Wheel Type And Quantity [CRRF]
- 1 Single Solid Drive Wheel
- Wheel Type And Quantity [CRRF]
- 1 Single Solid Steerable Wheel
- Wheel Type And Quantity [CRRF]
- 4 Single Solid Load Wheel
- Steering Type [AGDS]
- Crabbing
Management Data 3930-00-973-0301
- Effective Date
- Organization
- Unit of Issue
- Unit Price
- Qty Unit Pack
- Unit of Issue
- May 2021
- Department of the Army (DA)
- EA
- Subscribe
- 1
- EA
- May 2004
- Department of the Army (DA)
- EA
- Subscribe
- 1
- EA
- MOE
- USC
- Code
- Statement
- Order of Use
- Jump To Code
- Qty Per Assy
- UOM
- Technical Document
- Quantative Expression
- Code
- Department of the Army (DA)
- L
- R
- Refer To Mel 0%
- MEL 0%
- R
Army
- Materiel Category and Inventory Manager:
- K
- Tactical and Support Vehicles, Combat and Automotive Materiel
- Appropriation and Budget Activity:
- 5
- O&MA Major End Items
- Management Inventory Segment:
- 1
- Repairable Items(Exclusive of Insurance and Provisioning Items)
This code will be used to identify serviceable or unserviceable items of a durable nature, which when unserviceable normally can be repaired economically by depots or lower echelons of maintenance.
- Weapons System / End Item / Homogeneous Group:
- PY
- Other Automotive Categories
Base Level Commercial Equipment(BCE)
- Accounting Requirements:
- N
- Nonexpendable item.An item of Army property coded with an ARC of N in the AMDF.Nonexpendable items require property book accountability after issue from the stock record account.Commercial and fabricated items similar to items coded N in the AMDF are considered nonexpendable items.
NATO Stock Numbers Related to 3930-00-973-0301
Freight Information 3930-00-973-0301
3930-00-973-0301 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 190190. A Sub NMFC of X. It has a NMFC Description of VEHICLE MTR:AUTO FRT NOI TRACTORS. 3930-00-973-0301 is rated as class 150 when transported by Less-Than Truckload (LTL) freight. 3930-00-973-0301 is rated as class 85 when transported by Less-Than Carload (LCL) rail or ocean freight. It has a Uniform Freight Classification (UFC) number of 93340 which rates the freight between FCL and LCL. 3930-00-973-0301 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 891 for ocean manifesting and military sealift. 3930-00-973-0301 is not classified as a special type of cargo when transported by water. 3930-00-973-0301 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
