3910-00-957-8694

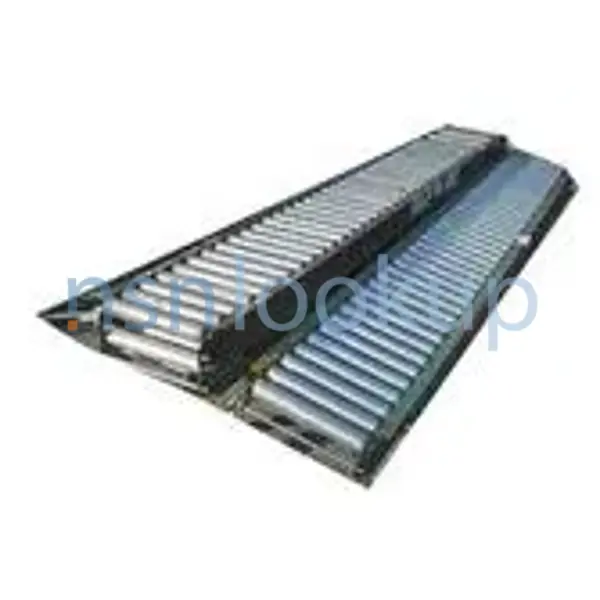

Gravity Roller Conveyor
3910009578694 009578694 MIL-C-11218 M11218IA12
A conveyor with frame mounted rollers which are free to revolve. The items to be handled move because of the force of gravity when the loading end is raised to a level higher than that of the unloading end. View more Gravity Roller Conveyor
November 2023
8
Marketplace 3910-00-957-8694
Request a Quotation from participating marketplace vendors
Related Documents 3910-00-957-8694 5+ Documents (More...)
MIL-C-11218 CONVEYOR,ROLLER,GRAVITY 3 EA NS Request Quotation Updated Every Day 3910-00-957-8694 RQST
NE Updated Every Day 3910-00-957-8694 RQST Updated Every Day 3910-00-957-8694 RQST NE Related Documents
MIL-C-11218 CONVEYOR,ROLLER,GRAVITY 3 EA NS Request Quotation Updated Every Day 3910-00-141-7233
RQST https//www.nsnlookup.com /fsg-39/fsc-3910/us 3910-00-957-8694 Gravity Roller Conveyor 3910009578694
MIL-C-11218 CONVEYOR,ROLLER,GRAVITY 3 EA NS Request Quotation FedMall Updated Every 15 Minutes 3910-00
MIL-C-11218 CONVEYOR,ROLLER,GRAVITY 3 EA NS Request Quotation FedMall Updated Every 15 Minutes 3910-00
MIL-C-11218 CONVEYOR,ROLLER,GRAVITY 3 EA NS Request Quotation Updated Every Day 3910-00-957-8691 RQST
CONVEYOR,ROLLER,GRAVITY 3 EA NS Request Quotation Updated Every Day 3910-00-957-8692 MIL-C-11218
CONVEYOR,ROLLER,GRAVITY 3 EA NS Request Quotation Updated Every Day 3910-00-957-8692 MIL-C-11218
Gravity Roller Conveyor 3910009578694 MIL-C-11218 CONVEYOR,ROLLER,GRAVITY 3 EA NS Request Quotation
Restrictions 3910-00-957-8694
3910-00-957-8694 is a Gravity Roller Conveyor that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. The precious metals content of this item is unknown.
Import and Export 3910-00-957-8694
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 3910-00-957-8694
- US Army (A920)
- Effective Date:
- 1 May 2006
- Former MOE Rule:
- A186
- Supplementary Receivers:
- CT
- US Air Force (FGGI)
- Effective Date:
- 1 May 2006
- Former MOE Rule:
- FGKZ
- US Navy (N9BZ)
- Effective Date:
- 1 May 2006
- Former MOE Rule:
- N9ZD
- Republic of Korea (ZH01)
- Effective Date:
- 1 Apr 1991
Approved Sources 3910-00-957-8694
- Part Number
- Manufacturer
- Status
- M11218IA12
- Manufacturer
- 81349 - Military Specifications (Active)
- Definitive Standard
- Definitive Standard
- MIL-C-11218
- 81349 - Military Specifications (Active)
- Incomplete Standard
- Incomplete Standard
Datasheet 3910-00-957-8694
- Characteristic
- Specifications
- FIIG
- Specifications
- T211-B
- End Coupling [BGSY]
- Included
- Capacity Rating Method [BGSZ]
- 200.000 Pounds Per Foot Load
- Center To Center Distance Between Rotating Devices [BGSW]
- 3.000 Inches
- Floor Stand [BGSX]
- Not Included
- Frame Rail Quantity [BGSP]
- 2
- Frame Type [ALDF]
- Straight
- Nondefinitive Spec/Std Data [ZZZT]
- 1 Type And A Class And 2 Size
- Frame Material [ADNM]
- Steel
- Rotating Device Bearing Type [BJDB]
- Ball
- Rotating Device Diameter [BHNC]
- 1.875 Inches Nominal
- Rotating Device Face Width [BHND]
- 11.000 Inches Nominal
- Rotating Device Shape [BHNP]
- Straight
- Rotating Device Type [BGSS]
- Roller
- Rotating Device Material [BHMZ]
- Steel
- Rotating Device Row Quantity [BJDC]
- 1
- Overall Height [ABKW]
- 3.812 Inches Nominal
- Overall Length [ABHP]
- 10.000 Feet Nominal
- Overall Width [ABMK]
- 14.000 Inches Nominal
DLA Procurement Analysis 3910-00-957-8694
- Last Stock Position:
- 46 In Stock
- DLA Administrative Lead Time:
- Subscribe
- DLA Production Lead Time:
- Subscribe
Management Data 3910-00-957-8694
Army
- Materiel Category and Inventory Manager:
- J
- Ground Forces Support Materiel (DLA/GSA Items)
- Appropriation and Budget Activity:
- 2
- Stock Fund Secondary Items
- Management Inventory Segment:
- 2
- Non-Repairable Items(Exclusive of Insurance and Provisioning Items)
This code will be used to identify items, which are not reparable.
- Weapons System / End Item / Homogeneous Group:
- 00
- DLA/GSA Material
DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
- Accounting Requirements:
- N
- Nonexpendable item.An item of Army property coded with an ARC of N in the AMDF.Nonexpendable items require property book accountability after issue from the stock record account.Commercial and fabricated items similar to items coded N in the AMDF are considered nonexpendable items.
Navy
- Cognizance:
- 9B
- Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
Similar Supply Items to 3910-00-957-8694
Freight Information 3910-00-957-8694
3910-00-957-8694 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 120060. A Sub NMFC of Z. It has a NMFC Description of CONVEYORS/PARTS GRAVITY ROLLER. 3910-00-957-8694 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 61260 which rates the freight between FCL and LCL. 3910-00-957-8694 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 885 for ocean manifesting and military sealift. 3910-00-957-8694 is not classified as a special type of cargo when transported by water. 3910-00-957-8694 is not a consolidation, but exceeds 84" in at least one dimension. It may not be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 3910-00-957-8694
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- --
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- --
- --
- Bare Metal Item
- Over 10lb
- Less than 85G
- Special Requirement
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- 1
- 122.0" H x 16.0" W x 6.0" L
- --
- --
- Physical Protection
- Any Suitable Process
- 122.0" H x 16.0" W x 6.0" L
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- --
- --
- Cushion, Anchor, Block or Brace as Required
- --
- ASTM-D6251, Type III, Class 2, Overseas Cleated Plywood Box or ASTM-D6880, Class 2, Heavy Duty Nailed Wood Box
- No special marking
- --
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- --
Contracting Technical Data File (CTDF) 3910-00-957-8694 October 2021
Criticality and Quality
- Critical Item Code:
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- N
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
