3820-01-658-9321
Paving Breaker Chisel
3820016589321 016589321 3083 3230 00
A straight, solid metal tool with a shank at one end to fit the chuck of a paving breaker, the opposite end processed into a straight, flat blade, with a straight cutting edge. Used for cutting or shaping materials such as asphalt, stone, and other rock-like materials. View more Paving Breaker Chisel
May 2023
1
Marketplace 3820-01-658-9321
Request a Quotation from participating marketplace vendors
Related Documents 3820-01-658-9321 2+ Documents (More...)
Updated Every Day 3820-01-658-9321 RQST NE Related Documents 3820-01-658-9321 2+ Documents ( More...
BUY NE FedMall Updated Every Day 3820-01-658-9321 RQST NE Updated Every Day 3820-01-658-9321 RQST Updated
Updated Every Day 3820-27-032-5921 RQST NE Related https//www.nsnlookup.com /fsg-38/fsc-3820/us 3820-01-658-9321
Paving Breaker Chisel 3820016589321 016589321 day Upgrade your Account Upgrade 3820-01-658-9321Paving
Restrictions 3820-01-658-9321
3820-01-658-9321 is a Paving Breaker Chisel that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
Import and Export 3820-01-658-9321
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 3820-01-658-9321
- US Army (A920)
- Effective Date:
- 1 Oct 2016
- Supplementary Receivers:
- AZ
Approved Sources 3820-01-658-9321
- Part Number
- Manufacturer
- Status
- 3083 3230 00
- Manufacturer
- 1DYK7 - Atlas Copco Tools & Assembly Llc (Active)
- Primary Buy
- Primary Buy
Datasheet 3820-01-658-9321
- Characteristic
- Specifications
- FIIG
- Specifications
- A06000
- Blade Width [AEAF]
- 1.800 Inches Nominal
- End Item Identification [AGAV]
- 5180-01-555-6134; Engineer Equipment Set
- Part Name Assigned By Controlling Agency [CXCY]
- Cobra Comi Narrow Chisel
- Shank Overall Length [ATCG]
- 4.250 Inches Nominal

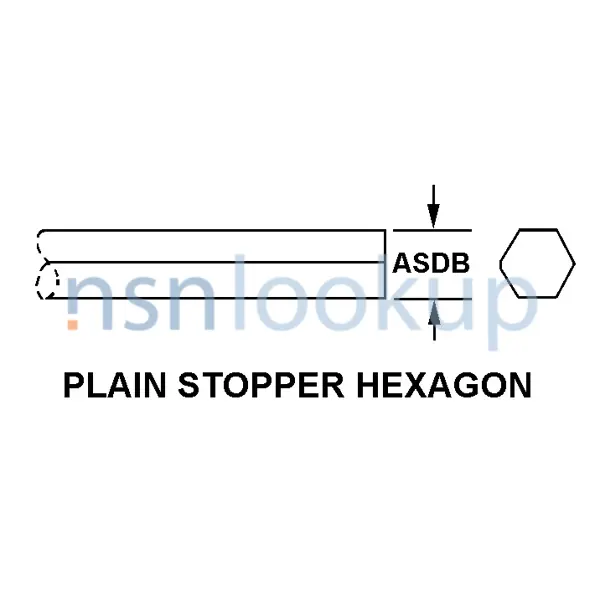

- Shank Style [AAZF]
- Plain Stopper Hexagon
- Overall Length [ABHP]
- 13.000 Inches Nominal
- Width Across Flats [ASDB]
- 0.875 Inches Nominal
DLA Procurement Analysis 3820-01-658-9321
Management Data 3820-01-658-9321
Army
- Materiel Category and Inventory Manager:
- J
- Ground Forces Support Materiel (DLA/GSA Items)
- Appropriation and Budget Activity:
- 2
- Stock Fund Secondary Items
- Management Inventory Segment:
- 2
- Non-Repairable Items(Exclusive of Insurance and Provisioning Items)
This code will be used to identify items, which are not reparable.
- Weapons System / End Item / Homogeneous Group:
- 00
- DLA/GSA Material
DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
- Accounting Requirements:
- X
- Expendable item.An item of Army property coded with an ARC of X in the AMDF. Expendable items require no formal accountability after issue from a stock record account.Commercial and fabricated items similar to items coded X in the AMDF are considered expendable items.
NATO Stock Numbers Related to 3820-01-658-9321
Freight Information 3820-01-658-9321
3820-01-658-9321 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 144130. A Sub NMFC of X. It has a NMFC Description of TOOLS DRILLING NOI. 3820-01-658-9321 is rated as class 77.5 when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 72110 which rates the freight between FCL and LCL. 3820-01-658-9321 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 72E for ocean manifesting and military sealift. 3820-01-658-9321 is not classified as a special type of cargo when transported by water. 3820-01-658-9321 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Contracting Technical Data File (CTDF) 3820-01-658-9321 October 2021
Criticality and Quality
- Critical Item Code:
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- N
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- Y
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
