3820-01-114-9356
Paving Breaker Moil Point
3820011149356 011149356 1020 3PEA2P-18 616530-2 50055524 3PBA2P18
A straight, solid metal tool with a shank at one end to fit the chuck of a paving breaker, the opposite end processed to a sharp point. Used for penetrating or breaking up of hard materials such as asphalt, concrete, and other rock-like formations. View more Paving Breaker Moil Point
June 2023
4
Marketplace 3820-01-114-9356
Request a Quotation from participating marketplace vendors
Related Documents 3820-01-114-9356 1+ Documents (More...)
United States (US) 4. 3820-01-114-9356 Marketplace Restrictions Approved Sources Datasheet Management
,PAVING BREAKER 1 EA NS Request Quotation Subscribe to View Vendor Details... 1020 MOIL POINT,PAVING
Restrictions 3820-01-114-9356
3820-01-114-9356 is a Paving Breaker Moil Point that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
Import and Export 3820-01-114-9356
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 3820-01-114-9356
- US Air Force (FGGI)
- Effective Date:
- 1 May 2006
- Former MOE Rule:
- FGKZ
- US Navy (N9BZ)
- Effective Date:
- 1 May 2006
- Supplementary Collaborators:
- GTKEHD
Approved Sources 3820-01-114-9356
- Part Number
- Manufacturer
- Status
- 50055524
- Manufacturer
- 57576 - Ingersoll-Rand Co (Obsolete)
- Original Design
- Original Design
- 616530-2
- 80020 - Naval Air Warfare Center Aircraft (Active)
- Secondary Buy
- Secondary Buy
- 3PBA2P18
- 57576 - Ingersoll-Rand Co (Obsolete)
- Canceled/Obsolete
- Canceled/Obsolete
- 3PBA2P18
- 30760 - Ingersoll Rand Co (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- 1020
- D9182 - Zf Industrieantriebe Witten Gmbh (Active)
- Advisory Reference
- Advisory Reference
- 3PEA2P-18
- D9182 - Zf Industrieantriebe Witten Gmbh (Active)
- Advisory Reference
- Advisory Reference
Datasheet 3820-01-114-9356
- Characteristic
- Specifications
- FIIG
- Specifications
- A06000
- Material [MATT]
- Steel

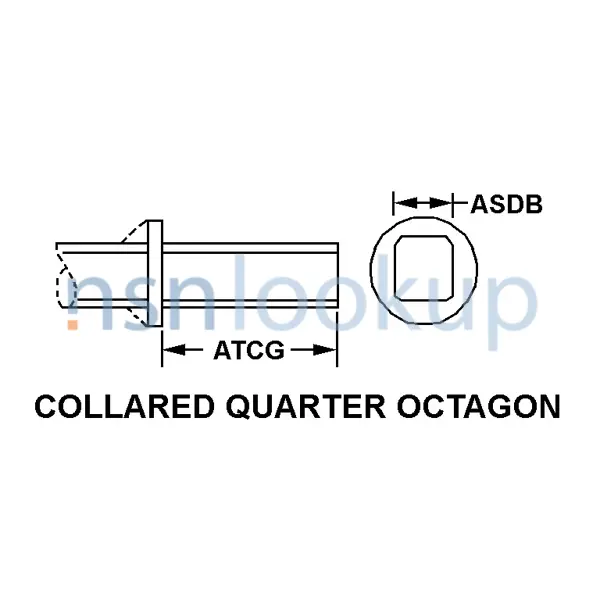

- Shank Style [AAZF]
- Collared Quarter Octagon
- Width Across Flats [ASDB]
- 1.125 Inches Nominal
- Shank Overall Length [ATCG]
- 6.000 Inches Nominal
- Overall Length [ABHP]
- 24.000 Inches Nominal
Weapon Systems (WSDC) 3820-01-114-9356
DLA Procurement Analysis 3820-01-114-9356
Management Data 3820-01-114-9356
Air Force
- Fund:
- SF
- Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point
- Budget:
- 9
- 57X4921.070 - General Support DIV - Air Force decentralized managed expense items (ERRC XB3, XF3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors
- Price Validation Code:
- N
- The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
The price has not been analyzed or reviewed for accuracy.
ZOP or Standard price challenges are permissible but must be supported with adequate justification. However, if coded for Local Purchase (LP) or Fabrication/Manufacture as indicated with an (LM) Acquisition Advice Code of “L” or “F”, then it must be evaluated locally where purchased or fabricated.
- Expendability
Recoverability
Repairability: - N
- Expendable. Condemn at User. Stock Fund (except Munitions).
Navy
- Cognizance:
- 9B
- Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
NATO Stock Numbers Related to 3820-01-114-9356
Freight Information 3820-01-114-9356
3820-01-114-9356 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 186590. A Sub NMFC of X. It has a NMFC Description of TOOLS:ELEC HYDR PNEU/I/C ENG/PARTS. 3820-01-114-9356 is rated as class 85 when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 91790 which rates the freight between FCL and LCL. 3820-01-114-9356 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 72E for ocean manifesting and military sealift. 3820-01-114-9356 is not classified as a special type of cargo when transported by water. 3820-01-114-9356 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 3820-01-114-9356
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- --
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- --
- --
- Bare Metal Item
- Over 10lb
- Less than 85G
- Special Requirement
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- 1
- --
- --
- --
- Preservative Coating Only
- Any Suitable Process
- --
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- MIL-PRF-16173, Grade 1, Corrosion Preventive, Solvent Cutback, Cold Application, Hard Film
- --
- --
- --
- Any Suitable Container
- No special marking
- --
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- ASTM-D5118, Type CF, Class Weather-Resistant, Corrugated Fiberboard Box
