3820-00-118-1273
Rock Drill Rod Shank
3820001181273 001181273 MILD22233 MILD22233BTYPE3 SB1551 SB15S1
A straight metal rod with a shank at one end to fit the drilling machine chuck, and the opposite end externally threaded or tapered for attachment by a coupling to a threaded drill rod section. The shank has a passageway throughout its entire length for conducting air or water to clear the hole being drilled, and a packing seal in the upper end of the shank, Overall length must be less than 15 inches (381 mm). View more Rock Drill Rod Shank
May 2023
3
Marketplace 3820-00-118-1273
Request a Quotation from participating marketplace vendors
Related Documents 3820-00-118-1273 5+ Documents (More...)
BUY NE FedMall Updated Every Day 3820-00-118-1273 RQST NE Updated Every Day 3820-00-118-1273 RQST
RQST NE Updated Every Day 3820-00-118-1273 RQST Updated Every Day 3820-00-118-1273 RQST NE Related
001181273 687-4285 3820-01-645-7619 https//www.nsnlookup.com /fsg-38/fsc-3820/es 3820-33-005-4036 Rock
Drill Rod Shank 3820330054036 330054036 698-0117 3820001181273 001181273 649-6863 3820-01 https//www.nsnlookup.com
https//www.nsnlookup.com /fsg-38/fsc-3820/au 3820-66-034-7294 Shank Piece 3820660347294660347294,SB15S1
https//www.nsnlookup.com /fsg-38/fsc-3820/au 3820-66-034-7294 Shank Piece 3820660347294660347294,SB15S1
016207460 Stock Numbers Related to 3820-01 https//www.nsnlookup.com /fsg-38/fsc-3820/us 3820-00-118-1273
Rock Drill Rod Shank 3820001181273 001181273 3820-00-118-1273Rock Drill Rod Shank3820001181273 https
3820016659235 016659235 001181273 687-4285 3820-01-645-7619 Rock Drill Rod Shank https//www.nsnlookup.com
Rod Shank 3820016659235 016659235 3820-01-665-9235 Rock Drill Rod Shank 3820016659235016659235 3820001181273
Restrictions 3820-00-118-1273
3820-00-118-1273 is a Rock Drill Rod Shank that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. The precious metals content of this item is unknown.
Import and Export 3820-00-118-1273
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 3820-00-118-1273
- US Army (A920)
- Effective Date:
- 1 May 2006
- Former MOE Rule:
- A186
- Supplementary Receivers:
- AZ
Approved Sources 3820-00-118-1273
- Part Number
- Manufacturer
- Status
- MILD22233
- Manufacturer
- 81349 - Military Specifications (Active)
- Incomplete Standard
- Incomplete Standard
- MILD22233BTYPE3
- 81349 - Military Specifications (Active)
- Incomplete Secondary Reference
- Incomplete Secondary Reference
- SB1551
- 30760 - Ingersoll Rand Co (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- SB15S1
- 30760 - Ingersoll Rand Co (Active)
- Canceled/Obsolete
- Canceled/Obsolete
Datasheet 3820-00-118-1273
- Characteristic
- Specifications
- FIIG
- Specifications
- A06000
- Attachment Method [ABSX]
- Threaded Bottom Drive
- Diameter [ABMZ]
- 1.492 Inches Minimum And 1.510 Inches Maximum
- Nondefinitive Spec/Std Data [ZZZT]
- 3 Type
- Material [MATT]
- Steel
- Manufacturer Thread Design Designation [AEAG]
- Mil Std 90496
- Shank Overall Length [ATCG]
- 3.812 Inches Nominal

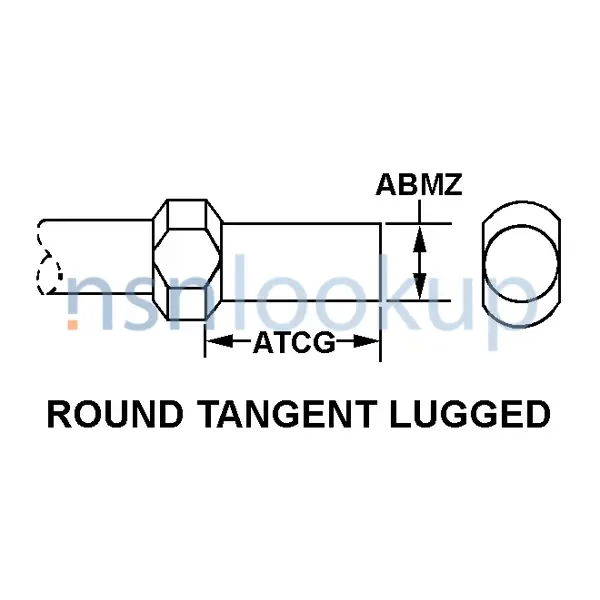

- Shank Style [AAZF]
- Round Tangent Lugged
- Overall Length [ABHP]
- 13.000 Inches Nominal
DLA Procurement Analysis 3820-00-118-1273
Management Data 3820-00-118-1273
Army
- Materiel Category and Inventory Manager:
- J
- Ground Forces Support Materiel (DLA/GSA Items)
- Appropriation and Budget Activity:
- 2
- Stock Fund Secondary Items
- Management Inventory Segment:
- 2
- Non-Repairable Items(Exclusive of Insurance and Provisioning Items)
This code will be used to identify items, which are not reparable.
- Weapons System / End Item / Homogeneous Group:
- 00
- DLA/GSA Material
DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
- Accounting Requirements:
- X
- Expendable item.An item of Army property coded with an ARC of X in the AMDF. Expendable items require no formal accountability after issue from a stock record account.Commercial and fabricated items similar to items coded X in the AMDF are considered expendable items.
Similar Supply Items to 3820-00-118-1273
Freight Information 3820-00-118-1273
3820-00-118-1273 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 186590. A Sub NMFC of X. It has a NMFC Description of TOOLS:ELEC HYDR PNEU/I/C ENG/PARTS. 3820-00-118-1273 is rated as class 85 when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 91790 which rates the freight between FCL and LCL. 3820-00-118-1273 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 732 for ocean manifesting and military sealift. 3820-00-118-1273 is not classified as a special type of cargo when transported by water. 3820-00-118-1273 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 3820-00-118-1273
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- --
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- --
- --
- Bare Metal Item
- Over 10lb
- Less than 85G
- Special Requirement
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- 1
- 13.0" H x -- W x -- L
- --
- --
- Preservative Coating Only
- Any Suitable Process
- 13.0" H x -- W x -- L
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- MIL-PRF-16173, Grade 1, Corrosion Preventive, Solvent Cutback, Cold Application, Hard Film
- MIL-PRF-121, Type I, Medium Duty, Greaseproof, Waterproof Barrier
- Weather Resistant Fiberboard Meeting the Requirements of ASTM-D4727 used as Pads, Cells, Die-cuts or Sleeves; or Plastic Molding Material conforming to MIL-P-19644; or Polyurethane Foam conforming to MIL-PRF-26514
- --
- ASTM-D5118, Type CF, Class Domestic, Double Wall, Corrugated Fiberboard Box
- No special marking
- MIL-PRF-121, Type I, Medium Duty, Greaseproof, Waterproof Barrier
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- --
- No Requirement
Contracting Technical Data File (CTDF) 3820-00-118-1273 October 2021
Criticality and Quality
- Critical Item Code:
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- N
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
