3810-01-246-8660

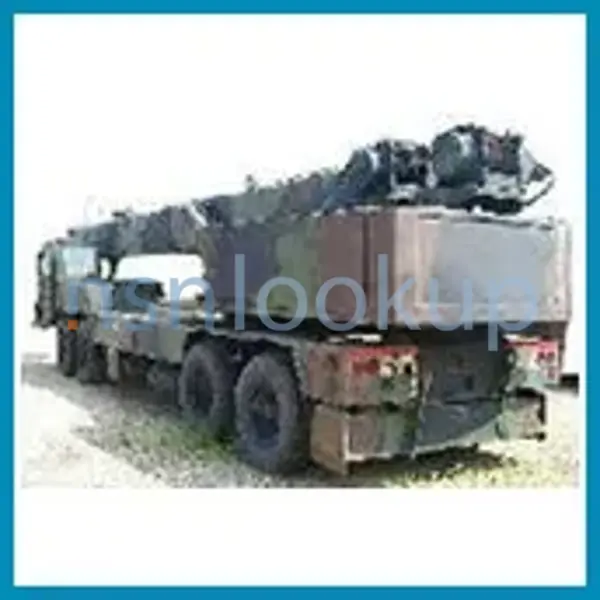

Truck Mounted Crane
3810012468660 012468660 LRT180A
A crane, consisting of a full revolving superstructure complete with boom and mounted on a heavy duty, self-propelled truck or truck chassis suitable for highway travel. It is primarily designed for weight lifting operations. The crane is self-powered or may derive its mobile power from the power unit of the truck chassis in connection with a hydraulic system. The crane is not convertible to shovel or backhoe operations. For truck mounted cranes convertible to shovel and backhoe operations in addition to performing weight lifting operations, see CRANE-SHOVEL, TRUCK MOUNTED. For items specifically designed for the recovery of disabled vehicles and equipment, see TRUCK, WRECKER. View more Truck Mounted Crane
May 2023
8
Marketplace 3810-01-246-8660
Request a Quotation from participating marketplace vendors
Related Documents 3810-01-246-8660 5+ Documents (More...)
RQST NE Updated Every Day 3810-01-246-8660 RQST Updated Every Day 3810-01-246-8660 RQST NE Related Documents
3810-01-246-8660 5+ Documents ( More... ) https//www.nsnlookup.com /fsg-38/fsc-3810/us 3810-01-246-8660
Truck Mounted Crane 3810012468660 012468660 fsc-4320/us 4320-01-297-5169 Rotary Pump 4320012975169
Cylinder Parts Kit2530270165433 270165433 7082216 https//www.nsnlookup.com /fsg-38/fsc-3810/us 3810-01-246-8660
Truck Mounted Crane 3810012468660 012468660 Day 3810-01-246-8660 RQST NE Related Documents https
Inches NominalDrive Shaft Type [AJAB]Splined, Involute ExternalEnd Item Identification [AGAV]3810-01-246-8660
Truck Mounted Crane 3810012468660 012468660 ExternalEnd Item Identification [AGAV]3810-01-246-8660
NominalMounting Type [AAXX]FlangeSpecial Features [FEAT]Tamdem PumpEnd Item Identification [AGAV]3810-01-246-8660
Truck Mounted Crane 3810012468660 012468660 PumpEnd Item Identification [AGAV]3810-01-246-8660
Dia Flange Hole R-H SideEnd Item Identification [AGAV]3810-01-246-8660 Truck Mtd CraneUnpackaged Unit
Restrictions 3810-01-246-8660
IUID Required
3810-01-246-8660 is a Truck Mounted Crane that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. The DCMO has forced the Demilization requirements for this item as the ICP has not collaborated. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item has been determined to be hazardous and information is contained in the Hazardous Materials Information Resource System (HMIRS). This item does not contain a precious metal.
End Users 3810-01-246-8660
- US Air Force (FGG4)
- Effective Date:
- 1 Apr 1991
Approved Sources 3810-01-246-8660
- Part Number
- Manufacturer
- Status
- LRT180A
- Manufacturer
- 81495 - Koehring Cranes, Inc (Active)
- Primary Buy
- Primary Buy
- LRT180A
- 34161 - Koehring Co (Obsolete)
- Canceled/Obsolete
- Canceled/Obsolete
- LRT180A
- 8E499 - Koehring Cranes And Excavators Inc (Obsolete)
- Canceled/Obsolete
- Canceled/Obsolete
Datasheet 3810-01-246-8660
- Characteristic
- Specifications
- FIIG
- Specifications
- T340-A
- Drum Quantity [BKXM]
- 1
- Boom Design [ASZH]
- Telescoping
- Boom Continuous Rotation Feature [CGWH]
- Included
- Boom Length At Which Lifting Capacity Is Rated [CGTY]
- 26.500 Feet Minimum And 61.000 Feet Maximum
- Boom Maximum Angle In Deg [CGWG]
- 75.0
- Boom Overall Length [CGWF]
- 61.000 Feet Nominal
- Boom Radius At Which Lifting Capacity Is Rated [CGTZ]
- 10.000 Feet Minimum And 55.000 Feet Maximum
- Crane Operator Cab [CHXK]
- Included
- Engine Quantity [AYMY]
- 1
- Engine Manufacturer Identifying Number [AYHQ]
- 6Bta5.9
- Engine Manufacturer Name [ATJL]
- Cummins
- Operating Power Type [CMMJ]
- Hydraulic
- Operation Method [APHE]
- Power
- Outrigger Position At Which Lifting Capacity Is Rated [CGWB]
- Set
- Outriggers [CHHP]
- Included
- Maximum Lifting Capacity [CGTX]
- 18.0 Tons
- Prime Mover Type [AKDJ]
- Diesel Engine
- Rear Drive Wheel Quantity [CGWL]
- 2
- Pile Driver [CHXG]
- Not Included

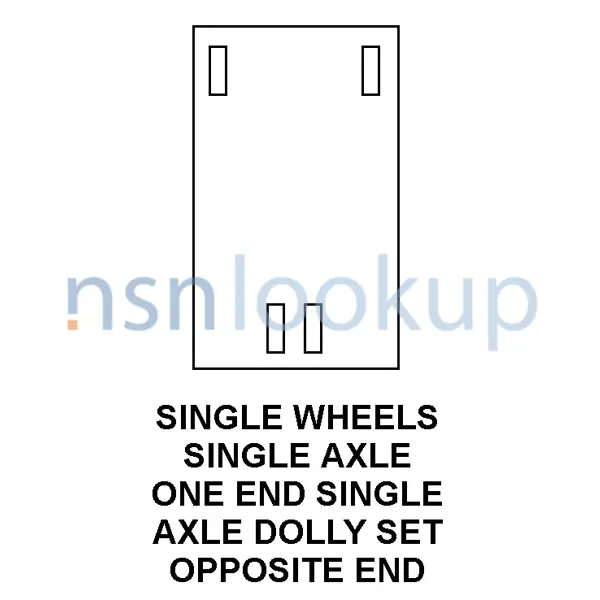

- Wheel Arrangement Style [AZBT]
- Single Wheels Single Axle One End, Singl E Axle Dolly Set Opposite End
- Steerable Wheel Quantity [AGDQ]
- 2
Management Data 3810-01-246-8660
- Effective Date
- Organization
- Unit of Issue
- Unit Price
- Qty Unit Pack
- Unit of Issue
- Jul 2018
- Department of the Air Force (DF)
- EA
- Subscribe
- 1
- EA
- MOE
- USC
- Code
- Statement
- Order of Use
- Jump To Code
- Qty Per Assy
- UOM
- Technical Document
- Quantative Expression
- Code
- Department of the Air Force (DF)
- L
- 3
- Reversal Of Phrase Code S 3810-00-329-4154
- 3
- Department of the Air Force (DF)
- L
- J
- Interchangeable With 3810-01-090-6265
- J
- Department of the Air Force (DF)
- L
- R
- Refer To Serial-Vehicle
- SERIAL-VEHICLE
- R
Similar Supply Items to 3810-01-246-8660
Freight Information 3810-01-246-8660
3810-01-246-8660 has freight characteristics managed by the General Services Administration (GSA).It has a National Motor Freight Classification (NMFC) of 118900. A Sub NMFC of Z. It has a NMFC Description of CRANES/DERRICKS. 3810-01-246-8660 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. 3810-01-246-8660 is rated as class 150 when transported by Less-Than Carload (LCL) rail or ocean freight. It has a Uniform Freight Classification (UFC) number of 60680 which rates the freight between FCL and LCL. 3810-01-246-8660 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 885 for ocean manifesting and military sealift. 3810-01-246-8660 is classified as a Miscellaneous Hazardous Material, UN Class 9, when transported by water. 3810-01-246-8660 is not a consolidation, but exceeds 84" in at least one dimension. It may not be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 3810-01-246-8660
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- --
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- --
- --
- --
- --
- --
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- 1
- --
- --
- --
- --
- Special Requirements
- --
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- Special Requirement
- Special Requirements – see Specific Instructions or Drawings provided
- Special Requirements. See Specific Instructions or Drawings Provided
- Special Requirements. See Specific Instructions or Drawings Provided
- Special requirement – See specific instructions or drawings provided
- Special requirements
- Special Requirements – see Specific Instructions or Drawings provided
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- --
- No Requirement
