3655-01-456-0123

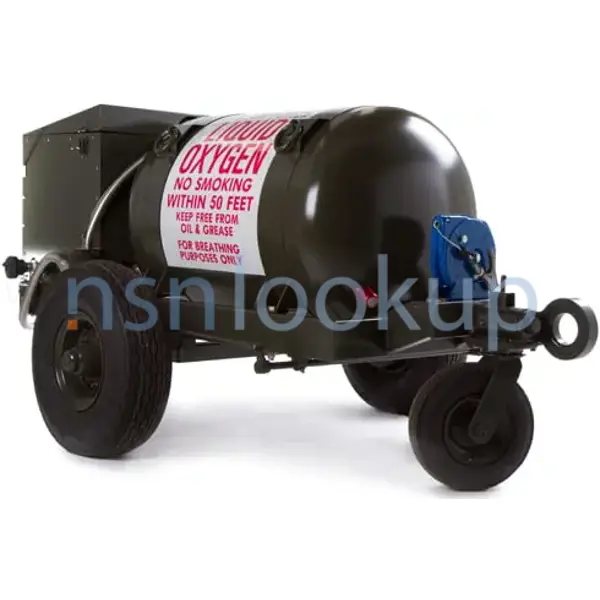

Liquid Argon-Nitrogen-Oxygen Storage Tank
3655014560123 014560123 50C-0014-5
An insulated metal tank for the storage and/or transportation of liquid argon or liquid nitrogen or liquid oxygen. It may be equipped with a vacuum pump for the insulated space and/or a liquid pump for the removal of the stored liquified gas. Excludes TANK, LIQUID GAS and TANK, LIQUID STORAGE. View more Liquid Argon-Nitrogen-Oxygen Storage Tank
August 2023
4
Marketplace 3655-01-456-0123
Request a Quotation from participating marketplace vendors
Related Documents 3655-01-456-0123 1+ Documents (More...)
RQST NE Updated Every Day 3655-01-456-0123 RQST Updated Every Day 3655-01-456-0123 RQST NE Related
Documents 3655-01-456-0123 1+ Documents ( More... ) https//www.nsnlookup.com /fsg-36/fsc-3655/us 3655
Restrictions 3655-01-456-0123
IUID Required
3655-01-456-0123 is a Liquid Argon-Nitrogen-Oxygen Storage Tank that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. This item is a US Munitions List Item and must be mutilated to scrap. This item may be hazardous as it is in a Federal Supply Class for potentially hazardous items. A MSDS should be available from the supplier for the end user to evaluate any hazards. This item does not contain a precious metal.
End Users 3655-01-456-0123
- US Navy (N2R4)
- Effective Date:
- 1 May 1998
- Supplementary Receivers:
- GG
- NATO Maintenance and Supply Agency (ZX01)
- Effective Date:
- 1 Jul 2009
Approved Sources 3655-01-456-0123
- Part Number
- Manufacturer
- Status
- 50C-0014-5
- Manufacturer
- 19062 - Essex Industries, Inc. (Active)
- Primary Buy
- Primary Buy
Datasheet 3655-01-456-0123
- Characteristic
- Specifications
- FIIG
- Specifications
- T330-A
- Special Features [FEAT]

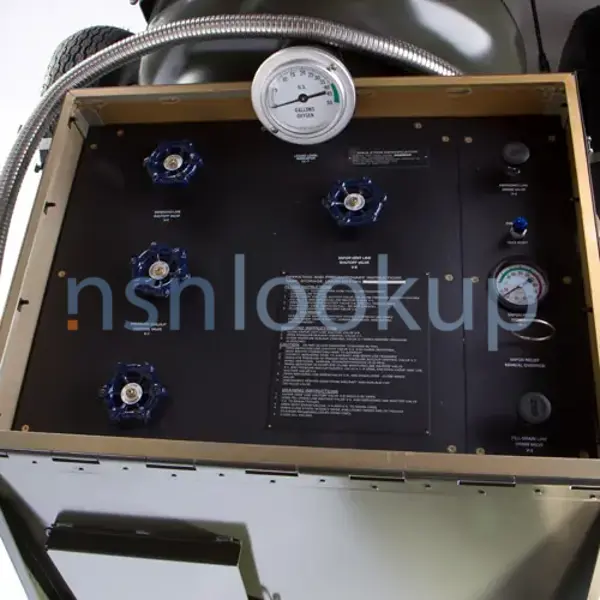

- The Liquid Oxygen Storage Tank Is Used To Store And Transfer Liquid Oxygen. The Tanks's Design Maintains The Product Until Nedded At Low Evaporation Rate. T Of 720 Lbs And A Full Weight (Oxygen) Of 1200 Lbs
Management Data 3655-01-456-0123
Navy
- Cognizance:
- 6R
- Bypass
- Special Material ID:
- SX
- Special Aircraft and Engine Tool and Support Equipment/Parts
- Issue, Repair, Requisition Restriction Code:
- BS
- Submit/refer requisitions to NAVICP PHIL
- Special Material Content:
- 9
- Non-Hazardous or Non-Sensitive Item
NATO Stock Numbers Related to 3655-01-456-0123
Freight Information 3655-01-456-0123
3655-01-456-0123 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 000000. A Sub NMFC of X. It has a NMFC Description of NO NMFC FREIGHT DESCRIPTION. 3655-01-456-0123 has not been rated for freight class when transported by Less-Than Truckload (LTL) freight. 3655-01-456-0123 is rated as class 200 when transported by Less-Than Carload (LCL) rail or ocean freight. It has a Uniform Freight Classification (UFC) number of 00000 which rates the freight between FCL and LCL. 3655-01-456-0123 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 670 for ocean manifesting and military sealift. 3655-01-456-0123 is not classified as a special type of cargo when transported by water. 3655-01-456-0123 is not a consolidation, but exceeds 84" in at least one dimension. It may not be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 3655-01-456-0123
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- Packaging Data does not meet current MIL-STD-2073-1E
- Storage Environment
- Heated General Purpose – Heated 40 F and above
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- --
- --
- --
- Over 10lb
- Less than 85G
- No Requirement
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- 1
- 101.0" H x 66.0" W x 52.0" L
- --
- --
- Preservative Coating Only
- Any Suitable Process
- 101.0" H x 66.0" W x 52.0" L
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- Vendor's Protective Grease or Oil Coating
- MIL-PRF-121, Greaseproof, Waterproof Barrier
- Wood Blocking and Bracing, Fasteners, or Steel Strapping, for Tie-down purposes. Rubber tired wheels shall be blocked clear of the floor of the crate or skid and shall not be load bearing
- Not Applicable
- ASTM-D6251, Type III, Class 2, Overseas Cleated Plywood Box or ASTM-D6880, Class 2, Heavy Duty Nailed Wood Box
- --
- MIL-PRF-121, Greaseproof, Waterproof Barrier
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- --
- No Requirement
