3460-00-528-3146
Abrasive Wheel
3460005283146 005283146 B7.1 B74.13 TYPE AL4 A90MV B74.2 1/4 X 3/4 X 1/4 MIL-W-17663 A24-A90-M-V
A rigid piece of abrasive with or without mounting facilities. Items having such mounting facilities as a fixed spindle, a threaded insert, or an arbor hole are designed for mounting on a grinding machine, tool chuck or mandrel. Items without mounting facilities are designed to be secured in a wheel holder by means of spring clamps. View more Abrasive Wheel
November 2023
22
Marketplace 3460-00-528-3146
Request a Quotation from participating marketplace vendors
Related Documents 3460-00-528-3146 5+ Documents (More...)
B7.1 WHEEL,ABRASIVE 1 EA NS Request Quotation Updated Every Day 3460-00-528-3146 RQST NE Updated Every
Day 3460-00-528-3146 RQST Updated Every Day 3460-00-528-3146 RQST NE Related Documents 3460-00-528-3146
-17663 GPA MIL-W-17663 A-46-R-G-BF.ANSIB74.2 A rigid B74.2 AND B74.13 A46 https//www.nsnlookup.com /fsg
Abrasive Wheel 3460005283146 005283146,B7.1 3146Abrasive Wheel3460005283146 005283146 B7.1 B74.13
TYPE AL4 A90MV B74.2 1/4 X 3/4 X 1/4 MIL-W-17663 A24 3146Abrasive Wheel3460005283146 005283146B7.1B74.13
TYPE AL4 A90MV B74.2 1/4 X 3/4 X 1/4MIL-W-17663 A24 MIL-W-17663 GPA MIL-W-17663 A-46-R-G-BF.ANSIB74.2
TYPE AL4 A90MV B74.2 1/4 X 3/4 X 1/4 MIL-W-17663 Abrasive Wheel 3460006241933006241933,B7.1 3460-00-
Abrasive Wheel 3460005283146 005283146,B7.1 Upgrade for $1 a day Upgrade your Account Upgrade 3460
/fsg-34/fsc-3460/us
B7.1 WHEEL,ABRASIVE 1 EA NS Request Quotation Updated Every Day 3460-01-105-9894 RQST NE Updated Every
A30RBNF A46-TBNA3 MIL-W B74.13 A46 B74.13 ANSI B74.2ANSI B7.1 A36-D2 Account Upgrade /B74.13 A30RBNF
Restrictions 3460-00-528-3146
3460-00-528-3146 is a Abrasive Wheel that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. The precious metals content of this item is unknown.
Import and Export 3460-00-528-3146
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 3460-00-528-3146
- US Air Force (FGGG)
- Effective Date:
- 1 Jul 2006
- Former MOE Rule:
- FGCX
- Republic of Korea (ZH01)
- Effective Date:
- 1 Apr 1991
- Greece (ZU01)
- Effective Date:
- 1 Apr 1991
- Turkey (ZW01)
- Effective Date:
- 1 Nov 2005
Approved Sources 3460-00-528-3146
- Part Number
- Manufacturer
- Status
- B7.1
- Manufacturer
- 80204 - American National Standards (Active)
- Incomplete Reference
- Incomplete Reference
- B74.13 TYPE AL4 A90MV
- 80204 - American National Standards (Active)
- Primary Buy
- Primary Buy
- B74.2 1/4 X 3/4 X 1/4
- 80204 - American National Standards (Active)
- Primary Buy
- Primary Buy
- MIL-W-17663
- 81349 - Military Specifications (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- A24-A90-M-V
- 81349 - Military Specifications (Active)
- Canceled/Obsolete
- Canceled/Obsolete
Datasheet 3460-00-528-3146
- Characteristic
- Specifications
- FIIG
- Specifications
- A06900
- Abrasive Material [AHCM]
- Aluminum Oxide
- Screen Grit Size Designator [AHCN]
- 90
- Usage Design [ACVE]
- Metal Working
- Abrasive Grain Structure Designator [AHCS]
- 5

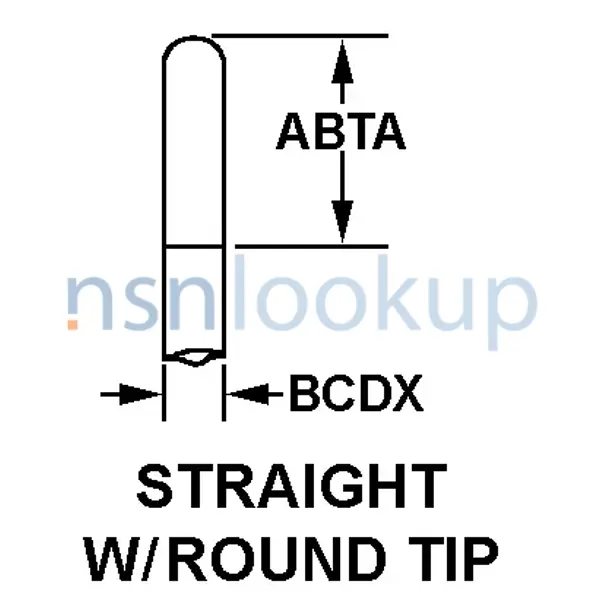

- Wheel Style [CZHQ]
- Straight W/Round Tip
- Overall Thickness [ABTA]
- 0.750 Inches Nominal
- Wheel Diameter [BCDX]
- 0.250 Inches Nominal
- Mounting Method [ADJH]
- Spindle
- Spindle Diameter [AHDQ]
- 0.250 Inches Nominal
- Spindle Length [AHDR]
- 1.500 Inches Nominal
- Binder Material [ADYW]
- Vitreous Substance
- Abrasive Bond Grade Designation [AHDY]
- M Medium
- Specification/Standard Data [ZZZK]
- 80204-B74.2 Professional/Industrial Association Standard
DLA Procurement Analysis 3460-00-528-3146
- Last Stock Position:
- 38 In Stock
- DLA Administrative Lead Time:
- Subscribe
- DLA Production Lead Time:
- Subscribe
Management Data 3460-00-528-3146
Air Force
- Fund:
- SF
- Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point
- Budget:
- 9
- 57X4921.070 - General Support DIV - Air Force decentralized managed expense items (ERRC XB3, XF3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors
- Price Validation Code:
- V
- The current standard price has been validated.
The item has been analyzed in conjunction with the Zero Overpricing Program and is in the accepted price range.
The item was procured under open competition and under the competitive arena the price is considered fair and reasonable.
ZOP or Standard price challenges are permissible but must be supported by adequate justification.
- Expendability
Recoverability
Repairability: - N
- Expendable. Condemn at User. Stock Fund (except Munitions).
NATO Stock Numbers Related to 3460-00-528-3146
Freight Information 3460-00-528-3146
3460-00-528-3146 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 001020. A Sub NMFC of X. It has a NMFC Description of ABRASIVES:CRUDE OR LUMP. 3460-00-528-3146 is rated as class 55 when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 02030 which rates the freight between FCL and LCL. 3460-00-528-3146 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 732 for ocean manifesting and military sealift. 3460-00-528-3146 is not classified as a special type of cargo when transported by water. 3460-00-528-3146 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 3460-00-528-3146
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- --
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- --
- --
- Electrical Instrument
- 2lb or less, one dimension 2" or less, other dimensions less than 24"
- Above 110G
- No Requirement
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- 1
- --
- --
- --
- Physical Protection
- Any Suitable Process
- --
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- --
- --
- --
- --
- Bags made of material conforming to MIL-P-130, MIL-DTL-17667, MIL-PRF-121, or any material authorized by MIL-DTL-117. Closure may be by staples, tape, adhesive or heat seal
- No special marking
- --
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- --
Procurement History 3460-00-528-3146 1 Records
Contracting Technical Data File (CTDF) 3460-00-528-3146 October 2021
Criticality and Quality
- Critical Item Code:
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- N
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- N
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
