3415-01-384-0220

Utility Grinding And Buffing Machine

3415013840220 013840220 GRINDCVC 248-181TD 23-675

INC: 03168 Utility Grinding And Buffing Machine

Managed by United States

NSN Created on 8 Dec 1993

Data Last Changed
May 2023

NATO Update Count
5

NATO Data Quality

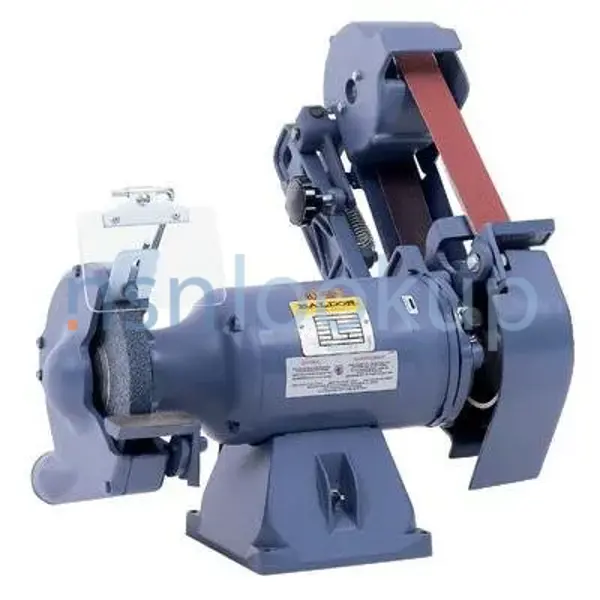

3415-01-384-0220 GRINDING AND BUFFING MACHINE,UTILITY 3415013840220 013840220 1/1 — 3415-01-384-0220 Photo 1/1

Marketplace 3415-01-384-0220

Need Help?
Request a Quotation from participating marketplace vendors

Subscribe to View Vendor Details...

2367-5 GRINDING AND BUFFING MACHINE,UTILITY 13 EA NS

Subscribe to View Vendor Details...

248-181TD GRINDING AND BUFFING MACHINE,UTILITY 10 EA NS

FedMall

Updated Every 15 Minutes

3415-01-384-0220 BUY NE FedMall

Updated Every Day

3415-01-384-0220 RQST NE

Updated Every Day

3415-01-384-0220 RQST

Updated Every Day

3415-01-384-0220 RQST NE

Related Documents 3415-01-384-0220 5+ Documents (More...)

https//www.nsnlookup.com
/fsg-34/fsc-3415/us

3415-01-384-0220 Utility Grinding And Buffing Machine

GRINDCVC 248-181TD 23-675 Managed by United States NSN Created on 8 Dec 1993 Data Last Changed May 2023
NATO Update Count 5 NATO Data Quality 3415-01-384-0220 Photo 1/1 1.
BUY NE FedMall Updated Every Day 3415-01-384-0220 RQST NE Updated Every Day 3415-01-384-0220 RQST

https//www.nsnlookup.com
/fsg-34/fsc-3415/us

3415-01-384-0439 Utility Grinding And Buffing Machine

your Account Upgrade 3415-01-384-0439Utility Grinding And Buffing Machine3415013840439 013840439 GRINDCVC
your Account Upgrade 3415-01-382-0739Utility Grinding And Buffing Machine3415013820739 013820739 GRINDCVC
GRINDCVC NumberManufacturerStatusE-10/PD10 95952 - Wissota Mfg Co Inc (Active) Primary Buy RNCC 3 RNVC

https//www.nsnlookup.com
/fsg-34/fsc-3415/us

3415-01-384-3905 Utility Grinding And Buffing Machine

your Account Upgrade 3415-01-384-3905Utility Grinding And Buffing Machine3415013843905 013843905 GRINDCVC
your Account Upgrade 3415-01-382-0792Utility Grinding And Buffing Machine3415013820792 013820792 GRINDCVC
your Account Upgrade 3415-01-382-0925Utility Grinding And Buffing Machine3415013820925 013820925 GRINDCVC

https//www.nsnlookup.com
/fsg-34/fsc-3415/us

3415-01-382-0745 Utility Grinding And Buffing Machine

your Account Upgrade 3415-01-382-0745Utility Grinding And Buffing Machine3415013820745 013820745 GRINDCVC
your Account Upgrade 3415-01-384-0584Utility Grinding And Buffing Machine3415013840584 013840584 GRINDCVC
your Account Upgrade 3415-01-384-3956Utility Grinding And Buffing Machine3415013843956 013843956 GRINDCVC

https//www.nsnlookup.com
/fsg-34/fsc-3415/us

3415-01-382-0739 Utility Grinding And Buffing Machine

your Account Upgrade 3415-01-382-0739Utility Grinding And Buffing Machine3415013820739 013820739 GRINDCVC
your Account Upgrade 3415-01-382-0760Utility Grinding And Buffing Machine3415013820760 013820760 GRINDCVC
your Account Upgrade 3415-01-382-0812Utility Grinding And Buffing Machine3415013820812 013820812 GRINDCVC

Restrictions 3415-01-384-0220

3415-01-384-0220 is a Utility Grinding And Buffing Machine that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.

Import and Export 3415-01-384-0220

Schedule B: Subscribe to View Schedule B
HTS Code: Subscribe to View HTS Code

End Users 3415-01-384-0220

US Army (A921)
Effective Date:: 1 Jul 2006
Former MOE Rule:: A182; AMC 3 AMSC H IMC Z IMCACTY CD

Approved Sources 3415-01-384-0220

Part Number
Manufacturer
Status
248-181TD: 46UR5 - Abb Motors & Mechanical Inc (Active); Primary Buy; RNCC 3 RNVC 2 DAC 5
23-675: 1Z322 - Delta Intl Machinery Corp (Active); Original Design; RNCC 3 RNVC 9 DAC E
GRINDCVC: 13873 - Dla Aviation Engineering (Active); Incomplete Secondary Reference; RNCC 5 RNVC 1 DAC 5
248-181TD: 05472 - Baldor Electric Co (Replaced); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 5

Datasheet 3415-01-384-0220

Characteristic
Specifications
FIIG: T284-A
Mounting Type For Which Designed [BCNX]: Bench
Spindle End Type [BMYP]: Double
Spindle Diameter [AHDQ]: 0.500 Inches Nominal
Spindle Speed In Rpm [BMYR]: 3450.0 Nominal
Maximum Wheel Diameter Accommodated [BMYS]: 6.000 Inches
Maximum Wheel Thickness Accommodated [BMYT]: 0.750 Inches
Work Rest Design [BMYW]: Plain
Power Source [ATJK]: Electric Motor
Quantity [NMBR]: 1
Horsepower Rating [ANCY]: 0.2
Current Type [ACDC]: Ac
Voltage In Volts [ELEC]: 120.0
Current Rating In Amps [AMPS]: 2.5
Frequency In Hertz [FREQ]: 60.0
Phase [FAAZ]: Single
Furnished Items And Quantity [AKYN]: Wheel, Grinding, 1; 3 In. By 24 In. Abrasive Belt, 1; Adjustable Tool Rest, 1; Table/Backstop, 1; Removable On-Off Switch, 1; Eyeshield, 1; Adjustable Spark Deflector, 1; Belt Cover, 1; Instruction Manual, 1
Special Features [FEAT]: Induction-Type Ball Bearing Motor; Cast Iron Base And Motor Housing To Minimize Operating Vibration; Spring-Release Belt Tensioning Lever To Simplify Belt Changing; Belt Tracking Control With Fine Thread Adjustment For Easy, Accurate Belt Alignment; Belt Width 3 In.; Belt Length 24 In.; Belt Speed 3100 Sfm At 3450 Rpm; Height 14 1/4 In.; Width 16 1/4 In.; Depth 9 1/2 In.; Weight 25 1/2 Pounds; Wire Wheel Available When Specified Upon Ordering

Subscribe
View Data

DLA Procurement Analysis 3415-01-384-0220

DLA Administrative Lead Time:: Subscribe
DLA Production Lead Time:: Subscribe

Subscribe to View DLA Inventory and Forecast...

Management Data 3415-01-384-0220

Subscribe
View Prices

Effective Date: Organization; Unit of Issue; Unit Price; Qty Unit Pack
Oct 2022: Department of the Army (DA); EA; Subscribe; 1
Oct 2021: Defense Logistics Agency (DS); EA; Subscribe; 1
Oct 2020: Defense Logistics Agency (DS); EA; Subscribe; 1
Oct 2019: Department of the Army (DA); EA; Subscribe; 1

Army

Materiel Category and Inventory Manager:

E: General Supplies (DLA/GSA Items)

Appropriation and Budget Activity:

2: Stock Fund Secondary Items

Management Inventory Segment:

2: Non-Repairable Items(Exclusive of Insurance and Provisioning Items)
This code will be used to identify items, which are not reparable.

Weapons System / End Item / Homogeneous Group:

00: DLA/GSA Material
DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item

Accounting Requirements:

N: Nonexpendable item.An item of Army property coded with an ARC of N in the AMDF.Nonexpendable items require property book accountability after issue from the stock record account.Commercial and fabricated items similar to items coded N in the AMDF are considered nonexpendable items.

Similar Supply Items to 3415-01-384-0220

Freight Information 3415-01-384-0220

3415-01-384-0220 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 133300. A Sub NMFC of Z. It has a NMFC Description of MACHINERY/MACHINES NOI. 3415-01-384-0220 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 63220 which rates the freight between FCL and LCL. 3415-01-384-0220 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 72E for ocean manifesting and military sealift. 3415-01-384-0220 is not classified as a special type of cargo when transported by water. 3415-01-384-0220 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.

Packaging Data 3415-01-384-0220

Responsible Activity
Packaging Data Source: Primary Inventory Control Activity (PICA); --

Item Pack Level (Unpackaged)

Item Size
Item Weight
Characteristics
Weight/Dimensions Category
Fragility
Item Preservation: --; --; Electrical Instrument; Over 10lb; Less than 85G; No Requirement

Unit Pack Level (Packaged)

Quantity per Pack
Unit Size
Unit Weight
Unit Cube
Preservation Method
Cleaning/Drying: 1; --; --; --; Physical Protection; Any Suitable Process

Preservation Material
Wrapping Material
Cushioning/Dunnage
Cushioning Thickness
Container
Special Marking: --; --; --; --; --; No special marking

Intermediate Pack Level

Quantity of Unit Packs
Container: --

Contracting Technical Data File (CTDF) 3415-01-384-0220 October 2021

Criticality and Quality

Critical Item Code:
Flight Safety:
Life Support:
Certified Samples:
Serialization:
First Article Test (FAT):
Certificate of Quality Compliance:
Production Lot Testing:
Special Testing:
Qualified Products List (QPL):

Commercial Properties

Government Furnished Material:
Government Furnished Tooling:
Government Furnished Property:
Price Evaluation Code:
Diminshing Manufacturing Sources:
Warranty:
Commerical Off The Shelf (COTS):
End Item Application:
Auctioning Candidate:
Source of Procurement:
Contract Option:

Restrictions

Boeing Rights Guard:
Export Controlled:
Controlled Technical Data Package (TDP):
Restricted Technical Data Package (TDP):
Contains Classified Material
Weapons System Indicator Code (WSIC):: N

Packaging Requirements

Packaging Determination Table:
Packaging Review Code:: N
Special Packaging Instruction Number (SPIN):
Special Packaging Instruction Number Revision:
Special Packaging Instruction Number Date:
Pallet Reference Number Required:
