3220-01-574-7416

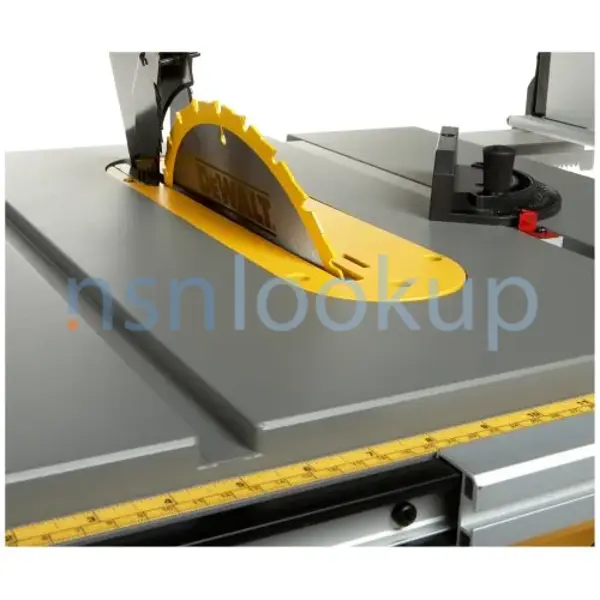

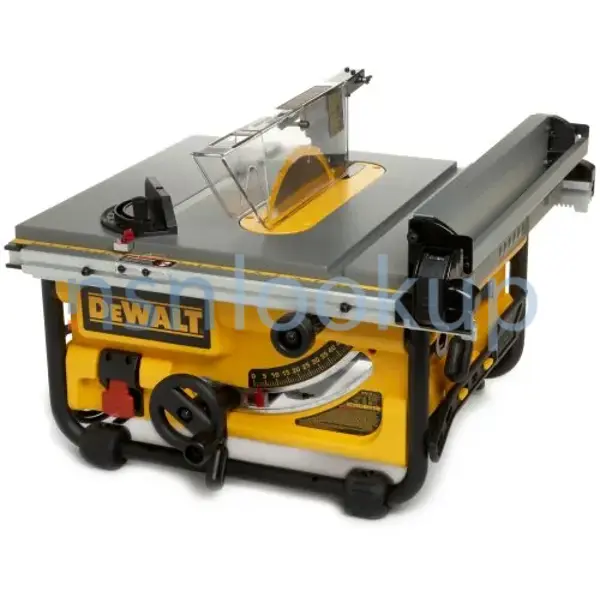

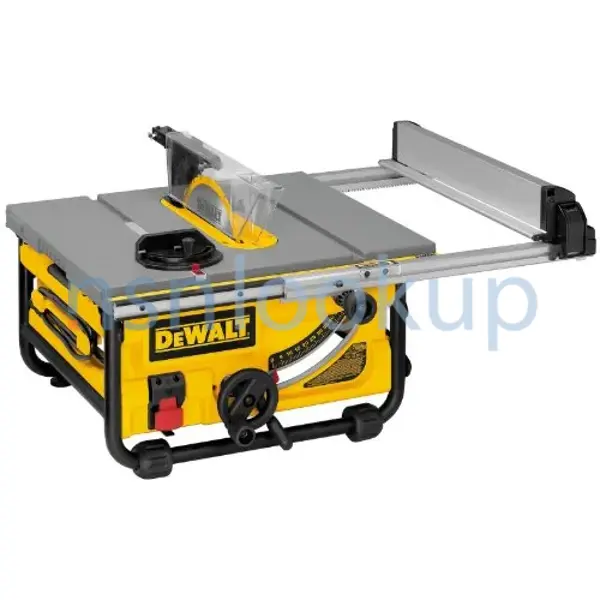

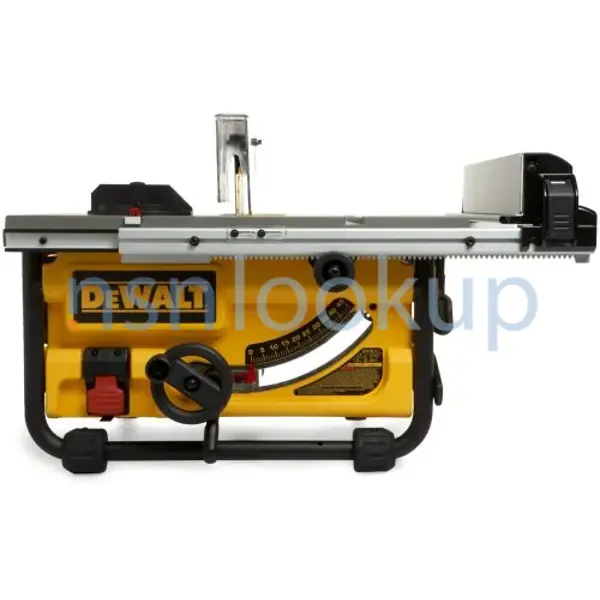

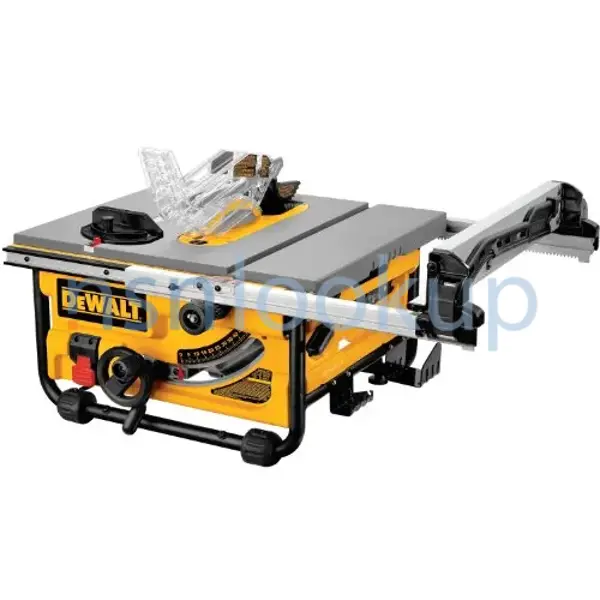

Table Type Circular Saw
3220015747416 015747416 DW745
A power driven machine using a circular blade for ripping, crosscutting, or angle cutting of wood. It consists of a table for holding the material to be cut, and a power operated mechanism for driving arbor mounted circular blade(s). View more Table Type Circular Saw
May 2023
3
Marketplace 3220-01-574-7416
Request a Quotation from participating marketplace vendors
Related Documents 3220-01-574-7416 1+ Documents (More...)
Every Day 3220-01-574-7416 RQST NE Updated Every Day 3220-01-574-7416 RQST Updated Every Day 3220-01
/fsg-32/fsc-3220/us 3220-01-574-7416 Table Type Circular Saw 3220015747416,DW745 Photo 1/6 3220-01-574
Restrictions 3220-01-574-7416
3220-01-574-7416 is a Table Type Circular Saw that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
Import and Export 3220-01-574-7416
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 3220-01-574-7416
- Canada (ZC01)
- Effective Date:
- 1 Jun 2009
Approved Sources 3220-01-574-7416
- Part Number
- Manufacturer
- Status
- DW745
- Manufacturer
- 07429 - Black And Decker Us Inc (Active)
- Primary Buy
- Primary Buy
Datasheet 3220-01-574-7416
- Characteristic
- Specifications
- FIIG
- Specifications
- T294-S
- Drive Method [ARCM]
- Electric Motor
- Electric Motor Quantity [AWLX]
- 1
- Arbor Tilt Angle In Deg [BXJR]
- 45.0
- Arbor Type [BTYL]
- Single
- Blade Maximum Diameter Accommodated [BPTM]
- 10.000 Inches
- Feed Type [AQDD]
- Hand
- Maximum Cutting Depth [BLWD]
- 3.125 Inches
- Maximum Ripping Width [BWNL]
- 16.000 Inches
- Mounting Type [AAXX]
- Table
- Rotational Speed Rating In Rpm [AMZE]
- 3850.0
- Saw Arbor Diameter Accommodated [BXJP]
- 0.625 Inches Nominal
- Special Features [FEAT]
- 15 Amps;Dust Port Diameter:2.500 Inches;Max Rip To Right Of Blade:16.000 Inches;Max Rip To Left Of Blade;12.000 Inches;Adjustable Rear Feet
- Part Name Assigned By Controlling Agency [CXCY]
- Dewalt Dw745
- Unit Type [APQB]
- Ripping
- Table Type [BNBB]
- Sliding Section
Similar Supply Items to 3220-01-574-7416
Freight Information 3220-01-574-7416
3220-01-574-7416 has freight characteristics managed by the Department of the Air Force.. 3220-01-574-7416 has a variance between NMFC and UFC when transported by rail and the description should be consulted.
