3130-01-500-3119
Plain Bearing Unit
3130015003119 015003119 KSC706624 2028M27P01 07482 2028M27P01 1387M89G01 2028M27
An assembled unit, composed of a housing incorporating a plain bearing, or bearings, designed to meet various or specific conditions of mounting. View more Plain Bearing Unit
November 2023
10
Marketplace 3130-01-500-3119
Request a Quotation from participating marketplace vendors
Related Documents 3130-01-500-3119 3+ Documents (More...)
RQST NE Updated Every Day 3130-01-500-3119 RQST Updated Every Day 3130-01-500-3119 RQST NE Related Documents
3130-01-500-3119 3+ Documents ( More... ) https//www.nsnlookup.com /fsg-31/fsc-3130/us 3130-01-500-3119
Plain Bearing Unit 3130015003119 015003119 Truck 3920002021279002021279,A-A-50122 $1 a day https
Force (DF)FAConsolidated With 3130-01-500-3119Defense Logistics Agency (DS)IAConsolidated With 3130-01-500-3119
Account Upgrade 3920-00-936-8588Hand Truck3920009368588 009368588 MIL-T-16549 RNCC 4 RNVC 1 DAC E 2028M27
Plain Bearing Unit 3130015003119 015003119 500-3119Plain Bearing Unit3130015003119 015003119 KSC706624
Restrictions 3130-01-500-3119
3130-01-500-3119 is a Plain Bearing Unit that is an aviation critical safety item or flight safety critical aircraft part. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
Import and Export 3130-01-500-3119
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 3130-01-500-3119
- US Air Force (FXGG)
- Effective Date:
- 1 Jul 2006
- Former MOE Rule:
- FXCX
- Poland (WP01)
- Effective Date:
- 1 Oct 2007
- Singapore (YJ01)
- Effective Date:
- 1 Nov 2014
- Republic of Korea (ZH01)
- Effective Date:
- 1 Apr 2008
- Greece (ZU01)
- Effective Date:
- 1 May 2008
Approved Sources 3130-01-500-3119
- Part Number
- Manufacturer
- Status
- 2028M27P01 07482
- Manufacturer
- 07482 - General Electric Company (Active)
- Source Control
- Source Control
- 2028M27P01
- 50632 - Kamatics Corporation (Active)
- Primary Buy
- Primary Buy
- 2028M27P01
- 07482 - General Electric Company (Active)
- Primary Buy
- Primary Buy
- 1387M89G01
- 07482 - General Electric Company (Active)
- Original Design
- Original Design
- KSC706624
- 50632 - Kamatics Corporation (Active)
- Incomplete Secondary Reference
- Incomplete Secondary Reference
- 2028M27
- 07482 - General Electric Company (Active)
- Informational Drawing
- Informational Drawing

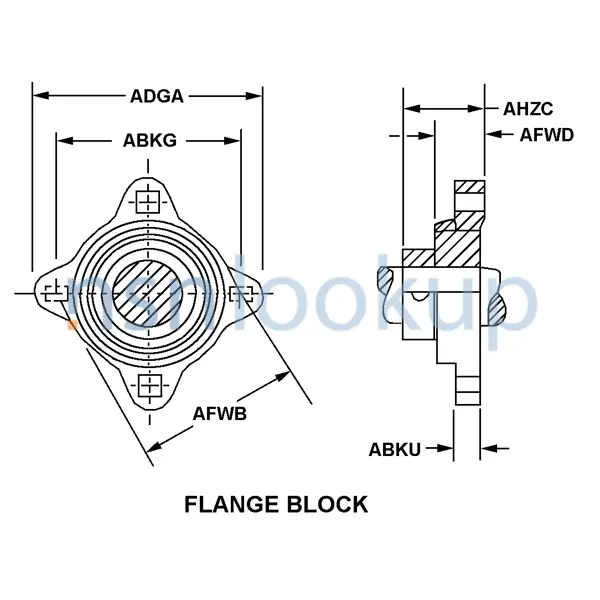

Datasheet 3130-01-500-3119
- Characteristic
- Specifications
- FIIG
- Specifications
- A093A0
- End Item Identification [AGAV]
- F110 Ge 129 Engine
- Alignment Type [AGZA]
- Self-Aligning
- Assembly Overall Length [AHZC]
- 1.000 Inches Nominal
- Bolt Circle Diameter [ABKG]
- 2.200 Inches Nominal
- Bore Diameter [ABXV]
- 1.5010 Inches Nominal
- Flange Thickness [ABKU]
- 0.120 Inches Nominal
- Housing Diameter [AFWB]
- 2.820 Inches Nominal
- Housing Length [AFWD]
- 0.605 Inches Nominal
- Material [MATT]
- Steel Corrosion Resisting Overall
- Mounting Hole Diameter [ABTB]
- 0.307 Inches Minimum And 0.317 Inches Maximum
- Load Capability Type [ANKK]
- Radial
- Overall Outside Diameter [ADGA]
- 2.598 Inches Minimum And 2.602 Inches Maximum
- Style Designator [STYL]
- Flange Block
Weapon Systems (WSDC) 3130-01-500-3119
DLA Procurement Analysis 3130-01-500-3119
- Last Stock Position:
- 67 In Stock
- DLA Administrative Lead Time:
- Subscribe
- DLA Production Lead Time:
- Subscribe
Management Data 3130-01-500-3119
Air Force
- Fund:
- SF
- Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point
- Budget:
- 9
- 57X4921.070 - General Support DIV - Air Force decentralized managed expense items (ERRC XB3, XF3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors
- Aggregation Code:
- PR
- F11O GE 100 ENGINE
- Price Validation Code:
- N
- The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
The price has not been analyzed or reviewed for accuracy.
ZOP or Standard price challenges are permissible but must be supported with adequate justification. However, if coded for Local Purchase (LP) or Fabrication/Manufacture as indicated with an (LM) Acquisition Advice Code of “L” or “F”, then it must be evaluated locally where purchased or fabricated.
- Expendability
Recoverability
Repairability: - N
- Expendable. Condemn at User. Stock Fund (except Munitions).
Similar Supply Items to 3130-01-500-3119
Freight Information 3130-01-500-3119
3130-01-500-3119 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 114800. A Sub NMFC of X. It has a NMFC Description of BEARING,ROLLER,THRUST. 3130-01-500-3119 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 58850 which rates the freight between FCL and LCL. 3130-01-500-3119 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 742 for ocean manifesting and military sealift. 3130-01-500-3119 is not classified as a special type of cargo when transported by water. 3130-01-500-3119 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 3130-01-500-3119
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- --
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- --
- --
- Plated/Coated Item
- 2lb or less, one dimension 2" or less, other dimensions less than 24"
- Above 110G
- Special Requirement
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- 1
- --
- --
- --
- --
- --
- --
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- --
- --
- --
- --
- --
- --
- --
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- See Method of Preservation
- --
Procurement History 3130-01-500-3119 1 Records
Contracting Technical Data File (CTDF) 3130-01-500-3119 October 2021
Criticality and Quality
- Critical Item Code:
- X
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- L
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- Y
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
