3130-01-264-6482
Ball Bearing Unit
3130012646482 012646482 SPB-24-OPN
An assembled unit, composed of a housing incorporating a single or multiple row ball bearing(s), designed to meet various or specific conditions of mounting. View more Ball Bearing Unit
November 2023
3
Marketplace 3130-01-264-6482
Request a Quotation from participating marketplace vendors
Related Documents 3130-01-264-6482 1+ Documents (More...)
SPB-24-OPN BEARING UNIT,BALL 2 EA NS Request Quotation Updated Every Day 3130-01-264-6482 RQST NE Updated
Every Day 3130-01-264-6482 RQST Updated Every Day 3130-01-264-6482 RQST NE Related Documents 3130-01
Restrictions 3130-01-264-6482
3130-01-264-6482 is a Ball Bearing Unit that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
Import and Export 3130-01-264-6482
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 3130-01-264-6482
- US Air Force (FGGG)
- Effective Date:
- 1 Feb 2005
- Former MOE Rule:
- FGCX
- Poland (WP01)
- Effective Date:
- 1 Jul 2007
Approved Sources 3130-01-264-6482
- Part Number
- Manufacturer
- Status
- SPB-24-OPN
- Manufacturer
- 96881 - Thomson Industries Inc (Active)
- Primary Buy
- Primary Buy
Datasheet 3130-01-264-6482
- Characteristic
- Specifications
- FIIG
- Specifications
- A093A0
- Alignment Type [AGZA]
- Self-Aligning
- Base Thickness [ACYB]
- 0.500 Inches Nominal
- Block Type [AMCL]
- Fixed
- Bore Diameter [ABXV]
- 1.5000 Inches Nominal
- Center To Center Distance Between Mounting Holes Along Length [ADFY]
- 2.490 Inches Minimum And 2.510 Inches Maximum
- Center To Center Distance Between Mounting Holes Along Width [ADFX]
- 4.115 Inches Minimum And 4.135 Inches Maximum
- Features Provided [CBBL]
- Ground Rolling Element Groove
- Height From Bottom Of Base To Bore Centerline [ANKP]
- 1.747 Inches Minimum And 1.753 Inches Maximum
- Housing Opening Width [CWHN]
- 0.750 Inches Minimum
- Housing Width [AFWE]
- 4.750 Inches Nominal
- Housing Height [AFWC]
- 2.938 Inches Nominal
- Housing Length [AFWD]
- 3.750 Inches Nominal
- Material [MATT]
- Aluminum Alloy 6061 Housing
- Material [MATT]
- Rubber Synthetic Seal
- Material [MATT]
- Steel Bearing
- Mounting Hole Diameter [ABTB]
- 0.2812 Inches Nominal
- Mounting Hole Type [CWJW]
- Round, Unthreaded
- Internal Fit-Up Designation [AGZH]
- Standard
- Load Capability Type [ANKK]
- Radial And Thrust
- Lubrication Fitting Type [AGKL]
- Self Lubricated
- Seal Location [ANKF]
- Both Ends
- Seal Type [AKRF]
- Contact

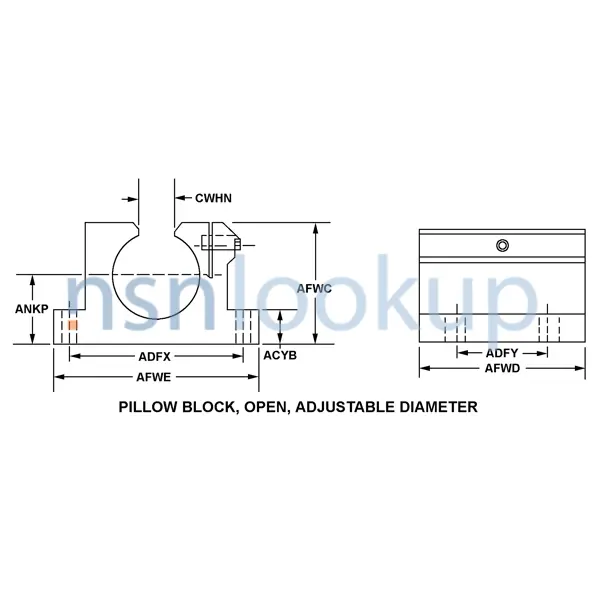

- Style Designator [STYL]
- Pillow Block, Open, Adjustable Diameter
Weapon Systems (WSDC) 3130-01-264-6482
DLA Procurement Analysis 3130-01-264-6482
- Last Stock Position:
- 22 In Stock
- DLA Administrative Lead Time:
- Subscribe
- DLA Production Lead Time:
- Subscribe
Management Data 3130-01-264-6482
Similar Supply Items to 3130-01-264-6482
Freight Information 3130-01-264-6482
3130-01-264-6482 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 114820. A Sub NMFC of X. It has a NMFC Description of BEARINGS/BUSHINGS NOI BALL/ROLLER. 3130-01-264-6482 is rated as class 77.5 when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 58860 which rates the freight between FCL and LCL. 3130-01-264-6482 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 742 for ocean manifesting and military sealift. 3130-01-264-6482 is not classified as a special type of cargo when transported by water. 3130-01-264-6482 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
