3130-01-096-9920
Bearing Unit Housing
3130010969920 010969920 160602
A single or multiple piece item without ball, plain or roller bearing(s). It is designed to meet various or specific conditions of mounting. For items with bearings, see BEARING UNIT, BALL; BEARING UNIT, PLAIN; and BEARING UNIT, ROLLER. View more Bearing Unit Housing
January 2023
4
Marketplace 3130-01-096-9920
Request a Quotation from participating marketplace vendors
Related Documents 3130-01-096-9920 5+ Documents (More...)
/fsg-31/fsc-3130/us 3130-01-096-9920 Bearing Unit Housing 3130010969920010969920 160602 A single or
Every Day 3130-01-096-9920 RQST NE Updated Every Day 3130-01-096-9920 RQST Updated Every Day 3130-01
/fsg-40/fsc-4030/uk
X 8145152133962 152133962 X8145152133962 152133962 160602/1000X700X800 Managed by Italy NSN Created on
Bearing Unit Housing 3130010969920 010969920 $1 a day Upgrade your Account Upgrade 3130-01-096-
X 8145152133962 152133962 X8145152133962 152133962 160602/1000X700X800 Managed by Italy NSN Created
Bearing Unit Housing 3130010969920 010969920 $1 a day Upgrade your Account Upgrade 3130-01-096-
8145152133962 152133962 X8145152133962 152133962160602 https//www.nsnlookup.com /fsg-31/fsc-3130/us 3130-01-096-9920
https//www.nsnlookup.com /fsg-31/fsc-3130/us 3130-01-096-9920 Bearing Unit Housing 3130010969920
Bearing Unit Housing 3130010969920 010969920 997695553,160602 JavaScript in your web browser .
152133962 160602/1000X700X800 Managed by Italy Upgrade your Account Upgrade 3130-01-096-9920Bearing
Restrictions 3130-01-096-9920
3130-01-096-9920 is a Bearing Unit Housing that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
Import and Export 3130-01-096-9920
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 3130-01-096-9920
- US Coast Guard (C056)
- Effective Date:
- 1 Jul 2010
- Former MOE Rule:
- C055
- Malaysia (YW01)
- Effective Date:
- 1 Jan 1998
Approved Sources 3130-01-096-9920
- Part Number
- Manufacturer
- Status
- 160602
- Manufacturer
- 15434 - Cummins Inc. (Active)
- Primary Buy
- Primary Buy
Datasheet 3130-01-096-9920
- Characteristic
- Specifications
- FIIG
- Specifications
- A093A0
- End Item Identification [AGAV]
- Fresh Water Pump,Nsn 4320-01-088-9367,Used On Main Propulsion Diesel Engines,Cummins Model Vt-903M Onboard 41 Ft Utb Coast Guard Vessels
- Bore Diameter [ABXV]
- 1.2500 Inches Nominal
- Counterbore Depth [AAWZ]
- 0.500 Inches Nominal
- Counterbore Diameter [AAWY]
- 1.437 Inches Nominal
- Flange Thickness [ABKU]
- 0.250 Inches Nominal
- Housing Diameter [AFWB]
- 5.625 Inches Nominal
- Housing Length [AFWD]
- 0.968 Inches Nominal
- Material [MATT]
- Iron Cast Overall
- Shaft End Type [ANJS]
- Open
- Pilot Diameter [AAVL]
- 5.250 Inches Nominal
- Pilot Length [AJWQ]
- 0.656 Inches Nominal
- Special Features [FEAT]
- O/A Length 1.156 In. Nom.

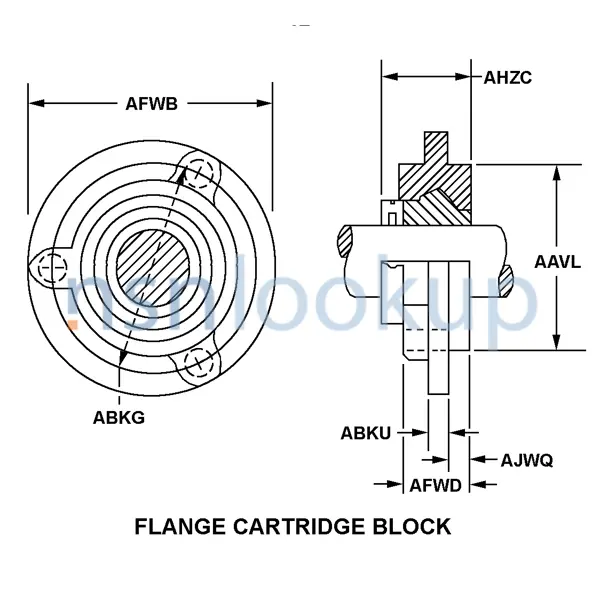

- Style Designator [STYL]
- Flange Cartridge Block
Management Data 3130-01-096-9920
- Effective Date
- Organization
- Unit of Issue
- Unit Price
- Qty Unit Pack
- Unit of Issue
- Dec 2012
- US Coast Guard (GP)
- EA
- Subscribe
- 1
- EA
Coast Guard
- Inventory Activity:
- S
- Stock Fund item managed for the Coast Guard by the respective Inventory Control Point. A funded requisition is required
- Serial Number Control:
- 0
- Item not controlled by serial number
- Material Control:
- 9
- Non-Hazardous or Non-Sensitive Item
Similar Supply Items to 3130-01-096-9920
Freight Information 3130-01-096-9920
3130-01-096-9920 has freight characteristics managed by the US Postal Service (USPS).. 3130-01-096-9920 has a variance between NMFC and UFC when transported by rail and the description should be consulted.
