3120-01-628-5528
Track Roller Plain Bearing
3120016285528 016285528 PAC3016 2CPP4 06A8123105
A detachable assembly consisting of an outer and inner ring, designed for use in a track roller or similar application. It is used to carry a load and reduce sliding friction. It does not employ rolling elements, but may incorporate non-metallic liners or sleeves to aid in reducing friction and/or providing lubrication. See also BEARING, BALL, TRACK ROLLER; and BEARING, ROLLER, TRACK ROLLER. Excludes BEARING, PLAIN, SPHERICAL and BEARING, PLAIN, SELF-ALIGNING. View more Track Roller Plain Bearing
November 2023
2
Marketplace 3120-01-628-5528
Request a Quotation from participating marketplace vendors
Related Documents 3120-01-628-5528 5+ Documents (More...)
BUY NE FedMall Updated Every Day 2CPP4 RQST NE Updated Every Day 3120-01-628-5528 RQST NE Updated
Every Day 3120-01-628-5528 RQST Updated Every Day 3120-01-628-5528 RQST NE Related Documents 3120-01
/fsg-67/fsc-6780/it
Track Roller Plain Bearing 3120016285528 3120-01-628-5528 RQST NE Related Documents 3120-01 https
Track Roller Plain Bearing 3120016285528 2052 6780152162052 https//www.nsnlookup.com /fsg-40/fsc
Track Roller Plain Bearing 3120016285528 www.nsnlookup.com /fsg-31/fsc-3120/us 3120-01-628-5528
Transducer 6695991063564 Motional Pickup Transducer https//www.nsnlookup.com https Roller Plain Bearing 3120016285528
Track Roller Plain Bearing 3120016285528 2052 6780152162052 152162052 PORTAPELLICOLA https/ https
Restrictions 3120-01-628-5528
3120-01-628-5528 is a Track Roller Plain Bearing that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
Import and Export 3120-01-628-5528
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 3120-01-628-5528
- US Army (A919)
- Effective Date:
- 1 May 2014
- Supplementary Receivers:
- BF
Approved Sources 3120-01-628-5528
- Part Number
- Manufacturer
- Status
- PAC3016
- Manufacturer
- 79879 - Pacific Bearing Company (Active)
- Primary Buy
- Primary Buy
- 2CPP4
- 25795 - W.W. Grainger, Inc. (Active)
- Primary Buy
- Primary Buy
- 06A8123105
- 5B5M3 - Devcom Chemical Biological Center (Active)
- Vendor Drawing
- Vendor Drawing
Datasheet 3120-01-628-5528
- Characteristic
- Specifications
- FIIG
- Specifications
- A045A0
- End Item Identification [AGAV]
- 4910-01-539-6129
- Material [MATT]
- Steel Body
- Material [MATT]
- Steel Rod End Body
- Outer Member Outside Diameter [AGGF]
- 1.380 Inches Nominal
- Outer Member Width [AGGH]
- 0.380 Inches Nominal
- Part Name Assigned By Controlling Agency [CXCY]
- Track Roller
- Special Features [FEAT]
- Stud Dia Is 0.3130 In (Nom);Stud Length Is 0.625 In (Nom);Thread Size Is 0.3125 In (Nom);Thread Length Is 0.450 In (Nom);Threads/Inch Are 18;Bearing Type Is Ball

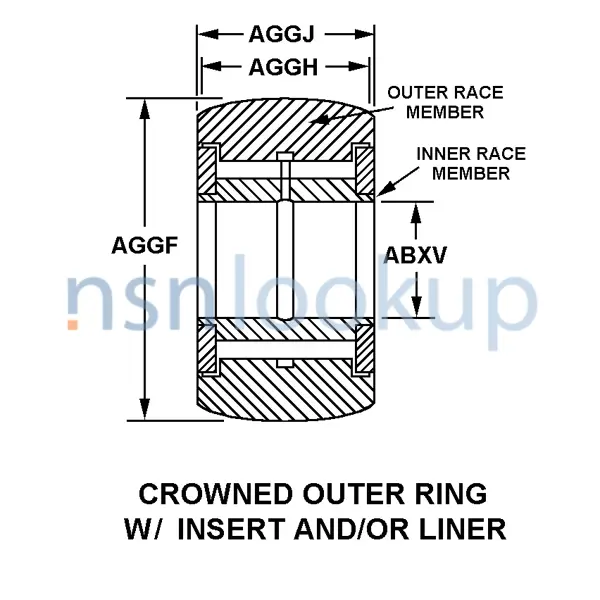

- Style Designator [STYL]
- Crowned Outer Ring W/Insert And/Or Liner
- Surface Treatment [SFTT]
- Zinc Body
- Surface Treatment [SFTT]
- Zinc Rod End Body
DLA Procurement Analysis 3120-01-628-5528
- Last Stock Position:
- 331 In Stock
- DLA Administrative Lead Time:
- Subscribe
- DLA Production Lead Time:
- Subscribe
Management Data 3120-01-628-5528
Army
- Materiel Category and Inventory Manager:
- T
- Industrial Supplies (DLA/GSA Items)
- Appropriation and Budget Activity:
- 2
- Stock Fund Secondary Items
- Management Inventory Segment:
- 2
- Non-Repairable Items(Exclusive of Insurance and Provisioning Items)
This code will be used to identify items, which are not reparable.
- Weapons System / End Item / Homogeneous Group:
- 00
- DLA/GSA Material
DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
- Accounting Requirements:
- X
- Expendable item.An item of Army property coded with an ARC of X in the AMDF. Expendable items require no formal accountability after issue from a stock record account.Commercial and fabricated items similar to items coded X in the AMDF are considered expendable items.
NATO Stock Numbers Related to 3120-01-628-5528
Freight Information 3120-01-628-5528
3120-01-628-5528 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 114800. A Sub NMFC of X. It has a NMFC Description of BEARING,ROLLER,THRUST. 3120-01-628-5528 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 58850 which rates the freight between FCL and LCL. 3120-01-628-5528 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 742 for ocean manifesting and military sealift. 3120-01-628-5528 is not classified as a special type of cargo when transported by water. 3120-01-628-5528 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Procurement History 3120-01-628-5528 7 Records
- Contract
- Date
- CAGE
- Quantity
- Net Price
- Std Price
- CAGE
- SPE4A619V4097
- 28 Nov 2018
- Subscribe
- 537
- Subscribe
- Subscribe
- Subscribe
- SPE4A419V0663
- 22 Oct 2018
- Subscribe
- 62
- Subscribe
- Subscribe
- Subscribe
- SPE4A618V402K
- 31 Jul 2018
- Subscribe
- 100
- Subscribe
- Subscribe
- Subscribe
- SPE4A618V333H
- 11 Jul 2018
- Subscribe
- 62
- Subscribe
- Subscribe
- Subscribe
- SPE4A418V8378
- 11 Jun 2018
- Subscribe
- 2
- Subscribe
- Subscribe
- Subscribe
- SPE4A418V6650
- 24 Apr 2018
- Subscribe
- 1
- Subscribe
- Subscribe
- Subscribe
- SPE4A416V6926
- 11 Mar 2016
- Subscribe
- 2
- Subscribe
- Subscribe
- Subscribe
Contracting Technical Data File (CTDF) 3120-01-628-5528 October 2021
Criticality and Quality
- Critical Item Code:
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- N
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- Y
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
