3120-01-528-8501
Sleeve Bushing
3120015288501 015288501 TB-520 D4232 ITEM-176-TB-520 D-4232

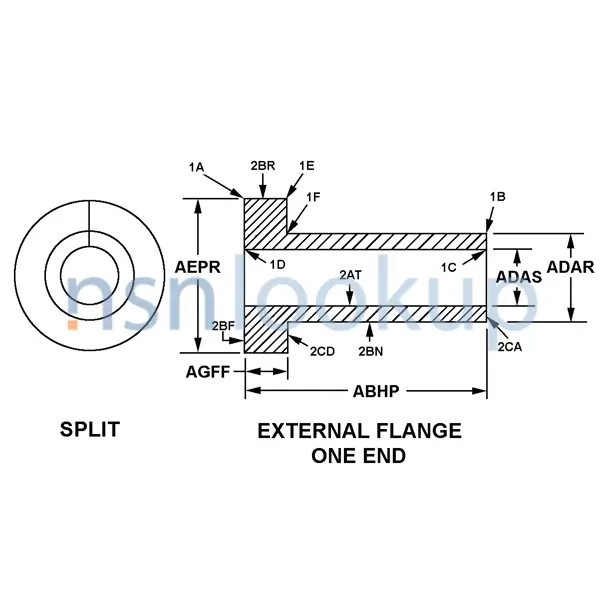

A tubular shaped unthreaded item with or without a flange at one end designed to be inserted into a hole to reduce the inside diameter of the hole and to protect the surrounding body structure from damage resulting from stress, strain, and/or vibration. The overall length must exceed 25 percent of the outside diameter or the shortest distance between peripheral flats of the body. Includes items which are divided into two or more segments which includes 180 degrees (3.141 radians) or less of the bearing periphery. For items made of rubber, see BUSHING, NONMETALLIC. See also BEARING, SLEEVE; BUSHING, TAPERED; SPACER, SLEEVE; INSULATOR, BUSHING; and BUSHING, ELECTRICAL CONDUCTOR. Excludes BUSHING, DRILL, JIG. View more Sleeve Bushing
May 2023
1
Marketplace 3120-01-528-8501
Request a Quotation from participating marketplace vendors
Related Documents 3120-01-528-8501 3+ Documents (More...)
BUY NE FedMall Updated Every Day 3120-01-528-8501 RQST NE Updated Every Day 3120-01-528-8501 RQST
Updated Every Day 3120-01-528-8501 RQST NE Related Documents 3120-01-528-8501 3+ Documents ( More...
//www.nsnlookup.com /fsg-51/fsc-5140/us 5140-01-672-6632 Portable Tool Box 5140016726632016726632 TB-520
Day 5140-01-672-6632 RQST NE Related Documents https//www.nsnlookup.com /fsg-31/fsc-3120/us 3120-01-528-8501
Sleeve Bushing 3120015288501 015288501,TB-520 $1 a day Upgrade your Account Upgrade 3120-01-528
-8501Sleeve Bushing3120015288501 015288501 TB-520 D4232 Upgrade for $1 a day Upgrade your Account Upgrade
Restrictions 3120-01-528-8501
3120-01-528-8501 is a Sleeve Bushing that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
Import and Export 3120-01-528-8501
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 3120-01-528-8501
- US Navy (N9BG)
- Effective Date:
- 1 Sep 2006
- Former MOE Rule:
- N9GD
- Supplementary Collaborators:
- HD
Approved Sources 3120-01-528-8501
- Part Number
- Manufacturer
- Status
- TB-520
- Manufacturer
- 08832 - Schroeder Industries Llc (Active)
- Primary Buy
- Primary Buy
- D4232 ITEM-176-TB-520
- 08832 - Schroeder Industries Llc (Active)
- Secondary Buy
- Secondary Buy
- D-4232
- 08832 - Schroeder Industries Llc (Active)
- Informational Drawing
- Informational Drawing
Datasheet 3120-01-528-8501
- Characteristic
- Specifications
- FIIG
- Specifications
- A045A0
- End Item Identification [AGAV]
- Hydraulic Teststand Htb-50E
- Body Outside Diameter [ADAR]
- 3.8750 Inches Minimum And 4.0000 Inches Maximum
- Flange Width [AGFF]
- 0.6250 Inches Nominal
- Material [MATT]
- Steel Overall
- Overall Length [ABHP]
- 2.8750 Inches Nominal
- Part Name Assigned By Controlling Agency [CXCY]
- V Belt Sheave Bushing(Motor); Split Taper Bushings
- Special Features [FEAT]
- Outside Flange Diameter Is 5" And Some Fraction Which Is Not Determinable With The Tech Data In Possesion; The Outside Diameter Is Tapered Where The Small End In 3.8750" And The Large End Is 4.0000"; There Is A Keyway In The Bushing; And Three Cap Screw Holes; And Two Other Holes All Around The Flange Portion; The Bore Range Is 1.125"- Approximately 2.75" But Is A Bit Unreadable On The Tech Data
- Style Designator [STYL]
- Split, External Flange One End, Internal Flange One End
