3120-01-524-8130
Self-Aligning Plain Bearing
3120015248130 015248130 0,2MS-57153-10-T 13050361 AM-04-00-20206
A detachable assembly in or on which a journal, gudgeon, pivot, or the like moves. It is used to carry a load and to reduce sliding friction. It does not employ rolling elements. The item consists of a bored precision ground ball (or spherical plain bearing) around which an outer ring is fitted. The assembly may be either separable or nonseparable. Excludes BEARING, PLAIN, ROD END and BEARING, PLAIN, SPHERICAL. View more Self-Aligning Plain Bearing
January 2023
8
Marketplace 3120-01-524-8130
Request a Quotation from participating marketplace vendors
Related Documents 3120-01-524-8130 2+ Documents (More...)
RQST NE Updated Every Day 3120-01-524-8130 RQST Updated Every Day 3120-01-524-8130 RQST NE Related Documents
3120-01-524-8130 2+ Documents ( More... ) https//www.nsnlookup.com /fsg-31/fsc-3120/us 3120-01-524-8130
Self-Aligning Plain Bearing 3120015248130 3120-01-524-8130Self-Aligning Plain Bearing3120015248130
015248130 0,2MS-57153-10-T 13050361 AM-04-00-20206 3120/us 3120-01-524-8130 Self-Aligning Plain Bearing
Restrictions 3120-01-524-8130
3120-01-524-8130 is a Self-Aligning Plain Bearing that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
Import and Export 3120-01-524-8130
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 3120-01-524-8130
- Canada (ZC01)
- Effective Date:
- 1 Dec 2005
Approved Sources 3120-01-524-8130
- Part Number
- Manufacturer
- Status
- 0,2MS-57153-10-T
- Manufacturer
- 09257 - Trelleborg Sealing Solutions Us, (Active)
- Primary Buy
- Primary Buy
- 0,2MS-57153-10-T
- U2533 - Trelleborg Sealing Solutions Uk Ltd (Replaced)
- Secondary Buy
- Secondary Buy
- 13050361
- 19200 - Combat Capabilities Development (Active)
- Secondary Buy
- Secondary Buy
- AM-04-00-20206
- K4244 - Bae Systems Gcs International Ltd (Active)
- Secondary Buy
- Secondary Buy
Datasheet 3120-01-524-8130
- Characteristic
- Specifications
- FIIG
- Specifications
- A045A0
- Material [MATT]
- Plastic Overall

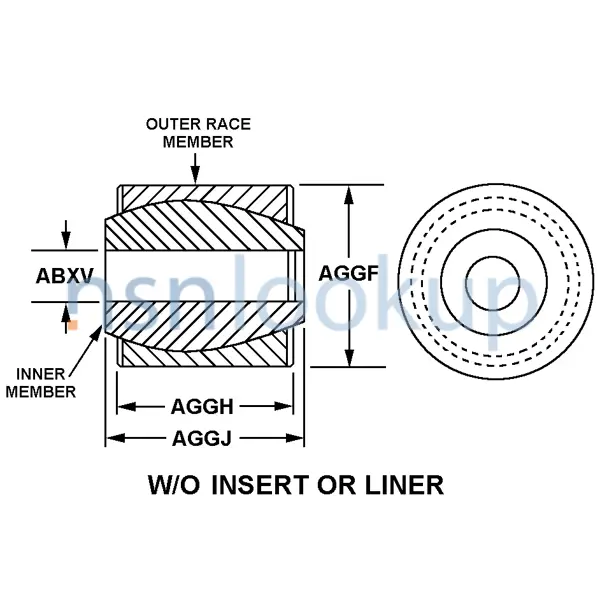

- Style Designator [STYL]
- Without Insert Or Liner
- Bore Diameter [ABXV]
- 15.0 Millimeters Nominal
- Outer Member Outside Diameter [AGGF]
- 15.2 Millimeters Nominal
- Outer Member Width [AGGH]
- 200.0 Millimeters Nominal
- Inner Member Width [AGGJ]
- 15.0 Millimeters Nominal
- End Item Identification [AGAV]
- Lw155 Howitzer
- Functional Description [FTLD]
- To Prevent Metal To Metal Contact Between Shaft And Housing And Prevent Ingress Of Dirt, Whilst Absorbing Shock Loads
- Supplementary Features [SUPP]
- Plain, Ptfe Based, Thermoplastic Strip Cut And Formed To Assembled Requirements; Oper Temp Range -60 Deg C To +200 Deg C
- Part Name Assigned By Controlling Agency [CXCY]
- Slydring 2
Similar Supply Items to 3120-01-524-8130
Freight Information 3120-01-524-8130
3120-01-524-8130 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 114820. A Sub NMFC of X. It has a NMFC Description of BEARINGS/BUSHINGS NOI BALL/ROLLER. 3120-01-524-8130 is rated as class 77.5 when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 58860 which rates the freight between FCL and LCL. 3120-01-524-8130 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 742 for ocean manifesting and military sealift. 3120-01-524-8130 is not classified as a special type of cargo when transported by water. 3120-01-524-8130 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
