3120-01-470-8316
Cam Follower Plain Bearing
3120014708316 014708316 KRP149603TC KRP149603T
A detachable assembly, which provides rolling contact with a cam or similar device, and converts reciprocating or oscillating motion to linear motion. The assembly consists of an outer ring and and integral stud. It does not employ rolling elements but may incorporate nonmetallic liners or sleeves to aid in reducing friction and/or providing lubrication. See also CAM FOLLOWER, NEEDLE BEARING. View more Cam Follower Plain Bearing
January 2023
4
Marketplace 3120-01-470-8316
Request a Quotation from participating marketplace vendors
Related Documents 3120-01-470-8316 5+ Documents (More...)
3120-01-470-8316 5+ Documents ( More... ) https//www.nsnlookup.com /fsg-31/fsc-3120/us 3120-01-470-8316
/fsg-31/fsc-3120/us 3120-01-470-8316 RQST NE Updated Every Day 3120-01-470-8316 RQST Updated Every Day
Cam Follower Plain Bearing 3120014708316 Day 3120-01-470-8316 RQST NE Related Documents https//
459-2895 3120-14-518-4496 3120-14-541-7231 3120-33-203-5121 3120-14-503-8511 3120-22-621-7024 3120-01-470-8316
Cam Follower Plain Bearing 3120014708316 8415-21-104-6064 459-2895 3120-14-518-4496 3120-14-541
-7231 3120-33-203-5121 3120-14-503-8511 3120-22-621-7024 3120-01-470-8316 https//www.nsnlookup.com /fsg
Cam Follower Plain Bearing 3120014708316 Day 3120-01-470-8316 RQST NE Related Documents https//
203-5121 3120-14-518-4496 3120-14-541-7231 3120-33-203-5121 3120-14-503-8511 3120-22-621-7024 3120-01-470-8316
Cam Follower Plain Bearing 3120014708316 www.nsnlookup.com /fsg-84/fsc-8415/ca 8415-21-104-6064
459-2895 3120-14-518-4496 3120-14-541-7231 3120-33-203-5121 3120-14-503-8511 3120-22-621-7024 3120-01-470-8316
Restrictions 3120-01-470-8316
3120-01-470-8316 is a Cam Follower Plain Bearing that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
Import and Export 3120-01-470-8316
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 3120-01-470-8316
- Spain (YB01)
- Effective Date:
- 1 Jan 2000
- Germany (ZG01)
- Effective Date:
- 1 Dec 2003
- Italy (ZR01)
- Effective Date:
- 1 Dec 2007
Approved Sources 3120-01-470-8316
- Part Number
- Manufacturer
- Status
- KRP149603TC
- Manufacturer
- 50632 - Kamatics Corporation (Active)
- Primary Buy
- Primary Buy
- KRP149603T
- 50632 - Kamatics Corporation (Active)
- Informational Drawing
- Informational Drawing
Datasheet 3120-01-470-8316
- Characteristic
- Specifications
- FIIG
- Specifications
- A045A0
- Cam End Diameter [BRNM]
- 0.2947 Inches Minimum And 0.2953 Inches Maximum
- Material [MATT]
- Nickel Alloy Overall
- Outer Member Outside Diameter [AGGF]
- 0.9554 Inches Minimum And 0.9567 Inches Maximum
- Outer Member Width [AGGH]
- 0.3540 Inches Nominal
- Material Document And Classification [MDCL]
- Ams5663 National Spec All Material Responses Overall
- Shank Style [AAZF]
- Externally Threaded
- Overall Length [ABHP]
- 1.0390 Inches Nominal
- Special Features [FEAT]
- Radial Ultimate Load: 2320 Lbs; Max Opertaing Load: 1624 Lbs; Max Operating Temperature: 626 Deg F
- Thread Series Designator [THSD]
- Mj
- Stud Length [AGXF]
- 0.6772 Inches Minimum And 0.6850 Inches Maximum

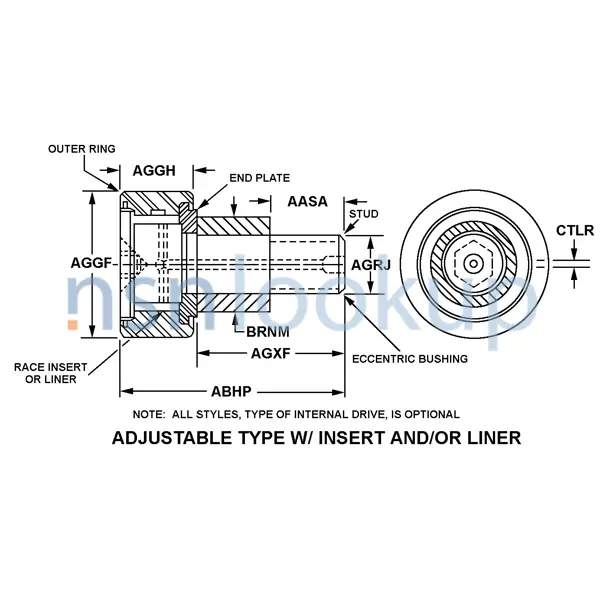

- Style Designator [STYL]
- Adjustable Type W/Insert And/Or Liner
- Surface Treatment Document And Classification [STDC]
- Qq-C-320, Ty-Ii, Cl-2 Fed Spec 1St Treatment Response Race Insert
- Surface Treatment Document And Classification [STDC]
- Qq-C-320, Ty-Ii, Cl-2 Fed Spec 1St Treatment Response Rod End Body
- Surface Treatment [SFTT]
- Chromium Race Insert
- Surface Treatment [SFTT]
- Chromium Rod End Body
- Thread Direction [AAJF]
- Right-Hand
Similar Supply Items to 3120-01-470-8316
Freight Information 3120-01-470-8316
3120-01-470-8316 has freight characteristics.. 3120-01-470-8316 has a variance between NMFC and UFC when transported by rail and the description should be consulted.
