3120-01-458-6585
Linear-Rotary Motion Roller
3120014586585 014586585 ZC8-28-021-1
A cylindrical body having a centrally located hole to accommodate a pin or shaft for attachment to a push rod guide, yoke, rocker arm, turntable, or rail. The item provides a rolling contact with the face of a valve stem, or the lobes of a cam ring or camshaft on engines, fuel injection pumps, latches, turntables, parallel bearing surfaces requiring a roller support, and the like. Excludes BEARING, ROLLER, CYLINDRICAL; ROLLER, ELECTRICAL SWITCH; and friction bearings. See also CAM FOLLOWER, NEEDLE BEARING. View more Linear-Rotary Motion Roller
January 2023
5
Marketplace 3120-01-458-6585
Request a Quotation from participating marketplace vendors
Related Documents 3120-01-458-6585 1+ Documents (More...)
Linear-Rotary Motion Roller 3120014586585 RQST NE Updated Every Day 3120-01-458-6585 RQST Updated Every
/fsg-31/fsc-3120/us 3120-01-458-6585 Linear-Rotary Motion Roller 3120014586585 United States (US) 4.
Restrictions 3120-01-458-6585
3120-01-458-6585 is a Linear-Rotary Motion Roller that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
Import and Export 3120-01-458-6585
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 3120-01-458-6585
- Taiwan, Province of China (YE01)
- Effective Date:
- 1 Feb 2015
Approved Sources 3120-01-458-6585
- Part Number
- Manufacturer
- Status
- ZC8-28-021-1
- Manufacturer
- S7549 - Aidc/Aerospace Industrial (Active)
- Primary Buy
- Primary Buy
Datasheet 3120-01-458-6585
- Characteristic
- Specifications
- FIIG
- Specifications
- T267-K

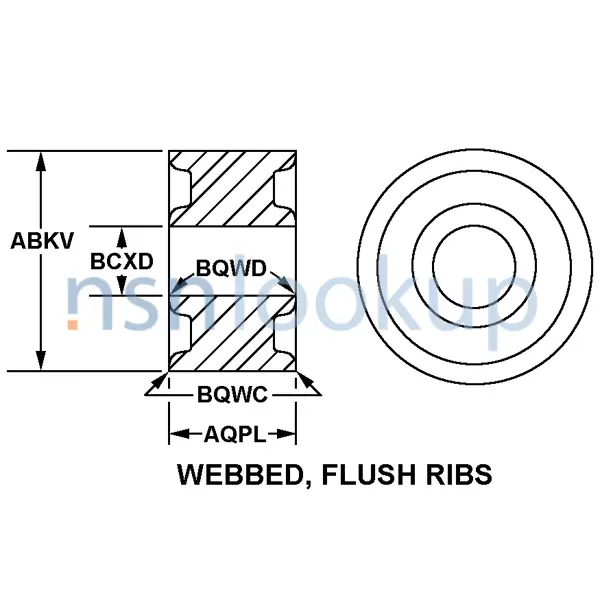

- Style Designator [STYL]
- Webbed, Flush Ribs
- Outside Diameter [ABKV]
- 0.800 Inches Nominal
- Bore Inside Diameter [BCXD]
- 0.600 Inches Nominal
- Special Features [FEAT]
- Name On Drawing Is Roller-Guide Latch; Roller Has A Center Hole Running Full Length Of Roller That Measures 0.255 Inches Minimum And 0.265 Inches Maximum Diameter
- End Item Identification [AGAV]
- Pacer Dawn
Similar Supply Items to 3120-01-458-6585
Freight Information 3120-01-458-6585
3120-01-458-6585 has freight characteristics managed by the Department of Energy (DOE).. 3120-01-458-6585 has a variance between NMFC and UFC when transported by rail and the description should be consulted.
