3120-01-335-3428
Sleeve Bushing
3120013353428 013353428 12295731
A tubular shaped unthreaded item with or without a flange at one end designed to be inserted into a hole to reduce the inside diameter of the hole and to protect the surrounding body structure from damage resulting from stress, strain, and/or vibration. The overall length must exceed 25 percent of the outside diameter or the shortest distance between peripheral flats of the body. Includes items which are divided into two or more segments which includes 180 degrees (3.141 radians) or less of the bearing periphery. For items made of rubber, see BUSHING, NONMETALLIC. See also BEARING, SLEEVE; BUSHING, TAPERED; SPACER, SLEEVE; INSULATOR, BUSHING; and BUSHING, ELECTRICAL CONDUCTOR. Excludes BUSHING, DRILL, JIG. View more Sleeve Bushing
November 2023
6
Product Information 3120-01-335-3428
T-157 Short Bushing

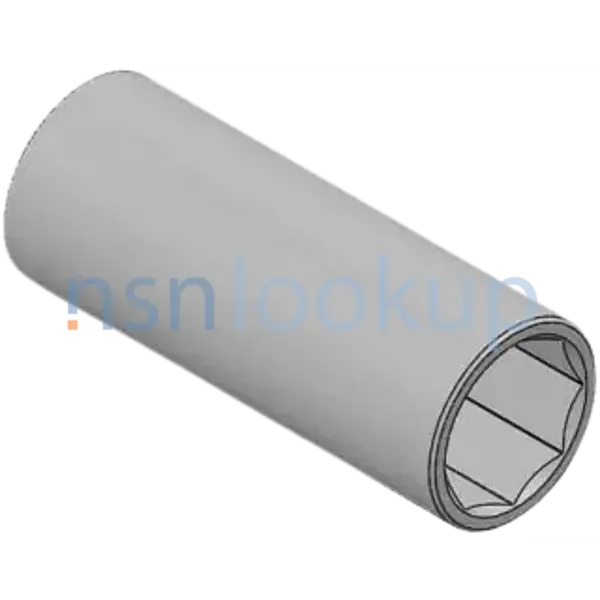

Short bushing utilized in single pin track assemblies for the Bradley and MLRS family of vehicles.
Marketplace 3120-01-335-3428
Request a Quotation from participating marketplace vendors
Related Documents 3120-01-335-3428 1+ Documents (More...)
/fsg-31/fsc-3120/us
ARMYPN:12295731 BUSHING,SLEEVE RQST NS Request Quotation Subscribe to View Vendor Details... 12295731
3120-01-335-3428 RQST NE Updated Every Day 3120-01-335-3428 RQST Updated Every Day 3120-01-335-3428
Restrictions 3120-01-335-3428
3120-01-335-3428 is a Sleeve Bushing that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
Import and Export 3120-01-335-3428
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 3120-01-335-3428
- US Army (A919)
- Effective Date:
- 1 Sep 2006
- Former MOE Rule:
- A180
- Supplementary Receivers:
- AZ
Approved Sources 3120-01-335-3428
- Part Number
- Manufacturer
- Status
- 12295731
- Manufacturer
- 19207 - U S Army Tank Automotive Command (Active)
- Primary Buy
- Primary Buy
- 12295731
- B1478 - Varec Nv (Active)
- Secondary Buy
- Secondary Buy
Datasheet 3120-01-335-3428
- Characteristic
- Specifications
- FIIG
- Specifications
- A045A0
- Body Inside Diameter [ADAS]
- 0.8150 Inches Minimum And 0.8190 Inches Maximum
- Body Outside Diameter [ADAR]
- 1.0580 Inches Minimum And 1.0680 Inches Maximum
- Corner Shape [BZLX]
- Square All Corners
- Hardness Rating [CQFM]
- 30.0 Rockwell C Minimum Overall And 35.0 Rockwell C Maximum Overall
- Material [MATT]
- Steel Comp 4130 Overall Or Steel Comp 8630 Overall Or Steel Comp 5130 Overall
- Overall Length [ABHP]
- 2.4700 Inches Minimum And 2.4800 Inches Maximum
- Special Features [FEAT]
- Outside Surface Is Covered In Rubber Which Extends Outside Diameter To 1.5900 In. Min; 1.6000 In. Max; Inside Diameter Is Octagonal
