3120-01-300-2969
V Bearing
3120013002969 013002969 9360307
A cylindrical device, primarily designed to furnish a bearing surface for a low-speed oscillating shaft. The item consists of a precision machined or inclosed V or modified V groove and may include a drilled hole for spring loading. View more V Bearing
November 2023
5
Marketplace 3120-01-300-2969
Request a Quotation from participating marketplace vendors
Related Documents 3120-01-300-2969 5+ Documents (More...)
/fsg-31/fsc-3120/us 3120-01-300-2969 V Bearing 3120013002969 013002969,9360307 Updated Every Day 3120
-01-300-2969 RQST NE Updated Every Day 3120-01-300-2969 RQST Updated Every Day 3120-01-300-2969 RQST
3120-14-567-9337 3120/fr 3120-14-278-2781 https//www.nsnlookup.com /fsg-31/fsc-3120/us 3120-01-300-2969
V Bearing 3120013002969 013002969,9360307 142782781,EX319361 179-5958 3120-01-300-2969 3120-14-
3120-01-326 https//www.nsnlookup.com /fsg-31/fsc https//www.nsnlookup.com /fsg-31/fsc-3120/us 3120-01-300-2969
V Bearing 3120013002969 013002969,9360307 Day 3120-01-300-2969 RQST Updated Every Day https https
V Bearing 3120013002969 013002969,9360307 5196 V Bearing 3120013265196 013265196,61061 3120-01-
-2032 3110-15-179 https Bearing 3120002530464 002530464,MS35688-1 112-8675 3120 -15-179-5958 3120-01-300-2969
V Bearing 3120013002969 013002969,9360307 V Bearing 3120002271196 002271196,7595152 112- https/
-00-518-1727 V Bearing 3120005181727 005181727,5181727 www.nsnlookup.com /fsg-31/fsc-3120/us 3120-01-300-2969
Restrictions 3120-01-300-2969
3120-01-300-2969 is a V Bearing that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
Import and Export 3120-01-300-2969
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 3120-01-300-2969
- US Army (A919)
- Effective Date:
- 1 Sep 2006
- Former MOE Rule:
- A180
- Supplementary Receivers:
- BF
- Spain (YB01)
- Effective Date:
- 1 Apr 1998
- Belgium (ZB01)
- Effective Date:
- 1 Apr 2002
Approved Sources 3120-01-300-2969
- Part Number
- Manufacturer
- Status
- 9360307
- Manufacturer
- 19200 - Combat Capabilities Development (Active)
- Primary Buy
- Primary Buy

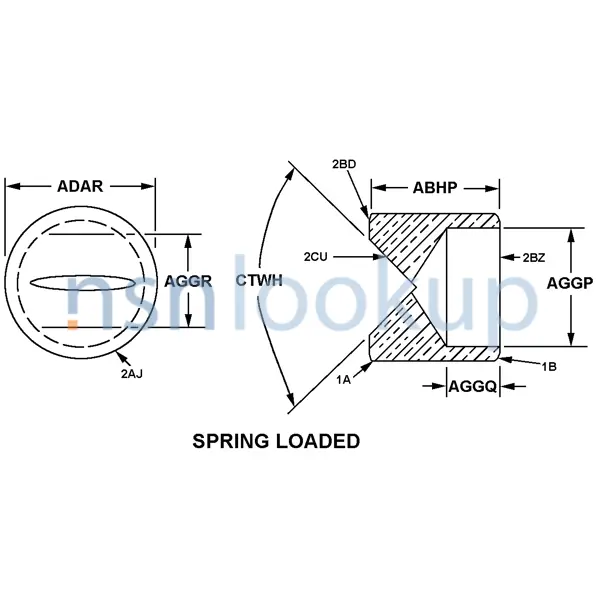

Datasheet 3120-01-300-2969
- Characteristic
- Specifications
- FIIG
- Specifications
- A045A0
- Drilled Hole Depth [AGGQ]
- 0.1800 Inches Nominal
- Drilled Hole Diameter [AGGP]
- 0.2500 Inches Nominal
- Body Outside Diameter [ADAR]
- 0.3745 Inches Nominal
- Corner Shape [BZLX]
- Square All Corners
- Material [MATT]
- Copper Alloy Overall
- Overall Length [ABHP]
- 0.4100 Inches Nominal
- V Groove Angle [CTWH]
- 90.0 Degrees Nominal
- V Groove Width [AGGR]
- 0.3020 Inches Nominal
- Style Designator [STYL]
- Spring Loaded
Weapon Systems (WSDC) 3120-01-300-2969
DLA Procurement Analysis 3120-01-300-2969
- Last Stock Position:
- 132 In Stock
- DLA Administrative Lead Time:
- Subscribe
- DLA Production Lead Time:
- Subscribe
Management Data 3120-01-300-2969
Army
- Materiel Category and Inventory Manager:
- T
- Industrial Supplies (DLA/GSA Items)
- Appropriation and Budget Activity:
- 2
- Stock Fund Secondary Items
- Management Inventory Segment:
- 2
- Non-Repairable Items(Exclusive of Insurance and Provisioning Items)
This code will be used to identify items, which are not reparable.
- Weapons System / End Item / Homogeneous Group:
- 00
- DLA/GSA Material
DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
- Accounting Requirements:
- X
- Expendable item.An item of Army property coded with an ARC of X in the AMDF. Expendable items require no formal accountability after issue from a stock record account.Commercial and fabricated items similar to items coded X in the AMDF are considered expendable items.
NATO Stock Numbers Related to 3120-01-300-2969
Freight Information 3120-01-300-2969
3120-01-300-2969 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 114820. A Sub NMFC of X. It has a NMFC Description of BEARINGS/BUSHINGS NOI BALL/ROLLER. 3120-01-300-2969 is rated as class 77.5 when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 58860 which rates the freight between FCL and LCL. 3120-01-300-2969 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 742 for ocean manifesting and military sealift. 3120-01-300-2969 is not classified as a special type of cargo when transported by water. 3120-01-300-2969 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
