3120-01-239-3595
Sleeve Bushing
3120012393595 012393595 4684962-0001 520-4863665 ITEM 3 SSBN520-4863665 ITEM 3 4863665-0003 87615-2003A ITEM 3
A tubular shaped unthreaded item with or without a flange at one end designed to be inserted into a hole to reduce the inside diameter of the hole and to protect the surrounding body structure from damage resulting from stress, strain, and/or vibration. The overall length must exceed 25 percent of the outside diameter or the shortest distance between peripheral flats of the body. Includes items which are divided into two or more segments which includes 180 degrees (3.141 radians) or less of the bearing periphery. For items made of rubber, see BUSHING, NONMETALLIC. See also BEARING, SLEEVE; BUSHING, TAPERED; SPACER, SLEEVE; INSULATOR, BUSHING; and BUSHING, ELECTRICAL CONDUCTOR. Excludes BUSHING, DRILL, JIG. View more Sleeve Bushing
November 2023
9
Marketplace 3120-01-239-3595
Request a Quotation from participating marketplace vendors
Related Documents 3120-01-239-3595 3+ Documents (More...)
/fsg-31/fsc-3120/us
BUY NE FedMall Updated Every Day 3120-01-239-3595 RQST NE Updated Every Day 3120-01-239-3595 RQST
Updated Every Day 3120-01-239-3595 RQST NE Related Documents 3120-01-239-3595 3+ Documents ( More...
Sleeve Bushing 3120012393595 012393595 Upgrade your Account Upgrade 3120-01-239-3595Sleeve Bushing3120012393595
012393595 4684962-0001 520-4863665 ITEM 3 SSBN520-4863665 ITEM 3 4863665-0003 87615-2003A ITEM 3 A tubular
Documents 1045-01-170-4041 1+ Documents ( More... ) https//www.nsnlookup.com /fsg-31/fsc-3120/us 3120-01-239-3595
Sleeve Bushing 3120012393595 012393595 for $1 a day Upgrade your Account Upgrade 3120-01-239-3595Sleeve
Restrictions 3120-01-239-3595
3120-01-239-3595 is a Sleeve Bushing that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
Import and Export 3120-01-239-3595
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 3120-01-239-3595
- US Navy (N9BG)
- Effective Date:
- 1 Sep 2006
- Former MOE Rule:
- N9GD
- Supplementary Collaborators:
- GTHD
Approved Sources 3120-01-239-3595
- Part Number
- Manufacturer
- Status
- 520-4863665 ITEM 3
- Manufacturer
- 80064 - Naval Ship Systems Command (Active)
- Primary Buy
- Primary Buy
- SSBN520-4863665 ITEM 3
- 80064 - Naval Ship Systems Command (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- 4863665-0003
- 96169 - Electric Boat Corporation (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- 87615-2003A ITEM 3
- 96169 - Electric Boat Corporation (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- 4684962-0001
- 53711 - Naval Sea Systems Command (Active)
- Advisory Reference
- Advisory Reference
Datasheet 3120-01-239-3595
- Characteristic
- Specifications
- FIIG
- Specifications
- A045A0
- Antirotation/Lubrication Type And Quantity [CTJM]
- 8 Hole
- Body Inside Diameter [ADAS]
- 8.3800 Inches Minimum And 8.4000 Inches Maximum
- Body Outside Diameter [ADAR]
- 9.1200 Inches Nominal
- Corner Shape [BZLX]
- Chamfered Inside Left Corner
- Corner Shape [BZLX]
- Chamfered Outside Left Corner
- Corner Shape [BZLX]
- Chamfered Inside Right Corner
- Corner Shape [BZLX]
- Chamfered Outside Right Corner
- Corner Shape [BZLX]
- Square Left Flange Body Corner
- Corner Shape [BZLX]
- Square Left Flange Outside Right Corner
- Corner Shape [BZLX]
- Square Right Flange Body Corner
- Corner Shape [BZLX]
- Square Right Flange Outside Left Corner
- Hole Diameter [AAUB]
- 0.5000 Inches Nominal First
- Material Document And Classification [MDCL]
- Qq-B-390 Fed Spec Single Material Response Overall
- Material [MATT]
- Copper Alloy 903 Overall
- Left Flange Outside Diameter [AGFQ]
- 9.2520 Inches Minimum And 9.2540 Inches Maximum
- Left Flange Width [AGFS]
- 4.5000 Inches Nominal
- Left Internal Flange Hole Diameter [AGFH]
- 8.2630 Inches Minimum And 8.2660 Inches Maximum
- Left Internal Flange Width [AGFK]
- 4.5000 Inches Nominal
- Right Internal Flange Hole Diameter [AGFJ]
- 8.2630 Inches Minimum And 8.2660 Inches Maximum
- Right Internal Flange Width [AGFL]
- 4.5000 Inches Nominal
- Right Flange Outside Diameter [AGFR]
- 9.2520 Inches Minimum And 9.2540 Inches Maximum
- Right Flange Width [AGFT]
- 4.5000 Inches Nominal
- Overall Length [ABHP]
- 18.0000 Inches Nominal
- Special Features [FEAT]
- 63.0 Microin Finish Id Of Internal Flanges,250.0 Microin Finish Id Of Body,125.0 Microin Finish All Other Surfaces

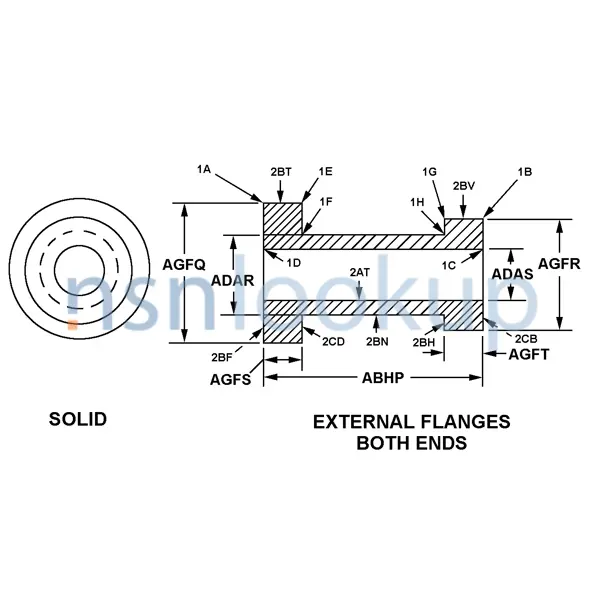

- Style Designator [STYL]
- Solid, External Flanges Both Ends, Interior Flange(S) Not Located At Either End
Weapon Systems (WSDC) 3120-01-239-3595
