3120-01-219-3967
Linear-Rotary Motion Roller
3120012193967 012193967 6538C299-1
A cylindrical body having a centrally located hole to accommodate a pin or shaft for attachment to a push rod guide, yoke, rocker arm, turntable, or rail. The item provides a rolling contact with the face of a valve stem, or the lobes of a cam ring or camshaft on engines, fuel injection pumps, latches, turntables, parallel bearing surfaces requiring a roller support, and the like. Excludes BEARING, ROLLER, CYLINDRICAL; ROLLER, ELECTRICAL SWITCH; and friction bearings. See also CAM FOLLOWER, NEEDLE BEARING. View more Linear-Rotary Motion Roller
November 2023
10
Marketplace 3120-01-219-3967
Request a Quotation from participating marketplace vendors
Related Documents 3120-01-219-3967 1+ Documents (More...)
3120-01-219-3967 1+ Documents ( More... ) https//www.nsnlookup.com /fsg-31/fsc-3120/us 3120-01-219-3967
Linear-Rotary Motion Roller 3120012193967 United States (US) 4. 3120-01-219-3967 Marketplace Restrictions
Restrictions 3120-01-219-3967
3120-01-219-3967 is a Linear-Rotary Motion Roller that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
Import and Export 3120-01-219-3967
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 3120-01-219-3967
- US Navy (N9BG)
- Effective Date:
- 1 Jul 2006
- Former MOE Rule:
- N9GD
- Supplementary Collaborators:
- HDKE
- Spain (YB01)
- Effective Date:
- 1 Feb 1994
- Australia (ZA01)
- Effective Date:
- 1 May 1994
Approved Sources 3120-01-219-3967
- Part Number
- Manufacturer
- Status
- 6538C299-1
- Manufacturer
- 36334 - Indal Technologies Inc (Active)
- Primary Buy
- Primary Buy
Datasheet 3120-01-219-3967
- Characteristic
- Specifications
- FIIG
- Specifications
- T267-K
- Bore Inside Diameter [BCXD]
- 0.377 Inches Minimum And 0.382 Inches Maximum
- Bore Length [ADGE]
- 4.280 Inches Nominal
- Casehardening Indicator [AASG]
- Not Casehardened
- Flange Width [AGFF]
- 0.150 Inches Nominal
- Material [MATT]
- Plastic Polyhexamethylene Amide Or Plastic Polyhexamethylene Adipamide Or Plastic Polycaprolactam Or Plastic Polyhexamethylene Sebacamide
- Outside Diameter [ABKV]
- 3.000 Inches Nominal
- Material Document And Classification [MDCL]
- Unable To Decode

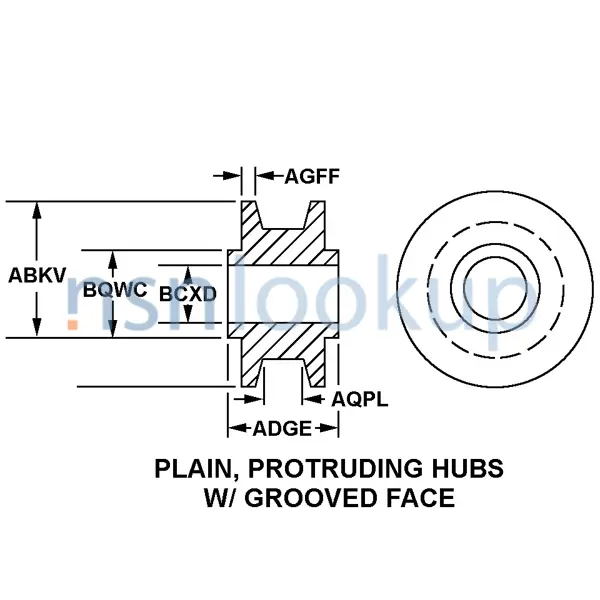

- Style Designator [STYL]
- Plain, Protruding Hubs W/Grooved Face
Weapon Systems (WSDC) 3120-01-219-3967
DLA Procurement Analysis 3120-01-219-3967
- Last Stock Position:
- 17 In Stock
- DLA Administrative Lead Time:
- Subscribe
- DLA Production Lead Time:
- Subscribe
Management Data 3120-01-219-3967
Navy
- Cognizance:
- 9B
- Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
NATO Stock Numbers Related to 3120-01-219-3967
Freight Information 3120-01-219-3967
3120-01-219-3967 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 128545. A Sub NMFC of X. It has a NMFC Description of ROLLS/ROLLERS NOI IN BXS/CRTS/SKIDS. 3120-01-219-3967 has not been rated for freight class when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 65230 which rates the freight between FCL and LCL. 3120-01-219-3967 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 742 for ocean manifesting and military sealift. 3120-01-219-3967 is not classified as a special type of cargo when transported by water. 3120-01-219-3967 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 3120-01-219-3967
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- --
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- --
- --
- Plated/Coated Item
- Over 10lb
- Less than 85G
- No Requirement
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- 1
- --
- --
- --
- --
- Any Suitable Process
- --
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- No Requirement
- --
- No Requirement
- Not Applicable
- MIL-DTL-117, Type II, Class C, Style 1, Heavy Duty, Waterproof, Greaseproof, Opaque Bag
- No special marking
- --
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- PPP-B-566, PPP-B-676, or ASTM-D5118, Folding, Setup or Fiberboard Box
Procurement History 3120-01-219-3967 2 Records
Contracting Technical Data File (CTDF) 3120-01-219-3967 October 2021
Criticality and Quality
- Critical Item Code:
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- F
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- N
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
