3120-01-216-1439

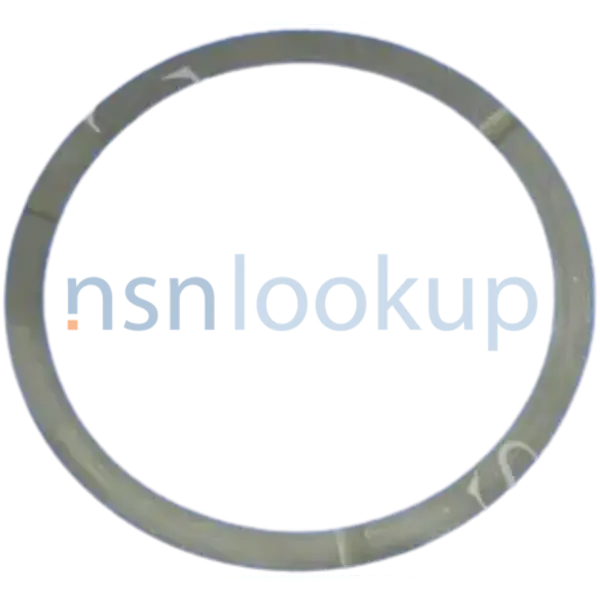

Thrust Washer Bearing
3120012161439 012161439 23018236
An item of any peripheral shape usually having one flat or spherical surface and a centrally located hole. It is designed for applications involving moving (kinetic) loads. Except for items fabricated from bearing quality synthetic (plastic) or composed of multilayer material, one bearing surface must either have a specific surface finish designation of 32 microinch (0.8 micrometre) or less, arithmetical average (aa) (arithmetic mean deviation) or one of the following conditions: be lapped or ground; have visible or detectable means of lubrication; grooves, indentations; or self-lubrication. The thickness must not exceed 25 percent of the outside diameter of the shortest distance between peripheral flats (when thickness and/or outside diameter is designated as a tolerance dimension, the maximum dimension will be used to determine compliance). Excludes straight, tubular (without flange) items having a bearing surface(s) parallel to the axis of the bore only. See also WASHER, FLAT and SPACER, SLEEVE. View more Thrust Washer Bearing
April 2025
12
Marketplace 3120-01-216-1439
Request a Quotation from participating marketplace vendors
Related Documents 3120-01-216-1439 5+ Documents (More...)
Photo 1/4 NSN 3120-01-216-1439 (Identification) 2/4 NSN 3120-01-216-1439 (Identification) 3/4 NSN
3120-01-216-1439 (Identification) 4/4 - - - - 1.
Restrictions 3120-01-216-1439
3120-01-216-1439 is a Thrust Washer Bearing that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
Import and Export 3120-01-216-1439
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 3120-01-216-1439
- US Army (A919)
- Effective Date:
- 1 Sep 2006
- Former MOE Rule:
- A180
- Supplementary Receivers:
- AZ
- Lithuania (WI01)
- Effective Date:
- 1 May 2001
- Malaysia (YW01)
- Effective Date:
- 1 Sep 2005
- Canada (ZC01)
- Effective Date:
- 1 Jun 2006
- Republic of Korea (ZH01)
- Effective Date:
- 1 Jan 2005
- Turkey (ZW01)
- Effective Date:
- 1 Aug 1993
Approved Sources 3120-01-216-1439
- Part Number
- Manufacturer
- Status
- 23018236
- Manufacturer
- 73342 - Allison Transmission Inc (Active)
- Primary Buy
- Primary Buy
Datasheet 3120-01-216-1439
- Characteristic
- Specifications
- FIIG
- Specifications
- A045A0
- Center Hole Shape Style [ABMX]
- Round
- Corner Shape [BZLX]
- Square All Corners
- Cross-Sectional Shape Style [AAGR]
- Rectangular
- Diameter [ABMZ]
- 2.4550 Inches Nominal
- Material Document And Classification [MDCL]
- Tms 25150,Fscm 73342 Mfr Ref Single Material Response Overall
- Material [MATT]
- Plastic Overall
- Outside Diameter [ABKV]
- 2.8500 Inches Nominal
- Lubrication Feature [CTLM]
- Groove Left Side
- Lubrication Feature [CTLM]
- Groove Right Side
- Overall Thickness [ADUM]
- 0.0605 Inches Minimum And 0.0645 Inches Maximum
- Style Designator [STYL]
- Round
Weapon Systems (WSDC) 3120-01-216-1439
DLA Procurement Analysis 3120-01-216-1439
- Last Stock Position:
- 555 In Stock
- DLA Administrative Lead Time:
- Subscribe
- DLA Production Lead Time:
- Subscribe
Management Data 3120-01-216-1439
Army
- Materiel Category and Inventory Manager:
- T
- Industrial Supplies (DLA/GSA Items)
- Appropriation and Budget Activity:
- 2
- Stock Fund Secondary Items
- Management Inventory Segment:
- 2
- Non-Repairable Items(Exclusive of Insurance and Provisioning Items)
This code will be used to identify items, which are not reparable.
- Weapons System / End Item / Homogeneous Group:
- 00
- DLA/GSA Material
DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
- Accounting Requirements:
- X
- Expendable item.An item of Army property coded with an ARC of X in the AMDF. Expendable items require no formal accountability after issue from a stock record account.Commercial and fabricated items similar to items coded X in the AMDF are considered expendable items.
Similar Supply Items to 3120-01-216-1439
Freight Information 3120-01-216-1439
3120-01-216-1439 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 114850. A Sub NMFC of X. It has a NMFC Description of BEARING/BUSHING O/T BALL/ROLLER I/S. 3120-01-216-1439 is rated as class 70 when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 58880 which rates the freight between FCL and LCL. 3120-01-216-1439 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 593 for ocean manifesting and military sealift. 3120-01-216-1439 is not classified as a special type of cargo when transported by water. 3120-01-216-1439 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 3120-01-216-1439
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- --
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- --
- --
- Bare Metal Item
- 2lb or less, one dimension 2" or less, other dimensions less than 24"
- Above 110G
- Special Requirement
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- 1
- --
- --
- --
- --
- --
- --
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- --
- --
- --
- --
- --
- --
- --
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- See Method of Preservation
- --
Procurement History 3120-01-216-1439 5 Records
- Contract
- Date
- CAGE
- Quantity
- Net Price
- Std Price
- CAGE
- SPE4A618V319H
- 02 Jul 2018
- Subscribe
- 500
- Subscribe
- Subscribe
- Subscribe
- SPE4A517V1326
- 14 Dec 2016
- Subscribe
- 200
- Subscribe
- Subscribe
- Subscribe
- SPE4A416V9846
- 03 May 2016
- Subscribe
- 208
- Subscribe
- Subscribe
- Subscribe
- SPE4A615M9475
- 04 May 2015
- Subscribe
- 196
- Subscribe
- Subscribe
- Subscribe
- SPE4A614V0201
- 01 Oct 2013
- Subscribe
- 330
- Subscribe
- Subscribe
- Subscribe
