3120-01-204-2207
Rod End Plain Bearing
3120012042207 012042207 458-52020-2
A detachable assembly in or on which a journal, gudgeon, pivot, or the like moves. It is used to carry a load and to reduce sliding friction. It does not employ rolling elements. The outer member of the assembly is modified to provide a shank. The inner member may be either a plain spherical bearing or a sleeve bearing. Excludes BEARING, PLAIN, SPHERICAL and BEARING, PLAIN, SELF-ALIGNING. View more Rod End Plain Bearing
May 2023
2
Marketplace 3120-01-204-2207
Request a Quotation from participating marketplace vendors
Related Documents 3120-01-204-2207 4+ Documents (More...)
BUY NE FedMall Updated Every Day 3120-01-204-2207 RQST NE Updated Every Day 3120-01-204-2207 RQST
Updated Every Day 3120-01-204-2207 RQST NE Related Documents 3120-01-204-2207 4+ Documents ( More...
Rod End Plain Bearing 3120012042207 012042207 day Upgrade your Account Upgrade 3120-01-204-2207Rod
End Plain Bearing3120012042207 012042207 458-52020 www.nsnlookup.com /fsg-31/fsc-3120/us 3120-01-204
Rod End Plain Bearing 3120012042207 012042207 day Upgrade your Account Upgrade 3120-01-204-2207Rod
End Plain Bearing3120012042207 012042207 458-52020 www.nsnlookup.com /fsg-31/fsc-3120/us 3120-01-204
Rod End Plain Bearing 3120012042207 012042207 fsc-4730/de 4730-12-150-9186 Union Nut 4730121509186
Restrictions 3120-01-204-2207
3120-01-204-2207 is a Rod End Plain Bearing that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
Import and Export 3120-01-204-2207
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 3120-01-204-2207
- US Air Force (FXGG)
- Effective Date:
- 1 Feb 2005
- Former MOE Rule:
- FXCX
Approved Sources 3120-01-204-2207
- Part Number
- Manufacturer
- Status
- 458-52020-2
- Manufacturer
- 82918 - The Boeing Company (Active)
- Primary Buy
- Primary Buy
Datasheet 3120-01-204-2207
- Characteristic
- Specifications
- FIIG
- Specifications
- A045A0
- End Item Identification [AGAV]
- Kc-135 Acft
- Bore Center To Shank End Distance [AGGG]
- 2.4200 Inches Nominal
- Bore Diameter [ABXV]
- 0.6547 Inches Minimum And 0.6550 Inches Maximum
- Material [MATT]
- Steel Comp Xm-12 Overall
- Outer Member Outside Diameter [AGGF]
- 1.0000 Inches Nominal
- Outer Member Width [AGGH]
- 0.2500 Inches Nominal
- Inner Member Width [AGGJ]
- 1.0000 Inches Nominal
- Shank Diameter [AAZE]
- 0.4940 Inches Minimum And 0.4960 Inches Maximum
- Shank End To Shoulder Length [AGGL]
- 1.9100 Inches Nominal

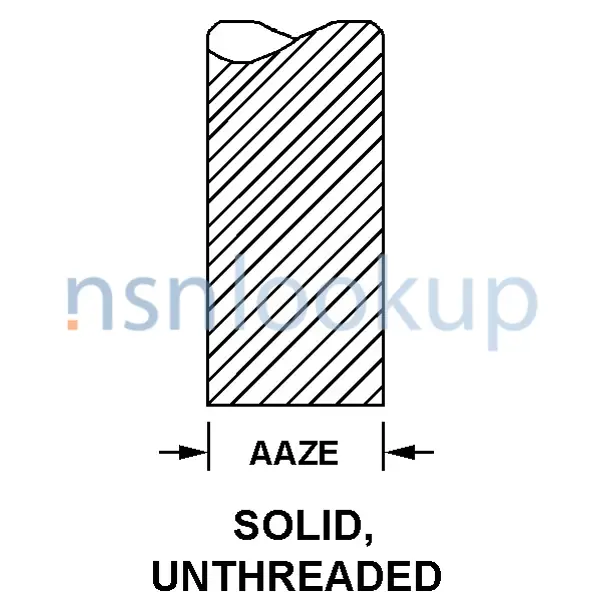

- Shank Style [AAZF]
- Solid, Unthreaded
- Overall Length [ABHP]
- 2.9200 Inches Nominal
- Style Designator [STYL]
- Shouldered Flange Type
Weapon Systems (WSDC) 3120-01-204-2207
DLA Procurement Analysis 3120-01-204-2207
Management Data 3120-01-204-2207
Air Force
- Fund:
- SF
- Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point
- Budget:
- 9
- 57X4921.070 - General Support DIV - Air Force decentralized managed expense items (ERRC XB3, XF3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors
- Aggregation Code:
- FL
- C-135 STRATOLIFTER
- Price Validation Code:
- N
- The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
The price has not been analyzed or reviewed for accuracy.
ZOP or Standard price challenges are permissible but must be supported with adequate justification. However, if coded for Local Purchase (LP) or Fabrication/Manufacture as indicated with an (LM) Acquisition Advice Code of “L” or “F”, then it must be evaluated locally where purchased or fabricated.
- Expendability
Recoverability
Repairability: - N
- Expendable. Condemn at User. Stock Fund (except Munitions).
Similar Supply Items to 3120-01-204-2207
Freight Information 3120-01-204-2207
3120-01-204-2207 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 128400. A Sub NMFC of A. It has a NMFC Description of RODS CONTROL W/W/O HOUSINGS SUB1. 3120-01-204-2207 is rated as class 85 when transported by Less-Than Truckload (LTL) freight. 3120-01-204-2207 is rated as class 70 when transported by Less-Than Carload (LCL) rail or ocean freight. It has a Uniform Freight Classification (UFC) number of 65030 which rates the freight between FCL and LCL. 3120-01-204-2207 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 742 for ocean manifesting and military sealift. 3120-01-204-2207 is not classified as a special type of cargo when transported by water. 3120-01-204-2207 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Contracting Technical Data File (CTDF) 3120-01-204-2207 October 2021
Criticality and Quality
- Critical Item Code:
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- K
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- Y
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
