3120-01-022-2044

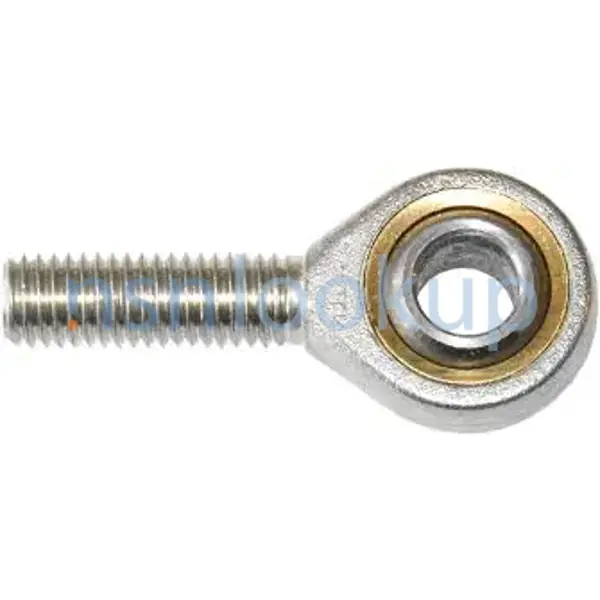

Rod End Plain Bearing
3120010222044 010222044 HMJL5CTPB 8395471-1
A detachable assembly in or on which a journal, gudgeon, pivot, or the like moves. It is used to carry a load and to reduce sliding friction. It does not employ rolling elements. The outer member of the assembly is modified to provide a shank. The inner member may be either a plain spherical bearing or a sleeve bearing. Excludes BEARING, PLAIN, SPHERICAL and BEARING, PLAIN, SELF-ALIGNING. View more Rod End Plain Bearing
November 2023
26
Marketplace 3120-01-022-2044
Request a Quotation from participating marketplace vendors
Related Documents 3120-01-022-2044 5+ Documents (More...)
3120-01-022-2044 47 15 19207 I724199 69 31 19207 MJ3-202-589919 5315-00-058-9919 31 26 96906 MS122165
3120-01-022-2044 49 72 98897 LS4634-10 5331-00-108-5691 57 12 96906 MS122165 5325-00-990-7158 3 23 96906
3120-01-022-2044 Bearing 324 8666738 5330-01-417-1912 Gasket 325 8682468 5330-00-679-8059 Gasket 326
3120-01-022-2044 47 15 19207 I724199 69 31 19207 MJ3-202-589919 Restrictions 2530-33-154-3387 DEMIL:
01843 GU7837 2910-00-878-9933 35 7 31435 G22-6F 2920-00-830-6660 56 17 01843 HH78371 35 4 73134 HMJL5CTPB
911 33 7 01843 RN783 33 8 5330-00-934-9794 96906 https//www.nsnlookup.com /fsg-31/fsc-3120/us 3120-01-022-2044
Restrictions 3120-01-022-2044
3120-01-022-2044 is a Rod End Plain Bearing that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. The precious metals content of this item is unknown.
Import and Export 3120-01-022-2044
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 3120-01-022-2044
- US Army (A919)
- Effective Date:
- 1 Sep 2006
- Former MOE Rule:
- A180
- Supplementary Receivers:
- AZ
- US Air Force (FGGG)
- Effective Date:
- 1 Sep 2006
- Former MOE Rule:
- FGCX
- US Marine Corps (MC41)
- Effective Date:
- 1 Sep 2006
- Former MOE Rule:
- MC04
- US Navy (N9BG)
- Effective Date:
- 1 Dec 2013
- Supplementary Collaborators:
- GG
- Austria (WB01)
- Effective Date:
- 1 Feb 2005
- Brazil (YA01)
- Effective Date:
- 1 Mar 2001
- Spain (YB01)
- Effective Date:
- 1 Feb 1998
- Morocco (YP01)
- Effective Date:
- 1 Nov 2008
- Republic of Korea (ZH01)
- Effective Date:
- 1 Apr 1991
- Portugal (ZP01)
- Effective Date:
- 1 Apr 1991
- Greece (ZU01)
- Effective Date:
- 1 Jul 1995
- Turkey (ZW01)
- Effective Date:
- 1 Feb 2002
Approved Sources 3120-01-022-2044
- Part Number
- Manufacturer
- Status
- 8395471-1
- Manufacturer
- 19207 - U S Army Tank Automotive Command (Active)
- Source Control
- Source Control
- 8395471-1
- 31633 - Alinabal Holdings Corporation (Active)
- Primary Buy
- Primary Buy
- 8395471-1
- 73134 - Roller Bearing Co Of America Inc (Active)
- Primary Buy
- Primary Buy
- HMJL5CTPB
- 73134 - Roller Bearing Co Of America Inc (Active)
- Incomplete Secondary Reference
- Incomplete Secondary Reference
- 3120010222044
- SCY13 - E.C.A Etablissement (Replaced)
- Canceled/Obsolete
- Canceled/Obsolete
- 3120010222044
- A00AM - E.C.A Etablissement Central Des (Active)
- NATO Reference
- NATO Reference
Datasheet 3120-01-022-2044
- Characteristic
- Specifications
- FIIG
- Specifications
- A045A0
- Bore Center To Shank End Distance [AGGG]
- 1.8400 Inches Minimum And 1.9400 Inches Maximum
- Bore Diameter [ABXV]
- 0.3120 Inches Minimum And 0.3150 Inches Maximum
- Material [MATT]
- Steel Corrosion Resisting Overall
- Outer Member Outside Diameter [AGGF]
- 0.8650 Inches Minimum And 1.0100 Inches Maximum
- Outer Member Width [AGGH]
- 0.3390 Inches Minimum And 0.3490 Inches Maximum
- Inner Member Width [AGGJ]
- 0.4320 Inches Minimum And 0.4420 Inches Maximum
- Lubrication Material [ADZG]
- Lubricating Oil
- Shank Style [AAZF]
- Externally Threaded
- Shank Thread Length [AGGY]
- 1.1900 Inches Minimum And 1.3100 Inches Maximum
- Overall Length [ABHP]
- 2.3450 Inches Minimum And 2.4450 Inches Maximum
- Style Designator [STYL]
- Ball Type
- Surface Treatment [SFTT]
- Cadmium Rod End Body
- Thread Class [AAJD]
- 3A
- Thread Diameter [AWDP]
- 0.312 Inches Nominal
- Thread Direction [AAJF]
- Left-Hand
- Thread Quantity Per Inch [CMLP]
- 24
- Thread Series Designator [THSD]
- Unf
Weapon Systems (WSDC) 3120-01-022-2044
DLA Procurement Analysis 3120-01-022-2044
- Last Stock Position:
- 278 In Stock
- DLA Administrative Lead Time:
- Subscribe
- DLA Production Lead Time:
- Subscribe
Management Data 3120-01-022-2044
Army
- Materiel Category and Inventory Manager:
- T
- Industrial Supplies (DLA/GSA Items)
- Appropriation and Budget Activity:
- 2
- Stock Fund Secondary Items
- Management Inventory Segment:
- 2
- Non-Repairable Items(Exclusive of Insurance and Provisioning Items)
This code will be used to identify items, which are not reparable.
- Weapons System / End Item / Homogeneous Group:
- 00
- DLA/GSA Material
DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
- Accounting Requirements:
- X
- Expendable item.An item of Army property coded with an ARC of X in the AMDF. Expendable items require no formal accountability after issue from a stock record account.Commercial and fabricated items similar to items coded X in the AMDF are considered expendable items.
Air Force
- Fund:
- SF
- Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point
- Budget:
- 9
- 57X4921.070 - General Support DIV - Air Force decentralized managed expense items (ERRC XB3, XF3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors
- Price Validation Code:
- N
- The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
The price has not been analyzed or reviewed for accuracy.
ZOP or Standard price challenges are permissible but must be supported with adequate justification. However, if coded for Local Purchase (LP) or Fabrication/Manufacture as indicated with an (LM) Acquisition Advice Code of āLā or āFā, then it must be evaluated locally where purchased or fabricated.
- Expendability
Recoverability
Repairability: - N
- Expendable. Condemn at User. Stock Fund (except Munitions).
Navy
- Cognizance:
- 9B
- Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
Marine Corps
- Stores Account:
- 1
- Stock Fund Account Item
- Combat Essentiality:
- 5
- Critical Repair Part to a Combat Essential End Item
- Echelon Management:
- B2
- Operational Test:
- No Special Procedures
- Physical Category:
- 1
- Bin
NATO Stock Numbers Related to 3120-01-022-2044
Freight Information 3120-01-022-2044
3120-01-022-2044 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 114850. A Sub NMFC of X. It has a NMFC Description of BEARING/BUSHING O/T BALL/ROLLER I/S. 3120-01-022-2044 is rated as class 70 when transported by Less-Than Truckload (LTL) freight. 3120-01-022-2044 is rated as a variable freight class when transported by Less-Than Carload (LCL) rail or ocean freight. It has a Uniform Freight Classification (UFC) number of 58880 which rates the freight between FCL and LCL. It has a Water Commodity Code (WCC) of 742 for ocean manifesting and military sealift. 3120-01-022-2044 is not classified as a special type of cargo when transported by water. 3120-01-022-2044 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 3120-01-022-2044
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- --
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- --
- --
- Plated/Coated Item
- 2lb or less, one dimension 2" or less, other dimensions less than 24"
- Above 110G
- No Requirement
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- 1
- 3.4" H x 1.5" W x 1.5" L
- --
- --
- --
- --
- 3.4" H x 1.5" W x 1.5" L
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- --
- --
- --
- --
- --
- --
- --
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- See Method of Preservation
- --
Procurement History 3120-01-022-2044 1 Records
Contracting Technical Data File (CTDF) 3120-01-022-2044 October 2021
Criticality and Quality
- Critical Item Code:
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- F
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- N
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
