3120-01-015-6923

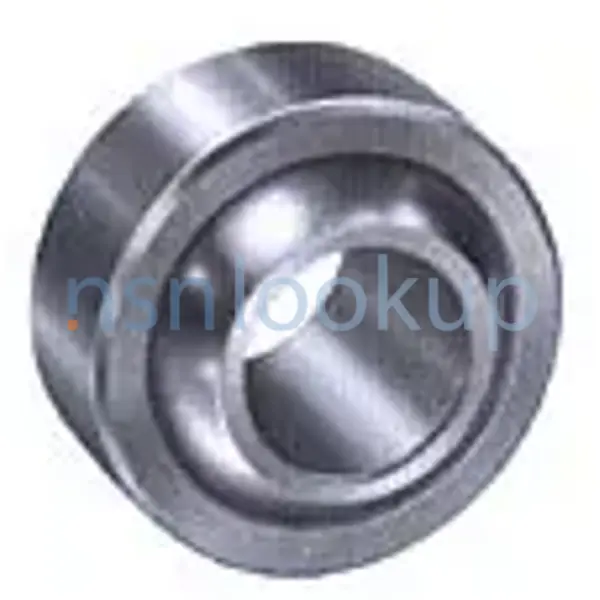

Self-Aligning Plain Bearing
3120010156923 010156923 SAE-AS81820 MS14102-4C MS14102-4 KR4-CWB MS21231-4 AS14102 10107687
A detachable assembly in or on which a journal, gudgeon, pivot, or the like moves. It is used to carry a load and to reduce sliding friction. It does not employ rolling elements. The item consists of a bored precision ground ball (or spherical plain bearing) around which an outer ring is fitted. The assembly may be either separable or nonseparable. Excludes BEARING, PLAIN, ROD END and BEARING, PLAIN, SPHERICAL. View more Self-Aligning Plain Bearing
November 2023
33
Marketplace 3120-01-015-6923
Request a Quotation from participating marketplace vendors
Related Documents 3120-01-015-6923 5+ Documents (More...)
MS14102-4 BEARING,PLAIN,SELF-ALIGNING 7777 EA NS Request Quotation Updated Every Day 3120-01-015-6923
Updated Every Day 3120-01-015-6923 MS14102-4 BEARING,PLAIN,SELF-ALIGNING 7777 EA NS Request Quotation
MS14102-4C BEARING,PLAIN,SELF-ALIGNING 1 EA NS Request Quotation Subscribe to View Vendor Details...
MS21231-4 BEARING,PLAIN,SELF-ALIGNING 9 EA NS Request Quotation Subscribe to View Vendor Details...
Self-Aligning Plain Bearing 3120010156923 6923Self-Aligning Plain Bearing3120010156923 010156923
AS14102 MS14102-4C KR4-CWB MS14102-4 MS21231-4 10107687 Request Quotation Subscribe to View Vendor Details
Restrictions 3120-01-015-6923
3120-01-015-6923 is a Self-Aligning Plain Bearing that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
Import and Export 3120-01-015-6923
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 3120-01-015-6923
- US Army (A919)
- Effective Date:
- 1 Jul 2006
- Former MOE Rule:
- A180
- Supplementary Receivers:
- BDCT
- US Air Force (FGGG)
- Effective Date:
- 1 Jul 2006
- Former MOE Rule:
- FGCX
- US Navy (N9BG)
- Effective Date:
- 1 Jul 2006
- Former MOE Rule:
- N9GD
- Supplementary Collaborators:
- GTKE
- Finland (WF01)
- Effective Date:
- 1 Mar 2009
- Poland (WP01)
- Effective Date:
- 1 Dec 2006
- Brazil (YA01)
- Effective Date:
- 1 Oct 2000
- Spain (YB01)
- Effective Date:
- 1 Apr 1991
- Malaysia (YW01)
- Effective Date:
- 1 Aug 1997
- Australia (ZA01)
- Effective Date:
- 1 Apr 1991
- Canada (ZC01)
- Effective Date:
- 1 Apr 1991
- Germany (ZG01)
- Effective Date:
- 1 Apr 1991
- Republic of Korea (ZH01)
- Effective Date:
- 1 Apr 1991
- Greece (ZU01)
- Effective Date:
- 1 Apr 2006
- Turkey (ZW01)
- Effective Date:
- 1 Dec 1995
Approved Sources 3120-01-015-6923
- Part Number
- Manufacturer
- Status
- SAE-AS81820
- Manufacturer
- 0U583 - Sae International (Active)
- Incomplete Reference
- Incomplete Reference
- MS14102-4
- 0U583 - Sae International (Active)
- Primary Buy
- Primary Buy
- KR4-CWB
- 50632 - Kamatics Corporation (Active)
- Secondary Buy
- Secondary Buy
- MS21231-4
- 96906 - Military Standards (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- AS14102
- 81343 - Society Of Automotive Engineers Inc (Replaced)
- Canceled/Obsolete
- Canceled/Obsolete
- MS14102-4
- 81343 - Society Of Automotive Engineers Inc (Replaced)
- Canceled/Obsolete
- Canceled/Obsolete
- AS14102
- 0U583 - Sae International (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- MS14102-4
- 96906 - Military Standards (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- 10107687
- A486G - Nimikkeistokeskus Ncb Finland (Active)
- NATO Reference
- NATO Reference
- MS14102-4C
- 96906 - Military Standards (Active)
- Advisory Reference
- Advisory Reference
Datasheet 3120-01-015-6923
- Characteristic
- Specifications
- FIIG
- Specifications
- A045A0
- Bore Diameter [ABXV]
- 0.2495 Inches Minimum And 0.2500 Inches Maximum
- Hardness Rating [CQFM]
- 23.0 Rockwell C Minimum Outer Race Member And 35.0 Rockwell C Maximum Outer Race Member
- Hardness Rating [CQFM]
- 55.0 Rockwell C Minimum Inner Member And 62.0 Rockwell C Maximum Inner Member
- Material [MATT]
- Plastic Polytetrafluoroethylene Race Liner
- Material [MATT]
- Steel Comp 440C Inner Member
- Material [MATT]
- Steel Comp 630 Outer Race Member
- Outer Member Outside Diameter [AGGF]
- 0.6245 Inches Minimum And 0.6250 Inches Maximum
- Outer Member Width [AGGH]
- 0.3220 Inches Minimum And 0.3320 Inches Maximum
- Inner Member Width [AGGJ]
- 0.4350 Inches Minimum And 0.4370 Inches Maximum
- Lubrication Material [ADZG]
- Lubricant, Manufacturers Standard
- Static Radial Load Rating [AGKP]
- 9000 Pounds
- Style Designator [STYL]
- With Insert And/Or Liner
Weapon Systems (WSDC) 3120-01-015-6923
DLA Procurement Analysis 3120-01-015-6923
- Last Stock Position:
- 77 In Stock
- DLA Administrative Lead Time:
- Subscribe
- DLA Production Lead Time:
- Subscribe
Management Data 3120-01-015-6923
Army
- Materiel Category and Inventory Manager:
- T
- Industrial Supplies (DLA/GSA Items)
- Appropriation and Budget Activity:
- 2
- Stock Fund Secondary Items
- Management Inventory Segment:
- 2
- Non-Repairable Items(Exclusive of Insurance and Provisioning Items)
This code will be used to identify items, which are not reparable.
- Weapons System / End Item / Homogeneous Group:
- CC
- Other Aircraft Categories
Multi-Application Aviation Spares
- Accounting Requirements:
- X
- Expendable item.An item of Army property coded with an ARC of X in the AMDF. Expendable items require no formal accountability after issue from a stock record account.Commercial and fabricated items similar to items coded X in the AMDF are considered expendable items.
Navy
- Cognizance:
- 9B
- Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
Similar Supply Items to 3120-01-015-6923
Freight Information 3120-01-015-6923
3120-01-015-6923 has freight characteristics managed by the Southwestern Power Administration.It has a National Motor Freight Classification (NMFC) of 133300. A Sub NMFC of Z. It has a NMFC Description of MACHINERY/MACHINES NOI. 3120-01-015-6923 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 63220 which rates the freight between FCL and LCL. 3120-01-015-6923 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 742 for ocean manifesting and military sealift. 3120-01-015-6923 is not classified as a special type of cargo when transported by water. 3120-01-015-6923 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 3120-01-015-6923
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- --
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- --
- --
- Bare Metal Item
- 2lb or less, one dimension 2" or less, other dimensions less than 24"
- Above 110G
- Special Requirement
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- 1
- --
- --
- --
- --
- --
- --
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- --
- --
- --
- --
- --
- --
- --
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- See Method of Preservation
- --
Procurement History 3120-01-015-6923 2 Records
Contracting Technical Data File (CTDF) 3120-01-015-6923 October 2021
Criticality and Quality
- Critical Item Code:
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- F
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- N
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
