3120-01-009-7065
Spherical Plain Bearing
3120010097065 010097065 79087 256980
A detachable part in or on which a journal, gudgeon, pivot, or the like moves. It is used to carry a load and to reduce sliding friction. It does not employ rolling elements. It may be divided into two or more segments of 180 degrees (3.141 radians) or less. The item has a cylindrical bore and is basically spherical in its exterior design to allow for shaft misalignment. Excludes BEARING, PLAIN, SELF-ALIGNING. View more Spherical Plain Bearing
May 2023
6
Marketplace 3120-01-009-7065
Request a Quotation from participating marketplace vendors
Related Documents 3120-01-009-7065 5+ Documents (More...)
BUY NE FedMall Updated Every Day 3120-01-009-7065 RQST NE Updated Every Day 3120-01-009-7065 RQST
Updated Every Day 3120-01-009-7065 RQST NE Related Documents 3120-01-009-7065 5+ Documents ( More...
Digital Converter 7050015943656 RQST NE Updated Every https//www.nsnlookup.com /fsg-31/fsc-3120/us 3120-01-009-7065
Spherical Plain Bearing 3120010097065,79087 Documents 3120-01-009-7065 5+ Documents ( More... https
-66/fsc-6625/nz 6625-98-205-7182 Rotary Electro-Mechanical Actuator 982057182 982057182 22-7108722-79087
Rotary Rotary Electro-Mechanical Actuator 982057182 22-7108722-79087 https Rotary Electro-Mechanical
982057182 22-7108722-79087 Rotary Rotary Electro-Mechanical Actuator 982057182 22-7108722-79087 Rotary
Electro-Mechanical Actuator 982057182 22-7108722-79087 https//www.nsnlookup.com /fsg-66/ fsc- https/
//www.nsnlookup.com /fsg-53/fsc-5330/us 5330-00-531-2817 Preformed Packing 5330005312817005312817 256980
Upgrade your Account Upgrade 7050-01-594-3656Digital To Digital Converter7050015943656 015943656 256980
Restrictions 3120-01-009-7065
3120-01-009-7065 is a Spherical Plain Bearing that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
Import and Export 3120-01-009-7065
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 3120-01-009-7065
- US Navy (N9BG)
- Effective Date:
- 1 Sep 2006
- Former MOE Rule:
- N9GD
- Supplementary Collaborators:
- GTKE
Approved Sources 3120-01-009-7065
- Part Number
- Manufacturer
- Status
- 79087
- Manufacturer
- 09455 - Rbc Transport Dynamics Corp (Active)
- Primary Buy
- Primary Buy
- 256980
- 78062 - Sargent Aerospace & Defense, Llc (Active)
- Secondary Buy
- Secondary Buy
- 256980
- 0KDP7 - Kidde-Fenwal, Inc. (Active)
- Canceled/Obsolete
- Canceled/Obsolete
Datasheet 3120-01-009-7065
- Characteristic
- Specifications
- FIIG
- Specifications
- A045A0
- Body Inside Diameter [ADAS]
- 0.7180 Inches Minimum And 0.7220 Inches Maximum
- Corner Shape [BZLX]
- Chamfered Inside Right Corner
- Corner Shape [BZLX]
- Chamfered Inside Left Corner
- Material [MATT]
- Plastic Inner Layer
- Material [MATT]
- Steel Comp 630 Outer Layer
- Material Document And Classification [MDCL]
- Fibiloid/09455 Mfr Ref Single Material Response Inner Layer
- Overall Length [ABHP]
- 0.5000 Inches Minimum And 0.5050 Inches Maximum
- Spherical Body Diameter [AGFZ]
- 1.0600 Inches Minimum And 1.0620 Inches Maximum

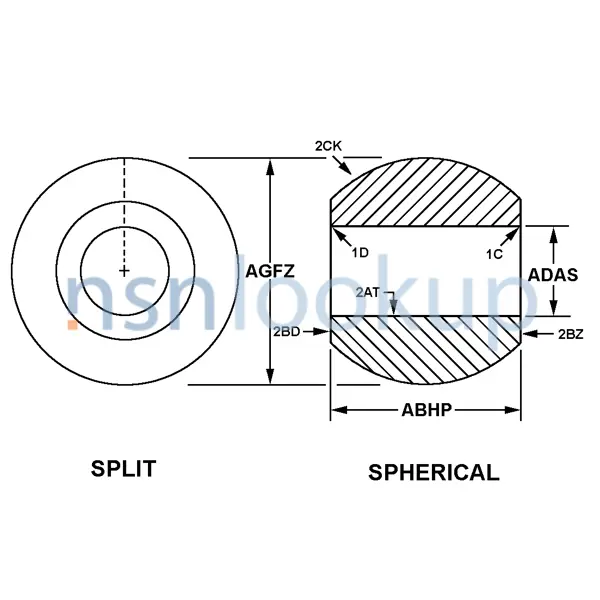

- Style Designator [STYL]
- Split
- Surface Finish [CSYM]
- 125.0 Microinches Inside Diameter Surface Of Body
- Surface Finish [CSYM]
- 125.0 Microinches Left End Surface
- Surface Finish [CSYM]
- 125.0 Microinches Right End Surface
- Surface Finish [CSYM]
- 8.0 Microinches Spherical Surface
- Surface Treatment Document And Classification [STDC]
- Qq-P-35,Type 2 Fed Spec Single Treatment Response Outer Layer
- Surface Treatment [SFTT]
- Passivate Outer Layer
DLA Procurement Analysis 3120-01-009-7065
Management Data 3120-01-009-7065
Navy
- Cognizance:
- 9B
- Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
Similar Supply Items to 3120-01-009-7065
Freight Information 3120-01-009-7065
3120-01-009-7065 has freight characteristics managed by the Southwestern Power Administration.It has a National Motor Freight Classification (NMFC) of 114850. A Sub NMFC of X. It has a NMFC Description of BEARING/BUSHING O/T BALL/ROLLER I/S. 3120-01-009-7065 is rated as class 70 when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 58880 which rates the freight between FCL and LCL. 3120-01-009-7065 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 742 for ocean manifesting and military sealift. 3120-01-009-7065 is not classified as a special type of cargo when transported by water. 3120-01-009-7065 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 3120-01-009-7065
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- --
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- --
- --
- Plated/Coated Item
- 2lb or less, one dimension 2" or less, other dimensions less than 24"
- Above 110G
- Special Requirement
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- 1
- --
- --
- --
- --
- Any Suitable Process
- --
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- --
- --
- --
- --
- --
- No special marking
- --
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- ASTM - D5118, Fiberboard Box
