3120-00-782-1911

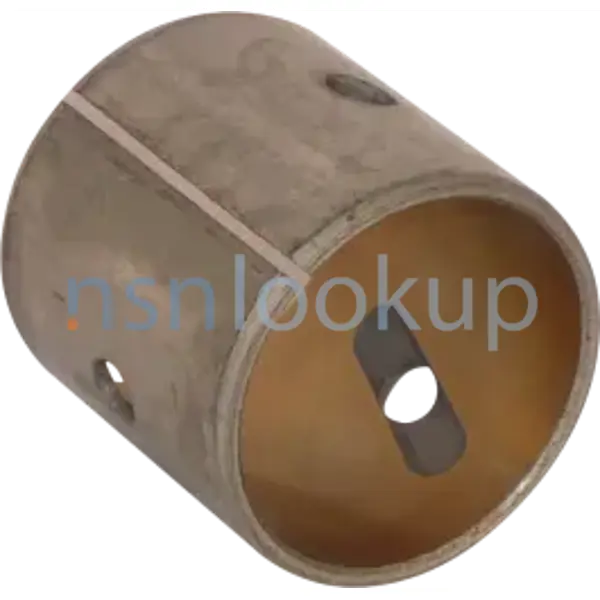

Sleeve Bearing
3120007821911 007821911 8756531
A tubular shaped item with or without flange(s) designed to reduce friction and carry a kinetic load on the surface(s) parallel to the axis of the bore. It must have a visible or detectable means of lubrication or be self-lubricated. The over all length must exceed 25 percent of the outside diameter or the shortest distance between peripheral flats of the body, except for straight tubular (without flange or shoulder) items having a bearing surface(s) parallel to the axis of the bore only. Includes items which are divided into two or more segments which include 180 degrees (3.141 radians) or less of the bearing periphery. See also BUSHING, SLEEVE; SPACER, SLEEVE; and WASHER (as modified). Excludes PIN, HOLLOW. View more Sleeve Bearing
March 2025
40
Marketplace 3120-00-782-1911
Request a Quotation from participating marketplace vendors
Related Documents 3120-00-782-1911 1+ Documents (More...)
/fsg-31/fsc-3120/us
United States (US) 4. 3120-00-782-1911 Marketplace Restrictions Approved Sources Datasheet Management
... 3120-00-782-1911 BUSHING 38 EA NS Request Quotation Subscribe to View Vendor Details... 3120-00-782
Restrictions 3120-00-782-1911
3120-00-782-1911 is a Sleeve Bearing that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
Import and Export 3120-00-782-1911
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 3120-00-782-1911
- US Army (A919)
- Effective Date:
- 1 Sep 2006
- Former MOE Rule:
- A180
- Supplementary Receivers:
- AZBD
- Lithuania (WI01)
- Effective Date:
- 1 May 2001
- Spain (YB01)
- Effective Date:
- 1 Mar 1999
- Singapore (YJ01)
- Effective Date:
- 1 Apr 1991
- Kuwait (YK01)
- Effective Date:
- 1 Feb 2015
- Morocco (YP01)
- Effective Date:
- 1 Nov 2008
- Australia (ZA01)
- Effective Date:
- 1 Apr 1991
- Belgium (ZB01)
- Effective Date:
- 1 Apr 1991
- Canada (ZC01)
- Effective Date:
- 1 Apr 1991
- New Zealand (ZE01)
- Effective Date:
- 1 Apr 1991
- Germany (ZG01)
- Effective Date:
- 1 Apr 1991
- Netherlands (ZN01)
- Effective Date:
- 1 Apr 1991
- Portugal (ZP01)
- Effective Date:
- 1 Apr 1991
- Denmark (ZS01)
- Effective Date:
- 1 Apr 1991
- Greece (ZU01)
- Effective Date:
- 1 Jul 1995
- Turkey (ZW01)
- Effective Date:
- 1 Aug 1993
- NATO Maintenance and Supply Agency (ZX01)
- Effective Date:
- 1 Oct 2007
Approved Sources 3120-00-782-1911
- Part Number
- Manufacturer
- Status
- 8756531
- Manufacturer
- 19207 - U S Army Tank Automotive Command (Active)
- Primary Buy
- Primary Buy
- 3120007821911
- SCY13 - E.C.A Etablissement (Replaced)
- Canceled/Obsolete
- Canceled/Obsolete
Datasheet 3120-00-782-1911
- Characteristic
- Specifications
- FIIG
- Specifications
- A045A0
- Antirotation/Lubrication Type And Quantity [CTJM]
- 3 Hole
- Body Inside Diameter [ADAS]
- 1.0600 Inches Minimum And 1.0610 Inches Maximum
- Body Outside Diameter [ADAR]
- 1.1895 Inches Minimum And 1.1905 Inches Maximum
- Hole Diameter [AAUB]
- 0.1875 Inches Nominal First
- Material [MATT]
- Copper Alloy Sae 797 Inner Layer
- Material [MATT]
- Steel Outer Layer
- Lubricant Accommodation Style [AGKH]
- Grooved Closed Both Ends
- Overall Length [ABHP]
- 1.1719 Inches Minimum And 1.2031 Inches Maximum
- Style Designator [STYL]
- Split, Plain, No Outside Flanges
- Surface Groove Location And Quantity [CTMQ]
- 3 Internal
Weapon Systems (WSDC) 3120-00-782-1911
DLA Procurement Analysis 3120-00-782-1911
Management Data 3120-00-782-1911
Army
- Materiel Category and Inventory Manager:
- T
- Industrial Supplies (DLA/GSA Items)
- Appropriation and Budget Activity:
- 2
- Stock Fund Secondary Items
- Management Inventory Segment:
- 2
- Non-Repairable Items(Exclusive of Insurance and Provisioning Items)
This code will be used to identify items, which are not reparable.
- Weapons System / End Item / Homogeneous Group:
- 00
- DLA/GSA Material
DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
- Accounting Requirements:
- X
- Expendable item.An item of Army property coded with an ARC of X in the AMDF. Expendable items require no formal accountability after issue from a stock record account.Commercial and fabricated items similar to items coded X in the AMDF are considered expendable items.
Similar Supply Items to 3120-00-782-1911
Freight Information 3120-00-782-1911
3120-00-782-1911 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 114820. A Sub NMFC of X. It has a NMFC Description of BEARINGS/BUSHINGS NOI BALL/ROLLER. 3120-00-782-1911 is rated as class 77.5 when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 58860 which rates the freight between FCL and LCL. 3120-00-782-1911 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 742 for ocean manifesting and military sealift. 3120-00-782-1911 is not classified as a special type of cargo when transported by water. 3120-00-782-1911 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 3120-00-782-1911
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- --
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- --
- --
- Bare Metal Item
- Over 10lb
- Less than 85G
- Special Requirement
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- 1
- --
- --
- --
- --
- Any Suitable Process
- --
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- --
- MIL-DTL-17667, Neutral Wrapping Paper
- --
- --
- --
- No special marking
- MIL-DTL-17667, Neutral Wrapping Paper
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- ASTM - D5118, Fiberboard Box
Contracting Technical Data File (CTDF) 3120-00-782-1911 October 2021
Criticality and Quality
- Critical Item Code:
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- L
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
