3120-00-707-8241
Thrust Washer Bearing
3120007078241 007078241 3612837-1 73276
An item of any peripheral shape usually having one flat or spherical surface and a centrally located hole. It is designed for applications involving moving (kinetic) loads. Except for items fabricated from bearing quality synthetic (plastic) or composed of multilayer material, one bearing surface must either have a specific surface finish designation of 32 microinch (0.8 micrometre) or less, arithmetical average (aa) (arithmetic mean deviation) or one of the following conditions: be lapped or ground; have visible or detectable means of lubrication; grooves, indentations; or self-lubrication. The thickness must not exceed 25 percent of the outside diameter of the shortest distance between peripheral flats (when thickness and/or outside diameter is designated as a tolerance dimension, the maximum dimension will be used to determine compliance). Excludes straight, tubular (without flange) items having a bearing surface(s) parallel to the axis of the bore only. See also WASHER, FLAT and SPACER, SLEEVE. View more Thrust Washer Bearing
November 2023
26
Marketplace 3120-00-707-8241
Request a Quotation from participating marketplace vendors
Related Documents 3120-00-707-8241 5+ Documents (More...)
(Identification) 1/3 NSN 3120-00-707-8241 (Identification) 2/3 NSN 3120-00-707-8241 (Identification
RQST NE Updated Every Day 3120-00-707-8241 RQST Updated Every Day 3120-00-707-8241 RQST NE Related
www.nsnlookup.com /fsg-59/fsc-5998/ca 5998-21-879-4226 Circuit Card Assembly 5998218794226218794226 73276
-01-049-1762 Access Cover 5340010491762 010491762,73276 Lens6210996552197 996552197A3892-732763892-73276
JavaScript in your web browser . 7610-66-144-4688Technical Manual7610661444688 661444688TELS E 411 73276
in your web browser . 7610-66-144-4688Technical https//www.nsnlookup.com /fsg-31/fsc-3120/us 3120-00-707-8241
enable JavaScript in your web browser . 5305-14-209-8445Panel Fastener Screw5305142098445 142098445 73276
JavaScript in your web browser . 7610-66-144-4688Technical Manual7610661444688 661444688TELS E 411 73276
3892-73276 A transparent or translucent item designed to enclose or be placed in front of a light source
Thrust Washer Bearing 3120007078241 007078241 (Active) Primary Buy RNCC 3 RNVC 2 DAC E 73276 https
Restrictions 3120-00-707-8241
3120-00-707-8241 is a Thrust Washer Bearing that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. The precious metals content of this item is unknown.
Import and Export 3120-00-707-8241
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 3120-00-707-8241
- US Army (A919)
- Effective Date:
- 1 Jul 2006
- Supplementary Receivers:
- AJCLBD
- US Air Force (FUGG)
- Effective Date:
- 1 Jul 2006
- US Navy (N9BG)
- Effective Date:
- 1 Jul 2006
- Supplementary Collaborators:
- GTKEHD
- Poland (WP)
- Poland (WP01)
- Effective Date:
- 1 Aug 2011
- Brazil (YA)
- Brazil (YA01)
- Effective Date:
- 1 Sep 2000
- Spain (YB)
- Spain (YB01)
- Effective Date:
- 1 Apr 1991
- Israel (YD01)
- Effective Date:
- 1 Jul 2016
- Malaysia (YW)
- Malaysia (YW01)
- Effective Date:
- 1 Apr 1991
- Australia (ZA)
- Australia (ZA01)
- Effective Date:
- 1 Apr 1991
- Belgium (ZB)
- Belgium (ZB01)
- Effective Date:
- 1 Nov 2012
- Canada (ZC)
- Canada (ZC01)
- Effective Date:
- 1 Apr 1991
- New Zealand (ZE)
- New Zealand (ZE01)
- Effective Date:
- 1 Apr 1991
- France (ZF)
- France (ZF01)
- Effective Date:
- 1 Apr 1991
- Germany (ZG)
- Germany (ZG01)
- Effective Date:
- 1 Apr 1991
- Republic of Korea (ZH)
- Republic of Korea (ZH01)
- Effective Date:
- 1 Apr 1991
- Portugal (ZP)
- Portugal (ZP01)
- Effective Date:
- 1 Apr 1991
- Norway (ZT)
- Norway (ZT01)
- Effective Date:
- 1 Apr 1991
- Greece (ZU)
- Greece (ZU01)
- Effective Date:
- 1 Apr 1991
- Turkey (ZW)
- Turkey (ZW01)
- Effective Date:
- 1 Nov 2005
- United States of America (ZZ)
Approved Sources 3120-00-707-8241
- Part Number
- Manufacturer
- Status
- 3612837-1
- Manufacturer
- 99193 - Honeywell International Inc. (Active)
- Primary Buy
- Primary Buy
- 3612837-1
- 70210 - Honeywell International Inc. (Active)
- Original Design
- Original Design
- 3612837-1
- 2N935 - Boeing Distribution Services X, Inc. (Active)
- Secondary Buy
- Secondary Buy
- 73276
- 72599 - Alliedsignal Inc Dba Allied-Signal (Replaced)
- Canceled/Obsolete
- Canceled/Obsolete
- 73276
- 99193 - Honeywell International Inc. (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- 73276
- 70210 - Honeywell International Inc. (Active)
- Canceled/Obsolete
- Canceled/Obsolete
Datasheet 3120-00-707-8241
- Characteristic
- Specifications
- FIIG
- Specifications
- A045A0
- Center Hole Key Bottom Radius [AGJP]
- 0.0100 Inches Minimum And 0.0150 Inches Maximum
- Center Hole Key Quantity [AGJZ]
- 2
- Center Hole Key Width [AGJK]
- 0.0700 Inches Minimum And 0.0760 Inches Maximum
- Center Hole Key Length [AGJL]
- 0.0760 Inches Minimum And 0.0790 Inches Maximum

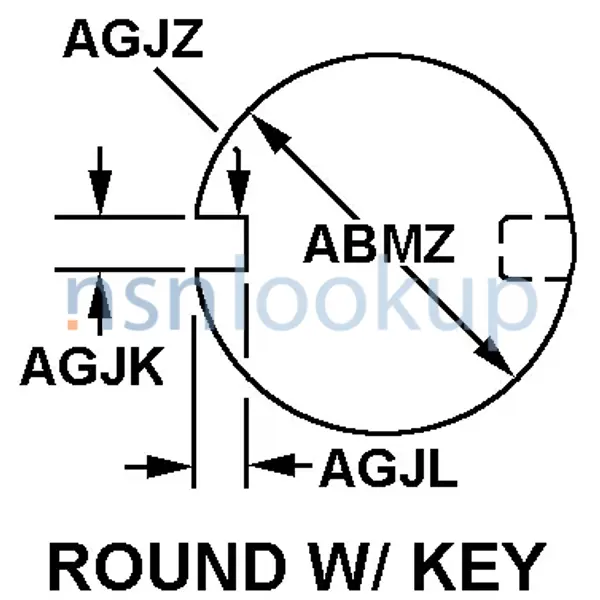

- Center Hole Shape Style [ABMX]
- Round W/Key
- Corner Shape [BZLX]
- Square First Inside Corner
- Corner Shape [BZLX]
- Square First Outside Corner
- Corner Shape [BZLX]
- Square Fourth Outside Corner
- Corner Shape [BZLX]
- Square Second Inside Corner
- Corner Shape [BZLX]
- Square Second Outside Corner
- Corner Shape [BZLX]
- Square Third Outside Corner
- Cross-Sectional Shape Style [AAGR]
- Shouldered
- Diameter [ABMZ]
- 0.4710 Inches Minimum And 0.4770 Inches Maximum
- Flange Thickness [ABKU]
- 0.0850 Inches Minimum And 0.0900 Inches Maximum
- Outside Diameter [ABKV]
- 1.1200 Inches Minimum And 1.1300 Inches Maximum
- Shank Outside Diameter [AGGZ]
- 0.6160 Inches Minimum And 0.6240 Inches Maximum
- Overall Thickness [ADUM]
- 0.1800 Inches Minimum And 0.1900 Inches Maximum
- Style Designator [STYL]
- Round
- Surface Treatment [SFTT]
- Cadmium Overall
Weapon Systems (WSDC) 3120-00-707-8241
DLA Procurement Analysis 3120-00-707-8241
- Last Stock Position:
- 10 In Stock
- DLA Administrative Lead Time:
- Subscribe
- DLA Production Lead Time:
- Subscribe
Management Data 3120-00-707-8241
Army
- Materiel Category and Inventory Manager:
- T
- Industrial Supplies (DLA/GSA Items)
- Appropriation and Budget Activity:
- 2
- Stock Fund Secondary Items
- Management Inventory Segment:
- 2
- Non-Repairable Items(Exclusive of Insurance and Provisioning Items)
This code will be used to identify items, which are not reparable.
- Weapons System / End Item / Homogeneous Group:
- 00
- DLA/GSA Material
DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
- Accounting Requirements:
- X
- Expendable item.An item of Army property coded with an ARC of X in the AMDF. Expendable items require no formal accountability after issue from a stock record account.Commercial and fabricated items similar to items coded X in the AMDF are considered expendable items.
Air Force
- Fund:
- SF
- Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point
- Budget:
- 9
- 57X4921.070 - General Support DIV - Air Force decentralized managed expense items (ERRC XB3, XF3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors
- Aggregation Code:
- YP
- GAS TURBINES AND JET ENGINES NON-AIRCRAFT
- Price Validation Code:
- N
- The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
The price has not been analyzed or reviewed for accuracy.
ZOP or Standard price challenges are permissible but must be supported with adequate justification. However, if coded for Local Purchase (LP) or Fabrication/Manufacture as indicated with an (LM) Acquisition Advice Code of “L” or “F”, then it must be evaluated locally where purchased or fabricated.
- Expendability
Recoverability
Repairability: - N
- Expendable. Condemn at User. Stock Fund (except Munitions).
Navy
- Cognizance:
- 9B
- Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
Similar Supply Items to 3120-00-707-8241
Freight Information 3120-00-707-8241
3120-00-707-8241 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 194160. A Sub NMFC of X. It has a NMFC Description of WASHER OR GASKETS, IRON OR STEEL,. 3120-00-707-8241 is rated as class 50 when transported by Less-Than Truckload (LTL) freight. 3120-00-707-8241 is rated as class 50 when transported by Less-Than Carload (LCL) rail or ocean freight. It has a Uniform Freight Classification (UFC) number of 55210 which rates the freight between FCL and LCL. 3120-00-707-8241 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 576 for ocean manifesting and military sealift. 3120-00-707-8241 is not classified as a special type of cargo when transported by water. 3120-00-707-8241 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Procurement History 3120-00-707-8241 3 Records
Contracting Technical Data File (CTDF) 3120-00-707-8241 October 2021
Criticality and Quality
- Critical Item Code:
- X
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- F
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- Y
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
