3120-00-448-2242
Sleeve Bearing
3120004482242 004482242 12769
A tubular shaped item with or without flange(s) designed to reduce friction and carry a kinetic load on the surface(s) parallel to the axis of the bore. It must have a visible or detectable means of lubrication or be self-lubricated. The over all length must exceed 25 percent of the outside diameter or the shortest distance between peripheral flats of the body, except for straight tubular (without flange or shoulder) items having a bearing surface(s) parallel to the axis of the bore only. Includes items which are divided into two or more segments which include 180 degrees (3.141 radians) or less of the bearing periphery. See also BUSHING, SLEEVE; SPACER, SLEEVE; and WASHER (as modified). Excludes PIN, HOLLOW. View more Sleeve Bearing
May 2023
2
Marketplace 3120-00-448-2242
Request a Quotation from participating marketplace vendors
Related Documents 3120-00-448-2242 5+ Documents (More...)
/fsg-31/fsc-3120/us 3120-00-448-2242 Sleeve Bearing 3120004482242 004482242,12769 FedMall Updated Every
Day 3120-00-448-2242 RQST NE Updated Every Day 3120-00-448-2242 RQST Updated Every Day 3120-00-448-2242
/www.nsnlookup.com /fsg-47/fsc-4730/us 4730-01-242-3372 Sediment Strainer Element 4730012423372 21-12769
Sleeve Bearing 3120004482242 004482242,12769 -60(V -158-4740Voltmeter6625011584740 011584740 https
Quotation Subscribe to View Vendor Details... 12769 SEAT 17 EA NS Request Quotation Subscribe to View
Vendor Details... 12769 SEAT,VALVE RQST NS Request Quotation Updated Every Day 4820-00-723-8772 RQST
(Active) Primary Buy RNCC 3 RNVC 2 DAC 4 CX-12769/TSC-60(V Branched https//www.nsnlookup.com /fsg-65
Sleeve Bearing 3120004482242 004482242,12769 Quotation Updated Every Day 4820-00-723-8772 RQST
Vendor Details... 12769 SEAT,VALVE RQST NS Request Quotation Updated Every Day 4820-00-723-8772 RQST
https//www.nsnlookup.com /fsg-31/fsc-3120/us 3120-00-448-2242 Sleeve Bearing 3120004482242 004482242,12769
Restrictions 3120-00-448-2242
3120-00-448-2242 is a Sleeve Bearing that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. The precious metals content of this item is unknown.
Import and Export 3120-00-448-2242
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 3120-00-448-2242
- US Air Force (FGGG)
- Effective Date:
- 1 Feb 2005
- Former MOE Rule:
- FGCX
- US Navy (N9BG)
- Effective Date:
- 1 Dec 2013
- Supplementary Collaborators:
- GG
Approved Sources 3120-00-448-2242
- Part Number
- Manufacturer
- Status
- 12769
- Manufacturer
- 89939 - Time Manufacturing Company (Active)
- Primary Buy
- Primary Buy
Datasheet 3120-00-448-2242
- Characteristic
- Specifications
- FIIG
- Specifications
- A045A0
- Antirotation/Lubrication Type And Quantity [CTJM]
- 2 Hole
- Body Inside Diameter [ADAS]
- 3.0060 Inches Minimum And 3.0080 Inches Maximum
- Body Outside Diameter [ADAR]
- 3.5010 Inches Minimum And 3.5020 Inches Maximum
- Corner Shape [BZLX]
- Square Inside Left Corner
- Corner Shape [BZLX]
- Square Left Flange Body Corner
- Corner Shape [BZLX]
- Square Left Flange Outside Right Corner
- Corner Shape [BZLX]
- Square Inside Right Corner
- Corner Shape [BZLX]
- Square Outside Left Corner
- Corner Shape [BZLX]
- Square Outside Right Corner
- Flange Outside Diameter [AEPR]
- 3.8438 Inches Minimum And 3.9062 Inches Maximum
- Flange Width [AGFF]
- 0.1770 Inches Minimum And 0.1970 Inches Maximum
- Hole Diameter [AAUB]
- 0.2500 Inches Nominal First
- Material [MATT]
- Copper Alloy Overall
- Lubrication Material [ADZG]
- Carbon Graphite
- Lubricant Accommodation Style [AGKH]

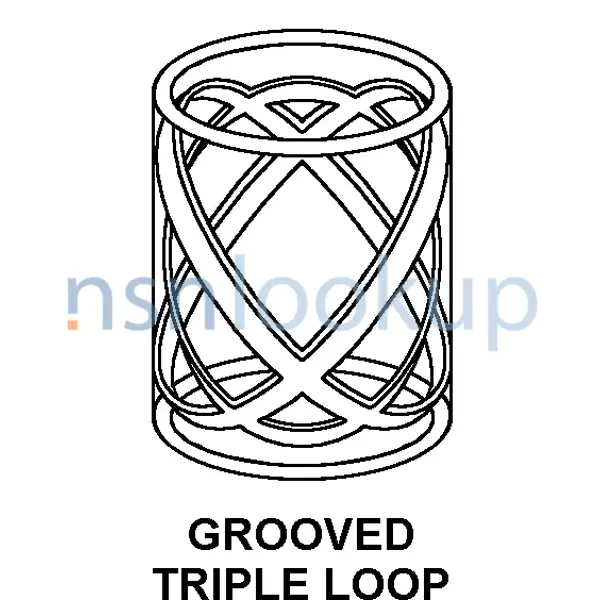

- Grooved Triple Loop
- Overall Length [ABHP]
- 2.1775 Inches Minimum And 2.1975 Inches Maximum
- Special Features [FEAT]
- Internal Groove Filled With Graphite 89939
- Style Designator [STYL]
- Solid, External Flange One End
DLA Procurement Analysis 3120-00-448-2242
Management Data 3120-00-448-2242
Navy
- Cognizance:
- 9B
- Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
Similar Supply Items to 3120-00-448-2242
Freight Information 3120-00-448-2242
3120-00-448-2242 has freight characteristics managed by the General Services Administration (GSA).It has a National Motor Freight Classification (NMFC) of 114870. A Sub NMFC of X. It has a NMFC Description of BEARING/BUSHING METAL. 3120-00-448-2242 is rated as class 77.5 when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 58890 which rates the freight between FCL and LCL. 3120-00-448-2242 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 742 for ocean manifesting and military sealift. 3120-00-448-2242 is not classified as a special type of cargo when transported by water. 3120-00-448-2242 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
