3120-00-165-5971
Linear-Rotary Motion Roller
3120001655971 001655971 2585295
A cylindrical body having a centrally located hole to accommodate a pin or shaft for attachment to a push rod guide, yoke, rocker arm, turntable, or rail. The item provides a rolling contact with the face of a valve stem, or the lobes of a cam ring or camshaft on engines, fuel injection pumps, latches, turntables, parallel bearing surfaces requiring a roller support, and the like. Excludes BEARING, ROLLER, CYLINDRICAL; ROLLER, ELECTRICAL SWITCH; and friction bearings. See also CAM FOLLOWER, NEEDLE BEARING. View more Linear-Rotary Motion Roller
May 2023
6
Marketplace 3120-00-165-5971
Request a Quotation from participating marketplace vendors
Related Documents 3120-00-165-5971 1+ Documents (More...)
3120-00-165-5971 1+ Documents ( More... ) https//www.nsnlookup.com /fsg-31/fsc-3120/us 3120-00-165-5971
Linear-Rotary Motion Roller 3120001655971 United States (US) 4. 3120-00-165-5971 Marketplace Restrictions
Restrictions 3120-00-165-5971
3120-00-165-5971 is a Linear-Rotary Motion Roller that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
Import and Export 3120-00-165-5971
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 3120-00-165-5971
- US Marine Corps (MC41)
- Effective Date:
- 1 Feb 2005
- Spain (YB)
- Spain (YB01)
- Effective Date:
- 1 Apr 1991
- Argentina (YF01)
- Effective Date:
- 1 Sep 2015
- Republic of Korea (ZH)
- Republic of Korea (ZH01)
- Effective Date:
- 1 Apr 1991
- United States of America (ZZ)
Approved Sources 3120-00-165-5971
- Part Number
- Manufacturer
- Status
- 2585295
- Manufacturer
- 80064 - Naval Ship Systems Command (Active)
- Primary Buy
- Primary Buy
Datasheet 3120-00-165-5971
- Characteristic
- Specifications
- FIIG
- Specifications
- T267-K
- Bore Inside Diameter [BCXD]
- 0.2510 Inches Minimum And 0.2520 Inches Maximum
- Bore Length [ADGE]
- 0.3750 Inches Nominal
- Casehardening Indicator [AASG]
- Not Casehardened
- Face Width [AQPL]
- 0.2500 Inches Nominal
- Hub Diameter [ASBM]
- 0.5000 Inches Nominal
- Material [MATT]
- Plastic
- Outside Diameter [ABKV]
- 0.9200 Inches Nominal

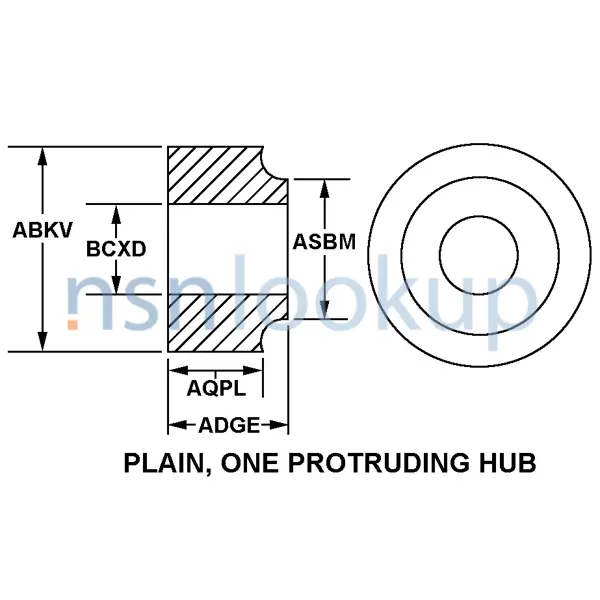

- Style Designator [STYL]
- Plain, One Protruding Hub
DLA Procurement Analysis 3120-00-165-5971
Management Data 3120-00-165-5971
Marine Corps
- Stores Account:
- 1
- Stock Fund Account Item
- Combat Essentiality:
- 2
- Non-Critical Repair Part
- Echelon Management:
- B2
- Operational Test:
- No Special Procedures
- Physical Category:
- 1
- Bin
NATO Stock Numbers Related to 3120-00-165-5971
Freight Information 3120-00-165-5971
3120-00-165-5971 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 133300. A Sub NMFC of Z. It has a NMFC Description of MACHINERY/MACHINES NOI. 3120-00-165-5971 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 63220 which rates the freight between FCL and LCL. 3120-00-165-5971 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 742 for ocean manifesting and military sealift. 3120-00-165-5971 is not classified as a special type of cargo when transported by water. 3120-00-165-5971 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Contracting Technical Data File (CTDF) 3120-00-165-5971 October 2021
Criticality and Quality
- Critical Item Code:
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- N
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- Y
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
