3110-01-619-8770
Thrust Ball Bearing
3110016198770 016198770 061509
An antifriction bearing having a ball rolling element, designed to resist axial thrust, or to support an axial load. Excludes BEARING, BALL, PIVOT. View more Thrust Ball Bearing
May 2023
1
Marketplace 3110-01-619-8770
Request a Quotation from participating marketplace vendors
Related Documents 3110-01-619-8770 2+ Documents (More...)
BUY NE FedMall Updated Every Day 3110-01-619-8770 RQST NE Updated Every Day 3110-01-619-8770 RQST
Updated Every Day 3110-01-619-8770 RQST NE Related Documents 3110-01-619-8770 2+ Documents ( More...
99-151-1839 United Kingdom (ZK) Approved Sources 5330-99-151-1839 Part NumberManufacturerStatusWG-061509
Restrictions 3110-01-619-8770
3110-01-619-8770 is a Thrust Ball Bearing that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
Import and Export 3110-01-619-8770
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 3110-01-619-8770
- US Navy (N9BZ)
- Effective Date:
- 1 Jun 2013
- Supplementary Collaborators:
- HD
Approved Sources 3110-01-619-8770
- Part Number
- Manufacturer
- Status
- 061509
- Manufacturer
- 1PWP4 - Hamilton Jet, Inc. (Active)
- Primary Buy
- Primary Buy
Datasheet 3110-01-619-8770
- Characteristic
- Specifications
- FIIG
- Specifications
- A044A0
- Material [MATT]
- Steel Overall

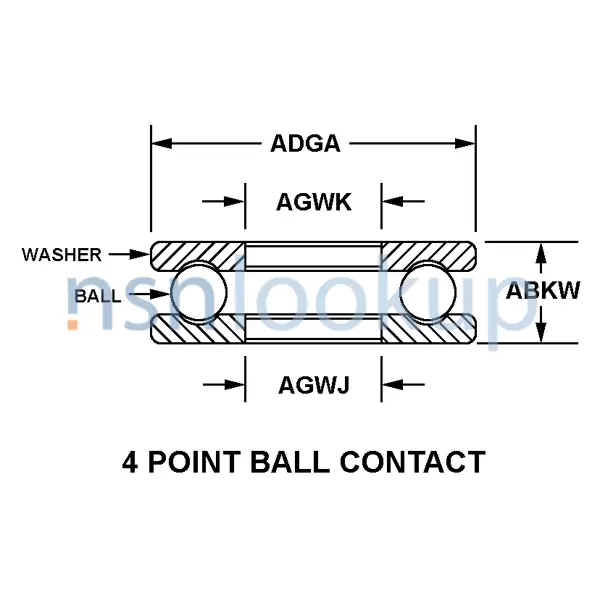

- Style Designator [STYL]
- 4 Point Ball Contact
- Overall Height [ABKW]
- 34.0 Millimeters Nominal
- Overall Outside Diameter [ADGA]
- 225.0 Millimeters Nominal
- Bore Smallest Diameter [AGWJ]
- 222.0 Millimeters Nominal
- Largest Bore Diameter [AGWK]
- 180.0 Millimeters Nominal
- Surface Finish [AGYE]
- Ground
- Alignment Type [AGZA]
- Rigid
- Thrust Directional Capability Designation [AGZQ]
- Single
- End Item Identification [AGAV]
- Waterjet,Marine
- Part Name Assigned By Controlling Agency [CXCY]
- Bearing,Skf Preload 51136
Weapon Systems (WSDC) 3110-01-619-8770
DLA Procurement Analysis 3110-01-619-8770
Management Data 3110-01-619-8770
Navy
- Cognizance:
- 9B
- Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
Similar Supply Items to 3110-01-619-8770
Freight Information 3110-01-619-8770
3110-01-619-8770 has freight characteristics managed by the Food and Drug Administration (FDA).It has a National Motor Freight Classification (NMFC) of 114800. A Sub NMFC of X. It has a NMFC Description of BEARING,ROLLER,THRUST. 3110-01-619-8770 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 58850 which rates the freight between FCL and LCL. 3110-01-619-8770 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 742 for ocean manifesting and military sealift. 3110-01-619-8770 is not classified as a special type of cargo when transported by water. 3110-01-619-8770 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Procurement History 3110-01-619-8770 2 Records
Contracting Technical Data File (CTDF) 3110-01-619-8770 October 2021
Criticality and Quality
- Critical Item Code:
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- S
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- N
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
