3110-01-560-6878
Thrust Ball Bearing
3110015606878 015606878 60715K16 741272 ITEM 2
An antifriction bearing having a ball rolling element, designed to resist axial thrust, or to support an axial load. Excludes BEARING, BALL, PIVOT. View more Thrust Ball Bearing
May 2023
1
Marketplace 3110-01-560-6878
Request a Quotation from participating marketplace vendors
Related Documents 3110-01-560-6878 3+ Documents (More...)
United States (US) 4. 3110-01-560-6878 Marketplace Restrictions Approved Sources Datasheet Management
BUY NE FedMall Updated Every Day 60715K16 RQST NE Updated Every Day 3110-01-560-6878 RQST NE Updated
Thrust Ball Bearing 3110015606878 015606878 Upgrade your Account Upgrade 3110-01-560-6878Thrust
Ball Bearing3110015606878 015606878 60715K16 741272 3110015606878015606878 Upgrade your Account Upgrade
Thrust Ball Bearing 3110015606878 015606878 Upgrade your Account Upgrade 3110-01-560-6878Thrust
Ball Bearing3110015606878 015606878 60715K16 741272 Manicotto 2910150031799 150031799,741272 4483Couch
Restrictions 3110-01-560-6878
3110-01-560-6878 is a Thrust Ball Bearing that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
Import and Export 3110-01-560-6878
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 3110-01-560-6878
- US Navy (N9BG)
- Effective Date:
- 1 Feb 2008
- Supplementary Collaborators:
- HD
Approved Sources 3110-01-560-6878
- Part Number
- Manufacturer
- Status
- 60715K16
- Manufacturer
- 3A054 - Mcmaster-Carr Supply Co (Active)
- Primary Buy
- Primary Buy
- 741272 ITEM 2
- 35076 - Aircraft Appliances And Equipment (Active)
- Secondary Buy
- Secondary Buy
Datasheet 3110-01-560-6878
- Characteristic
- Specifications
- FIIG
- Specifications
- A044A0
- Material [MATT]
- Steel Comp E52100 Overall

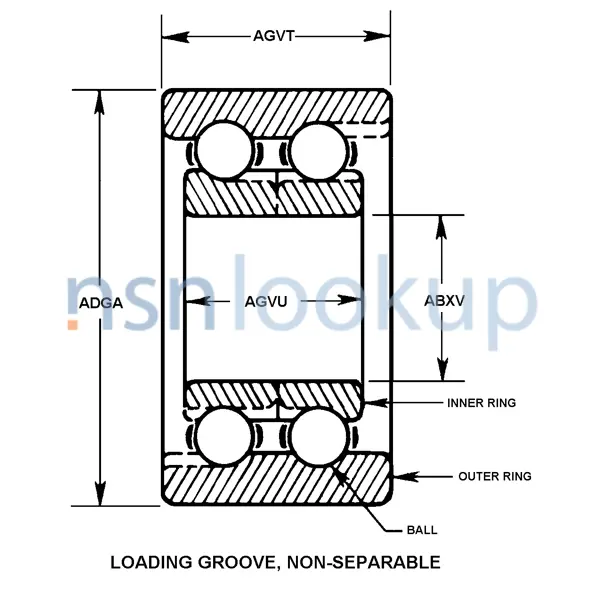

- Style Designator [STYL]
- Loading Groove, Non-Separable
- Bore Diameter [ABXV]
- 1.1250 Inches Nominal
- Overall Outside Diameter [ADGA]
- 2.0938 Inches Nominal
- Alignment Type [AGZA]
- Self-Aligning
- Self-Alignment Location [AHAW]
- Internal
- Special Features [FEAT]
- Load Capacity 6,900Lbs Max Rpm 3,600
- End Item Identification [AGAV]
- Fuel Filter Sep 741230
DLA Procurement Analysis 3110-01-560-6878
Management Data 3110-01-560-6878
Navy
- Cognizance:
- 9B
- Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
Similar Supply Items to 3110-01-560-6878
Freight Information 3110-01-560-6878
3110-01-560-6878 has freight characteristics managed by the Food and Drug Administration (FDA).It has a National Motor Freight Classification (NMFC) of 114800. A Sub NMFC of X. It has a NMFC Description of BEARING,ROLLER,THRUST. 3110-01-560-6878 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 58850 which rates the freight between FCL and LCL. 3110-01-560-6878 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 742 for ocean manifesting and military sealift. 3110-01-560-6878 is not classified as a special type of cargo when transported by water. 3110-01-560-6878 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Contracting Technical Data File (CTDF) 3110-01-560-6878 October 2021
Criticality and Quality
- Critical Item Code:
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- F
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- Y
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
