3110-01-521-6183
Bearing Retaining Plate
3110015216183 015216183 7287418-8 7287418 ITEM NO. 8
A comparatively flat rigid item, with or without a centrally located aperture, designed to hold an annular bearing or a sleeve bearing in a fitted inclosure. It must have drilled and/or tapped holes for mounting purposes. Excludes END BELL, ELECTRICAL ROTATING EQUIPMENT. View more Bearing Retaining Plate
May 2023
1
Marketplace 3110-01-521-6183
Request a Quotation from participating marketplace vendors
Related Documents 3110-01-521-6183 5+ Documents (More...)
(Identification) 1/3 NSN 3110-01-521-6183 (Identification) 2/3 NSN 3110-01-521-6183 (Identification
RQST NE Updated Every Day 3110-01-521-6183 RQST Updated Every Day 3110-01-521-6183 RQST NE Related Documents
Bearing Retaining Plate 3110015216183 a day Upgrade your Account Upgrade 3110-01-521-6183Bearing
Retaining Plate3110015216183 015216183 7287418 -8 7287418 ITEM NO. 8 A comparatively flat rigid item
Bearing Retaining Plate 3110015216183 a day Upgrade your Account Upgrade 3110-01-521-6183Bearing
Retaining Plate3110015216183 015216183 7287418 -8 7287418 ITEM NO. 8 A comparatively flat rigid item
Bearing Retaining Plate 3110015216183 www.nsnlookup.com /fsg-31/fsc-3110/us 3110-01-485-8044 Bearing
Assy3120014847735 014847735 6853511 ITEM NO. 7 7287418 https//www.nsnlookup.com /fsg-31/fsc-3110/us 3110-01-521-6183
fsc-3110/us 3110-01-485-8047 Bearing Retaining Plate 3110014858047 6183 Bearing Retaining Plate 3110015216183
Restrictions 3110-01-521-6183
IUID Required
3110-01-521-6183 is a Bearing Retaining Plate that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
Import and Export 3110-01-521-6183
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 3110-01-521-6183
- US Navy (N2H4)
- Effective Date:
- 1 Jun 2004
- Supplementary Receivers:
- GG
Approved Sources 3110-01-521-6183
- Part Number
- Manufacturer
- Status
- 7287418-8
- Manufacturer
- 53711 - Naval Sea Systems Command (Active)
- Primary Buy
- Primary Buy
- 7287418 ITEM NO. 8
- 53711 - Naval Sea Systems Command (Active)
- Secondary Buy
- Secondary Buy
Datasheet 3110-01-521-6183
- Characteristic
- Specifications
- FIIG
- Specifications
- A093A0
- Material [MATT]
- Plastic Bearing

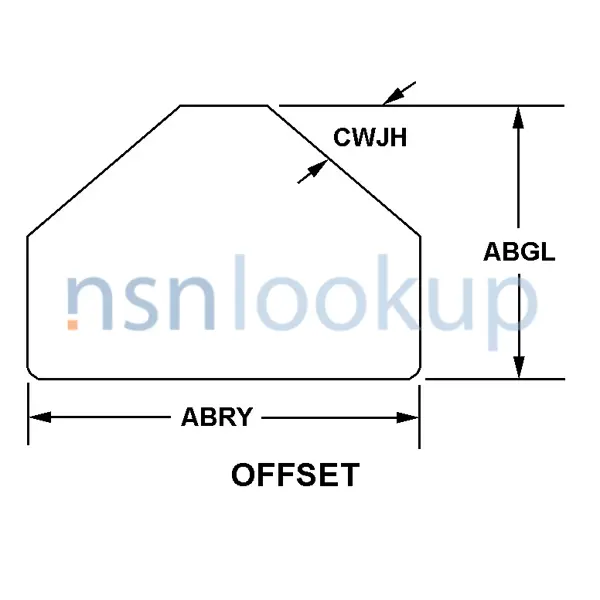

- Style Designator [STYL]
- Offset
- Edge Angle [CWJH]
- 90.0 Degrees Nominal
- Width [ABGL]
- 5.250 Inches Nominal
- Length [ABRY]
- 6.970 Inches Nominal
- Cross-Sectional Shape Style [AAGR]
- Counterbored W/ Aperture
- Minor Thickness [ABMB]
- 0.380 Inches Nominal
- Aperture Diameter [ABVL]
- 1.875 Inches Nominal
- Counterbore Diameter [CWGF]
- 2.375 Inches Nominal
- Counterbore Depth [CWHX]
- 0.250 Inches Nominal
- Overall Thickness [ADUM]
- 1.510 Inches Nominal
- Mounting Hole Type [CWJW]
- Round, Threaded
- Thread Series Designator [THSD]
- Unc
- Nominal Thread Size [CQJX]
- 24.000 Inches
- Thread Quantity Per Inch [CMLP]
- 24
- Mounting Hole Arrangement Style [ADFU]
- Four Holes
- Distance Between Holes Along Length [ADNY]
- 6.970 Inches Nominal
- Distance Between Holes Along Width [ADNZ]
- 2.500 Inches Nominal
- Special Features [FEAT]
- Delrin Steady Bearing Assembly Port And Stbd
- End Item Identification [AGAV]
- Faired Mast Assy, Hdr
- Part Name Assigned By Controlling Agency [CXCY]
- Steawdy Bearing Assembly
Management Data 3110-01-521-6183
- Effective Date
- Organization
- Unit of Issue
- Unit Price
- Qty Unit Pack
- Unit of Issue
- Oct 2022
- Department of the Navy (DN)
- EA
- Subscribe
- EA
- Oct 2021
- Department of the Navy (DN)
- EA
- Subscribe
- EA
- Nov 2020
- Department of the Navy (DN)
- EA
- Subscribe
- 1
- EA
- Nov 2019
- Department of the Navy (DN)
- EA
- Subscribe
- EA
- MOE
- USC
- Code
- Statement
- Order of Use
- Jump To Code
- Qty Per Assy
- UOM
- Technical Document
- Quantative Expression
- Code
- Department of the Navy (DN)
- L
- R
- Refer To Net Price 5473.00
- NET PRICE 5473.00
- R
Navy
- Cognizance:
- 7G
- Issue, Repair, Requisition Restriction Code:
- 00
- No Restriction
- Special Material Content:
- 9
- Non-Hazardous or Non-Sensitive Item
Similar Supply Items to 3110-01-521-6183
Freight Information 3110-01-521-6183
3110-01-521-6183 has freight characteristics managed by the Food and Drug Administration (FDA).It has a National Motor Freight Classification (NMFC) of 114820. A Sub NMFC of X. It has a NMFC Description of BEARINGS/BUSHINGS NOI BALL/ROLLER. 3110-01-521-6183 is rated as class 77.5 when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 58860 which rates the freight between FCL and LCL. 3110-01-521-6183 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 742 for ocean manifesting and military sealift. 3110-01-521-6183 is not classified as a special type of cargo when transported by water. 3110-01-521-6183 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 3110-01-521-6183
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- Packaging Data does not meet current MIL-STD-2073-1E
- Storage Environment
- Unheated General Purpose
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- --
- --
- --
- Over 10lb
- Less than 85G
- Special Requirement
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- 1
- --
- --
- --
- --
- Any Suitable Process
- --
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- MIL-PRF-16173, Grade 2, Corrosion Preventive, Solvent Cutback, Cold Application, Soft Film
- MIL-PRF-121, Greaseproof, Waterproof Barrier
- Wood Blocking and Bracing, Fasteners, or Steel Strapping, for Tie-down purposes. Rubber tired wheels shall be blocked clear of the floor of the crate or skid and shall not be load bearing
- Not Applicable
- ASTM-D6880, Class 2, Heavy Duty Wood Box
- Open for inspection or use only
- MIL-PRF-121, Greaseproof, Waterproof Barrier
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- --
- No Requirement
