3110-01-473-1209
Bearing Retaining Plate
3110014731209 014731209 2784706-1
A comparatively flat rigid item, with or without a centrally located aperture, designed to hold an annular bearing or a sleeve bearing in a fitted inclosure. It must have drilled and/or tapped holes for mounting purposes. Excludes END BELL, ELECTRICAL ROTATING EQUIPMENT. View more Bearing Retaining Plate
November 2023
1
Marketplace 3110-01-473-1209
Request a Quotation from participating marketplace vendors
Related Documents 3110-01-473-1209 1+ Documents (More...)
BUY NE FedMall Updated Every Day 3110-01-473-1209 RQST NE Updated Every Day 3110-01-473-1209 RQST
Updated Every Day 3110-01-473-1209 RQST NE Related Documents 3110-01-473-1209 1+ Documents ( More...
Restrictions 3110-01-473-1209
3110-01-473-1209 is a Bearing Retaining Plate that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
Import and Export 3110-01-473-1209
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 3110-01-473-1209
- US Navy (N9BG)
- Effective Date:
- 1 Aug 2012
- Former MOE Rule:
- N1R5
- Supplementary Collaborators:
- GGKEGT
Approved Sources 3110-01-473-1209
- Part Number
- Manufacturer
- Status
- 2784706-1
- Manufacturer
- 70210 - Honeywell International Inc. (Active)
- Primary Buy
- Primary Buy
Datasheet 3110-01-473-1209
- Characteristic
- Specifications
- FIIG
- Specifications
- A093A0
- Material [MATT]
- Aluminum Alloy 6061 Overall
- Material Document And Classification [MDCL]
- Qq-A-250/11 Fed Spec Single Material Response Overall
- Style Designator [STYL]
- Round With Lugs
- Cross-Sectional Shape Style [AAGR]
- Flat W/Aperture
- Mounting Hole Type [CWJW]
- Round, Unthreaded

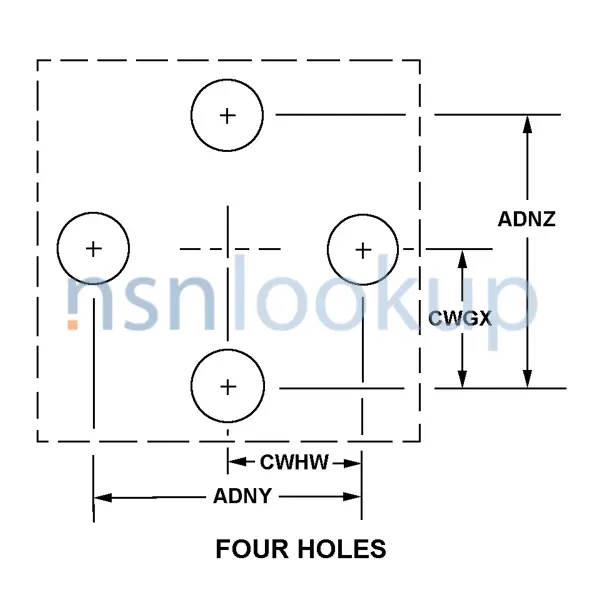

- Mounting Hole Arrangement Style [ADFU]
- Four Holes
Weapon Systems (WSDC) 3110-01-473-1209
DLA Procurement Analysis 3110-01-473-1209
- Last Stock Position:
- 148 In Stock
- DLA Administrative Lead Time:
- Subscribe
- DLA Production Lead Time:
- Subscribe
Management Data 3110-01-473-1209
Navy
- Cognizance:
- 9B
- Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
- Special Material ID:
- QE
- Fighter Aircraft - First (F18 E/F)
- Special Material Content:
- 9
- Non-Hazardous or Non-Sensitive Item
Similar Supply Items to 3110-01-473-1209
Freight Information 3110-01-473-1209
3110-01-473-1209 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 114820. A Sub NMFC of X. It has a NMFC Description of BEARINGS/BUSHINGS NOI BALL/ROLLER. 3110-01-473-1209 is rated as class 77.5 when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 58860 which rates the freight between FCL and LCL. 3110-01-473-1209 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 742 for ocean manifesting and military sealift. 3110-01-473-1209 is not classified as a special type of cargo when transported by water. 3110-01-473-1209 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Contracting Technical Data File (CTDF) 3110-01-473-1209 October 2021
Criticality and Quality
- Critical Item Code:
- X
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- F
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- Y
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
