3110-01-397-5991
Bearing Retaining Plate
3110013975991 013975991 423-10-103-01
A comparatively flat rigid item, with or without a centrally located aperture, designed to hold an annular bearing or a sleeve bearing in a fitted inclosure. It must have drilled and/or tapped holes for mounting purposes. Excludes END BELL, ELECTRICAL ROTATING EQUIPMENT. View more Bearing Retaining Plate
January 2023
1
Marketplace 3110-01-397-5991
Request a Quotation from participating marketplace vendors
Related Documents 3110-01-397-5991 1+ Documents (More...)
3110-01-397-5991 1+ Documents ( More... ) https//www.nsnlookup.com /fsg-31/fsc-3110/us 3110-01-397-5991
Bearing Retaining Plate 3110013975991 (Identification) 1/3 NSN 3110-01-397-5991 (Identification) 2/3
Restrictions 3110-01-397-5991
3110-01-397-5991 is a Bearing Retaining Plate that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
Import and Export 3110-01-397-5991
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 3110-01-397-5991
- US Coast Guard (C056)
- Effective Date:
- 1 Jul 2010
- Former MOE Rule:
- C163
- Supplementary Receivers:
- XH
Approved Sources 3110-01-397-5991
- Part Number
- Manufacturer
- Status
- 423-10-103-01
- Manufacturer
- 58419 - Sicma Aero Seat Services Inc (Active)
- Primary Buy
- Primary Buy
Datasheet 3110-01-397-5991
- Characteristic
- Specifications
- FIIG
- Specifications
- A093A0
- Distance From Horizontal Centerline To Center Of Right Hole [CWJN]
- 0.960 Inches Nominal
- Distance From Vertical Centerline To Center Of Right Hole [CWHW]
- 1.008 Inches Nominal
- End Item Identification [AGAV]
- Hh65 Coast Guard Helicopter
- Counterbore Depth [CWHX]
- 0.388 Inches Nominal
- Counterbore Diameter [CWGF]
- 1.368 Inches Nominal

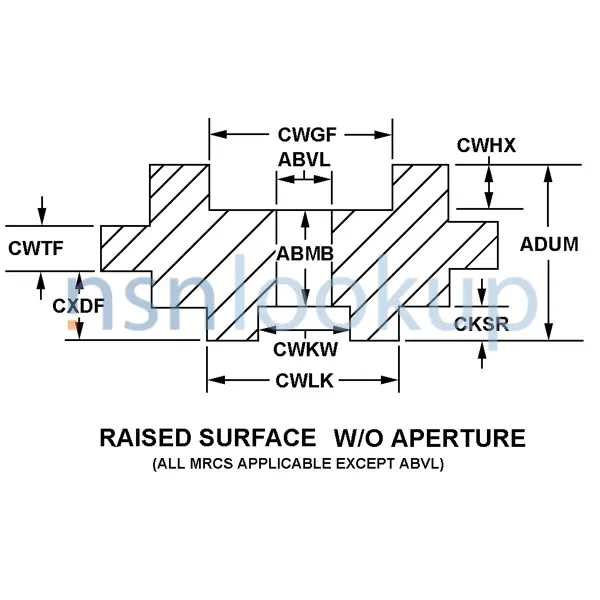

- Cross-Sectional Shape Style [AAGR]
- Raised Surfaces W/O Aperture
- Distance Between Holes Along Length [ADNY]
- 2.176 Inches Nominal
- Distance Between Holes Along Width [ADNZ]
- 2.168 Inches Nominal
- Flange Thickness [CWTF]
- 0.130 Inches Nominal
- Material [MATT]
- Aluminum Overall
- Minor Thickness [ABMB]
- 0.666 Inches Nominal
- Mounting Hole Arrangement Style [ADFU]
- Four Holes
- Mounting Hole Diameter [ABTB]
- 0.078 Inches Nominal
- Mounting Hole Type [CWJW]
- Round, Unthreaded
- Inside Raised Surface Diameter [CWKW]
- 1.368 Inches Nominal
- Length [ABRY]
- 2.762 Inches Nominal
- Raised Surface Height [CKSR]
- 0.140 Inches Nominal
- Raised Surface To Flange Height [CXDP]
- 0.140 Inches Nominal
- Outside Raised Surface Diameter [CWLK]
- 1.560 Inches Nominal
- Overall Thickness [ADUM]
- 0.664 Inches Nominal
- Style Designator [STYL]
- Square
- Surface Treatment [SFTT]
- Anodize Overall
Management Data 3110-01-397-5991
- Effective Date
- Organization
- Unit of Issue
- Unit Price
- Qty Unit Pack
- Unit of Issue
- Jul 2010
- US Coast Guard (GP)
- EA
- Subscribe
- 1
- EA
Coast Guard
- Inventory Activity:
- A
- Appropriations Purchase Account item managed for the Coast Guard by the respective Inventory Control Point. An unfunded requisition is required
- Serial Number Control:
- 0
- Item not controlled by serial number
- Material Control:
- 9
- Non-Hazardous or Non-Sensitive Item
Similar Supply Items to 3110-01-397-5991
Freight Information 3110-01-397-5991
3110-01-397-5991 has freight characteristics.. 3110-01-397-5991 has a variance between NMFC and UFC when transported by rail and the description should be consulted.
