3110-01-344-0703
Bearing Retaining Plate
3110013440703 013440703 6544C061-1
A comparatively flat rigid item, with or without a centrally located aperture, designed to hold an annular bearing or a sleeve bearing in a fitted inclosure. It must have drilled and/or tapped holes for mounting purposes. Excludes END BELL, ELECTRICAL ROTATING EQUIPMENT. View more Bearing Retaining Plate
November 2023
4
Marketplace 3110-01-344-0703
Request a Quotation from participating marketplace vendors
Related Documents 3110-01-344-0703 1+ Documents (More...)
3110-01-344-0703 1+ Documents ( More... ) https//www.nsnlookup.com /fsg-31/fsc-3110/us 3110-01-344-0703
Bearing Retaining Plate 3110013440703 (Identification) 1/2 NSN 3110-01-344-0703 (Identification) 2/2
Restrictions 3110-01-344-0703
3110-01-344-0703 is a Bearing Retaining Plate that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
Import and Export 3110-01-344-0703
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 3110-01-344-0703
- US Navy (N9BG)
- Effective Date:
- 1 Feb 2005
- Former MOE Rule:
- N9GD
- Supplementary Collaborators:
- HDKE
- Spain (YB01)
- Effective Date:
- 1 May 1997
- Australia (ZA01)
- Effective Date:
- 1 May 1994
Approved Sources 3110-01-344-0703
- Part Number
- Manufacturer
- Status
- 6544C061-1
- Manufacturer
- 80020 - Naval Air Warfare Center Aircraft (Active)
- Primary Buy
- Primary Buy
- 6544C061-1
- 36334 - Indal Technologies Inc (Active)
- Secondary Buy
- Secondary Buy
Datasheet 3110-01-344-0703
- Characteristic
- Specifications
- FIIG
- Specifications
- A093A0
- Aperture Diameter [ABVL]
- 2.874 Inches Minimum And 2.876 Inches Maximum
- Body Thickness [ADPR]
- 0.420 Inches Nominal
- Bolt Circle Hole Quantity [ADPM]
- 3
- Counterbore Depth [CWHX]
- 0.2800 Inches Minimum And 0.3400 Inches Maximum
- Counterbore Diameter [CWGF]
- 3.2600 Inches Minimum And 3.3100 Inches Maximum
- Material [MATT]
- Steel Comp 1020 Overall
- Minor Thickness [ABMB]
- 0.6900 Inches Nominal
- Mounting Bolt Circle Diameter [AFFL]
- 4.5000 Inches Nominal
- Mounting Hole Arrangement Style [ADFU]
- Single Bolt Hole Circle
- Mounting Hole Diameter [ABTB]
- 0.5300 Inches Nominal
- Mounting Hole Type [CWJW]
- Round, Unthreaded
- Material Document And Classification [MDCL]
- Aisi Assn Std Single Material Response Overall
- Outside Diameter [ABKV]
- 5.500 Inches Nominal
- Outside Raised Surface Diameter [CWLK]
- 3.2000 Inches Nominal
- Overall Thickness [ADUM]
- 1.000 Inches Nominal

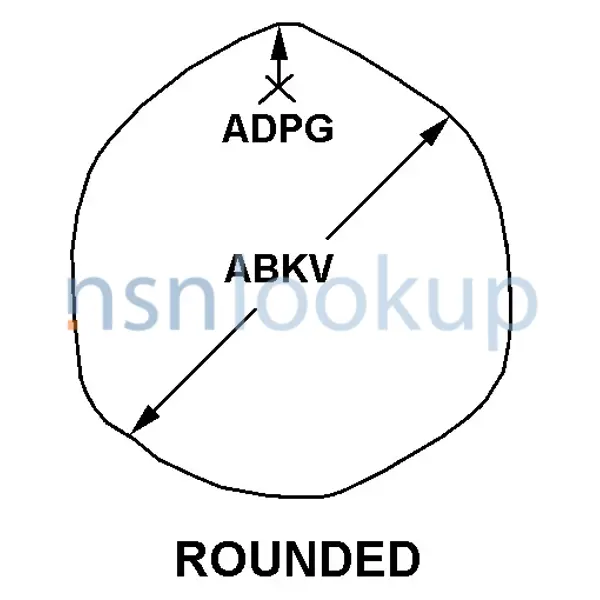

- Style Designator [STYL]
- Rounded
Weapon Systems (WSDC) 3110-01-344-0703
DLA Procurement Analysis 3110-01-344-0703
- Last Stock Position:
- 3 In Stock
- DLA Administrative Lead Time:
- Subscribe
- DLA Production Lead Time:
- Subscribe
Management Data 3110-01-344-0703
Navy
- Cognizance:
- 9B
- Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
Similar Supply Items to 3110-01-344-0703
Freight Information 3110-01-344-0703
3110-01-344-0703 has freight characteristics managed by the Southwestern Power Administration.It has a National Motor Freight Classification (NMFC) of 114820. A Sub NMFC of X. It has a NMFC Description of BEARINGS/BUSHINGS NOI BALL/ROLLER. 3110-01-344-0703 is rated as class 77.5 when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 58860 which rates the freight between FCL and LCL. 3110-01-344-0703 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 742 for ocean manifesting and military sealift. 3110-01-344-0703 is not classified as a special type of cargo when transported by water. 3110-01-344-0703 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
