3110-01-342-0424
Bearing Retaining Plate
3110013420424 013420424 833123-003
A comparatively flat rigid item, with or without a centrally located aperture, designed to hold an annular bearing or a sleeve bearing in a fitted inclosure. It must have drilled and/or tapped holes for mounting purposes. Excludes END BELL, ELECTRICAL ROTATING EQUIPMENT. View more Bearing Retaining Plate
May 2023
3
Marketplace 3110-01-342-0424
Request a Quotation from participating marketplace vendors
Related Documents 3110-01-342-0424 1+ Documents (More...)
BUY NE FedMall Updated Every Day 3110-01-342-0424 RQST NE Updated Every Day 3110-01-342-0424 RQST
Updated Every Day 3110-01-342-0424 RQST NE Related Documents 3110-01-342-0424 1+ Documents ( More...
Restrictions 3110-01-342-0424
3110-01-342-0424 is a Bearing Retaining Plate that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
Import and Export 3110-01-342-0424
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 3110-01-342-0424
- US Air Force (FGGG)
- Effective Date:
- 1 Feb 2005
- Former MOE Rule:
- FGCX
Approved Sources 3110-01-342-0424
- Part Number
- Manufacturer
- Status
- 833123-003
- Manufacturer
- 22915 - Northrop Grumman Corp (Active)
- Primary Buy
- Primary Buy
Datasheet 3110-01-342-0424
- Characteristic
- Specifications
- FIIG
- Specifications
- A093A0

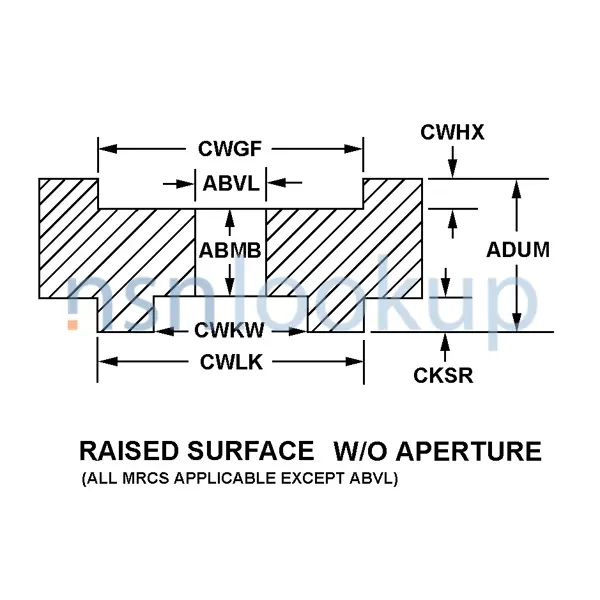

- Bolt Circle Hole Quantity [ADPM]
- 16
- Counterbore Depth [CWHX]
- 0.262 Inches Nominal
- Countersink Angle [CRSQ]
- 80.0 Degrees Minimum And 100.0 Degrees Maximum
- Counterbore Diameter [CWGF]
- 1.0234 Inches Minimum And 1.0236 Inches Maximum
- Countersink Diameter [AYRZ]
- 0.115 Inches Minimum And 0.130 Inches Maximum
- Cross-Sectional Shape Style [AAGR]
- Raised Surface W/O Aperture
- Material [MATT]
- Steel Comp Xm-12 Overall Or Steel Comp 303Se Overall
- Minor Thickness [ABMB]
- 0.135 Inches Minimum And 0.145 Inches Maximum
- Mounting Bolt Circle Diameter [AFFL]
- 1.562 Inches Nominal
- Mounting Hole Arrangement Style [ADFU]
- Single Bolt Hole Circle
- Mounting Hole Type [CWJW]
- Round, Threaded, Countersunk
- Nominal Thread Size [CQJX]
- 0.112 Inches
- Outside Diameter [ABKV]
- 1.850 Inches Minimum And 1.890 Inches Maximum
- Inside Raised Surface Diameter [CWKW]
- 1.078 Inches Nominal
- Material Document And Classification [MDCL]
- Astm A564 Assn Std 1St Material Response Overall Or Astm A582 Assn Std 2Nd Material Response Overall
- Raised Surface Height [CKSR]
- 0.185 Inches Minimum And 0.195 Inches Maximum
- Outside Raised Surface Diameter [CWLK]
- 1.2496 Inches Minimum And 1.2498 Inches Maximum
- Overall Thickness [ADUM]
- 0.445 Inches Minimum And 0.455 Inches Maximum
- Thread Quantity Per Inch [CMLP]
- 40
- Thread Series Designator [THSD]
- Unc
- Style Designator [STYL]
- Round
- Surface Finish [CSYM]
- 32.0 Microinches Raised Surface
- Surface Treatment Document And Classification [STDC]
- Qq-P-35,Type 4 Fed Spec Single Treatment Response Overall
- Surface Treatment [SFTT]
- Passivate Overall
DLA Procurement Analysis 3110-01-342-0424
Management Data 3110-01-342-0424
Similar Supply Items to 3110-01-342-0424
Freight Information 3110-01-342-0424
3110-01-342-0424 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 114820. A Sub NMFC of X. It has a NMFC Description of BEARINGS/BUSHINGS NOI BALL/ROLLER. 3110-01-342-0424 is rated as class 77.5 when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 58860 which rates the freight between FCL and LCL. 3110-01-342-0424 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 742 for ocean manifesting and military sealift. 3110-01-342-0424 is not classified as a special type of cargo when transported by water. 3110-01-342-0424 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
