3110-01-275-8657
Cylindrical Roller Bearing
3110012758657 012758657 DW-37-70D-172 22319EAS.M.C3
A nonadjustable roller bearing consisting of a single or multiple-row of hardened cylindrical rollers and a retainer used with or without inner or oute r rings. Excludes BEARING, ROLLER, AIRFRAME. View more Cylindrical Roller Bearing
May 2023
1
Marketplace 3110-01-275-8657
Request a Quotation from participating marketplace vendors
Related Documents 3110-01-275-8657 1+ Documents (More...)
BUY NE FedMall Updated Every Day 22319EAS.M.C3 RQST NE Updated Every Day 3110-01-275-8657 RQST
NE Updated Every Day 3110-01-275-8657 RQST Updated Every Day 3110-01-275-8657 RQST NE Related Documents
Restrictions 3110-01-275-8657
3110-01-275-8657 is a Cylindrical Roller Bearing that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
Import and Export 3110-01-275-8657
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 3110-01-275-8657
- US Navy (N9BG)
- Effective Date:
- 1 Feb 2005
- Former MOE Rule:
- N9GD
- Supplementary Collaborators:
- GTHD
Approved Sources 3110-01-275-8657
- Part Number
- Manufacturer
- Status
- DW-37-70D-172
- Manufacturer
- 67121 - Mcelroy Marine Machinery (Active)
- Primary Buy
- Primary Buy
- 22319EAS.M.C3
- 43991 - Fag Bearings Corporation (Active)
- Secondary Buy
- Secondary Buy
Datasheet 3110-01-275-8657
- Characteristic
- Specifications
- FIIG
- Specifications
- A044A0
- Material [MATT]
- Steel Comp E52100 Overall

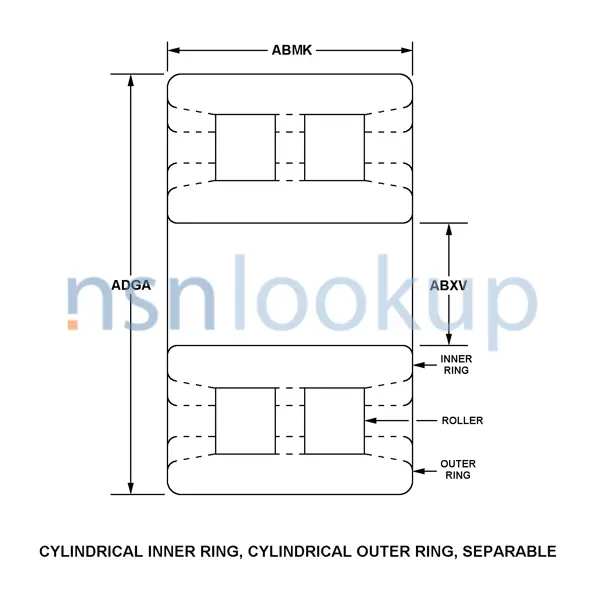

- Style Designator [STYL]
- Cylindrical Inner Ring, Cylindrical Outer Ring, Separable
- Overall Width [ABMK]
- 67.0 Millimeters Nominal
- Bore Diameter [ABXV]
- 95.0 Millimeters Nominal
- Overall Outside Diameter [ADGA]
- 200.0 Millimeters Nominal
- Bore Shape [AGZD]
- Straight
- Surface Finish [AGYE]
- Ground
DLA Procurement Analysis 3110-01-275-8657
Management Data 3110-01-275-8657
Navy
- Cognizance:
- 9B
- Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
Similar Supply Items to 3110-01-275-8657
Freight Information 3110-01-275-8657
3110-01-275-8657 has freight characteristics managed by the Southwestern Power Administration.It has a National Motor Freight Classification (NMFC) of 114800. A Sub NMFC of X. It has a NMFC Description of BEARING,ROLLER,THRUST. 3110-01-275-8657 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 58850 which rates the freight between FCL and LCL. 3110-01-275-8657 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 742 for ocean manifesting and military sealift. 3110-01-275-8657 is not classified as a special type of cargo when transported by water. 3110-01-275-8657 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 3110-01-275-8657
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- --
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- --
- --
- Bare Metal Item
- 2lb or less, one dimension 2" or less, other dimensions less than 24"
- Above 110G
- Special Requirement
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- 1
- --
- --
- --
- --
- Any Suitable Process
- --
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- --
- --
- --
- --
- --
- No special marking
- --
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- PPP-B-566, PPP-B-676, or ASTM-D5118, Folding, Setup or Fiberboard Box
Contracting Technical Data File (CTDF) 3110-01-275-8657 October 2021
Criticality and Quality
- Critical Item Code:
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- N
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
