3110-01-207-0100
Bearing Retaining Plate
3110012070100 012070100 3862370-2
A comparatively flat rigid item, with or without a centrally located aperture, designed to hold an annular bearing or a sleeve bearing in a fitted inclosure. It must have drilled and/or tapped holes for mounting purposes. Excludes END BELL, ELECTRICAL ROTATING EQUIPMENT. View more Bearing Retaining Plate
May 2023
4
Marketplace 3110-01-207-0100
Request a Quotation from participating marketplace vendors
Related Documents 3110-01-207-0100 1+ Documents (More...)
BUY NE FedMall Updated Every Day 3110-01-207-0100 RQST NE Updated Every Day 3110-01-207-0100 RQST
Updated Every Day 3110-01-207-0100 RQST NE Related Documents 3110-01-207-0100 1+ Documents ( More...
Restrictions 3110-01-207-0100
3110-01-207-0100 is a Bearing Retaining Plate that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. This item has been confirmed as a Critical Munitions List Item or a Sensitive Commerce Control List Item and cannot be in the possession of any party anywhere in the World who is not an authorized NATO Government. Any other possessor of this item should mutilate it now as possession violates international and local laws. This item is a confirmed Commerce Control List Item (CCLI). This item is not suspected to be hazardous. This item does not contain a precious metal.
Import and Export 3110-01-207-0100
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 3110-01-207-0100
- US Air Force (FUGG)
- Effective Date:
- 1 Jul 2006
- Former MOE Rule:
- FUCX
Approved Sources 3110-01-207-0100
- Part Number
- Manufacturer
- Status
- 3862370-2
- Manufacturer
- 99193 - Honeywell International Inc. (Active)
- Primary Buy
- Primary Buy
Datasheet 3110-01-207-0100
- Characteristic
- Specifications
- FIIG
- Specifications
- A093A0
- Distance From Horizontal Centerline To Center Of Right Hole [CWJN]
- 1.542 Inches Nominal
- Distance From Vertical Centerline To Center Of Right Hole [CWHW]
- 1.542 Inches Nominal
- Ear Radius [ADPG]
- 0.410 Inches Nominal
- End Item Identification [AGAV]
- B-1B Acft
- Aperture Diameter [ABVL]
- 2.562 Inches Minimum And 2.563 Inches Maximum
- Counterbore Depth [CWHX]
- 0.429 Inches Minimum And 0.431 Inches Maximum
- Counterbore Diameter [CWGF]
- 3.681 Inches Minimum And 3.683 Inches Maximum
- Cross-Sectional Shape Style [AAGR]
- Counterbored W/ Aperture
- Distance Between Holes Along Length [ADNY]
- 3.084 Inches Nominal
- Distance Between Holes Along Width [ADNZ]
- 3.084 Inches Nominal
- Material [MATT]
- Magnesium Alloy Overall
- Minor Thickness [ABMB]
- 0.240 Inches Minimum And 0.260 Inches Maximum
- Mounting Hole Arrangement Style [ADFU]
- Four Holes
- Mounting Hole Diameter [ABTB]
- 0.218 Inches Minimum And 0.226 Inches Maximum
- Mounting Hole Type [CWJW]
- Round, Unthreaded
- Outside Diameter [ABKV]
- 4.330 Inches Nominal
- Overall Thickness [ADUM]
- 0.669 Inches Minimum And 0.791 Inches Maximum

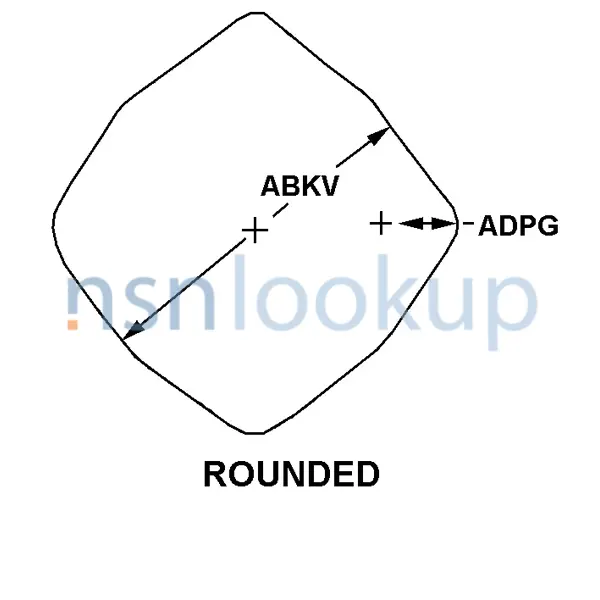

- Style Designator [STYL]
- Rounded
Weapon Systems (WSDC) 3110-01-207-0100
DLA Procurement Analysis 3110-01-207-0100
Management Data 3110-01-207-0100
Similar Supply Items to 3110-01-207-0100
Freight Information 3110-01-207-0100
3110-01-207-0100 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 106140. A Sub NMFC of X. It has a NMFC Description of PLATE/SHEET NOI I/S GALVANIZED ETC. 3110-01-207-0100 is rated as class 50 when transported by Less-Than Truckload (LTL) freight. 3110-01-207-0100 is rated as class 50 when transported by Less-Than Carload (LCL) rail or ocean freight. It has a Uniform Freight Classification (UFC) number of 54590 which rates the freight between FCL and LCL. 3110-01-207-0100 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 576 for ocean manifesting and military sealift. 3110-01-207-0100 is not classified as a special type of cargo when transported by water. 3110-01-207-0100 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 3110-01-207-0100
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- --
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- --
- --
- Plated/Coated Item
- 2lb or less, one dimension 2" or less, other dimensions less than 24"
- Above 110G
- No Requirement
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- 1
- --
- --
- --
- --
- Any Suitable Process
- --
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- No Requirement
- --
- --
- --
- PPP-B-566, PPP-B-676, or ASTM-D5118, Folding, Setup or Fiberboard Box
- No special marking
- --
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- --
- No Requirement
